Description

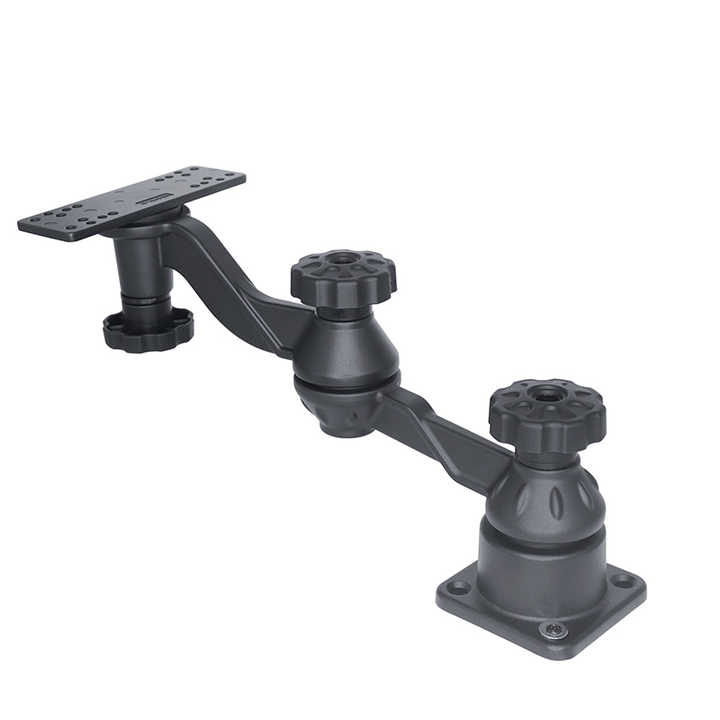

The HDMount Horizontal Swing Arm provides maximum structural extension and multi-point articulation for vehicle cabins and industrial plant where standard ball-and-socket arms do not offer adequate reach. Built with a heavy-duty mechanical linkage that extends up to 372 mm, it bridges the span between horizontal console mount points and the operator’s line of sight without introducing unwanted vibration or sag.
Designed with a square horizontal base plate (88.5 × 88.5 mm), it bolts down directly onto flat dashboards, engine humps, workbenches, and overhead console ledges using M8 fasteners. The equipment side features a 158 × 51 mm horizontal mounting plate pre-drilled with five distinct M5 screw patterns to support a broad array of monitor brackets, docks, and terminal cradles. Featuring independent 360° rotation across each articulation joint, operators can easily pull the screen forward for immediate interaction, adjust viewing angles, and stow the assembly neatly against the console when not in use.
Key Features
- Extended Reach (Max. 372 mm Extension): Provides up to 372 mm of articulated extension to position screens comfortably clear of dash contours, switchgear, and control levers.
- Dedicated Flat-Surface Base: Square 88.5 × 88.5 mm base plate engineered for high-strength horizontal bolting using an M8 four-bolt pattern.
- 360° Joint Rotation: Full rotational freedom at each pivot point enables smooth horizontal swinging, fine angular adjustment, and compact stowing.
- Multi-Pattern Equipment Plate: 158 × 51 mm top plate incorporates five pre-drilled layouts to accommodate a wide variety of commercial displays and telematics housings.
- High Load Capacity & Rigidity: Cast alloy construction resists sagging and excessive screen wobble under heavy dynamic vehicle vibration and rough terrain jarring.
- Commercial Vehicle & Plant Ready: Built to endure demanding environments across civil earthmoving, transport fleets, agriculture, material handling, and marine vessels.
