Description

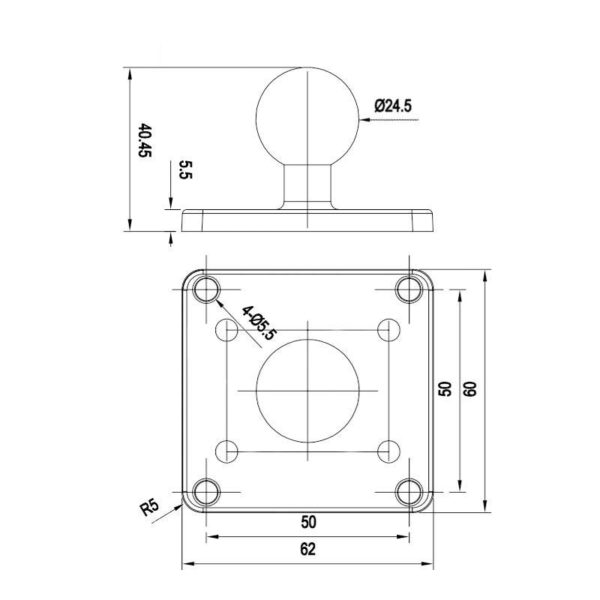

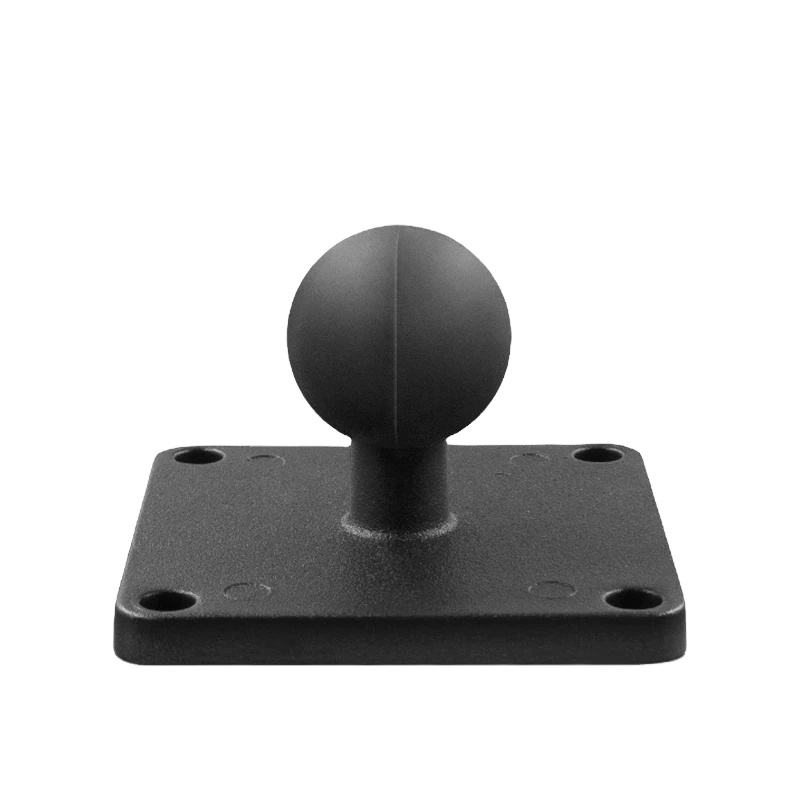

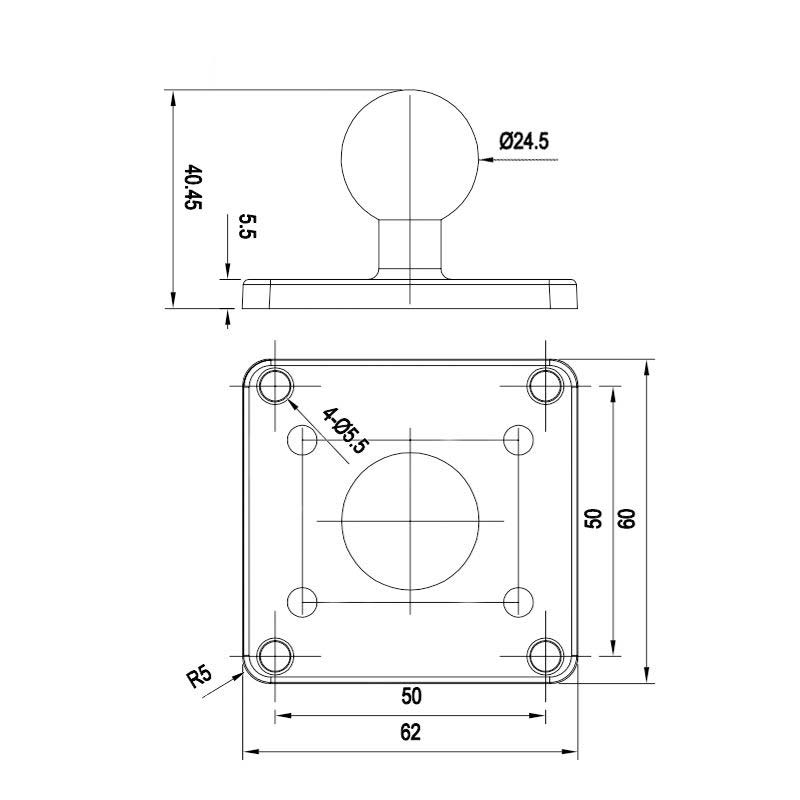

The HDMount 60 × 62 mm Plate (1″ Ball) provides a rigid, low-profile interface for securing in-cab monitors, telematics brackets, device cradles, and camera equipment. Featuring a flat 60 mm × 62 mm footprint with a standard 50 × 50 mm 4-hole screw pattern, it functions seamlessly as either a surface-mounted anchor base (screwed into consoles, dashboards, or bulkheads) or as a direct-mount equipment adapter plate.
At the center of the plate is an industry-standard 1″ (B-size) rubberised ball, which absorbs high-frequency vibrations while integrating directly into any modular dual-socket connector arm. This allows operators to easily adjust, tilt, and swivel connected displays to the most ergonomic viewing angle in tight cab spaces.
Key Features
- Standard 50 × 50 mm Hole Pattern: Four pre-drilled screw holes spaced at 50 mm × 50 mm allow fast, direct installation onto equipment brackets or flat interior surfaces.
- Dual-Purpose Mounting: Can be permanently screwed to vehicle bodywork, dashboards, and pillars as a base, or fastened to the rear of device housings as a mounting adaptor.
- Standard 1″ B-Size Ball: Fully interchangeable with Viewtech HDMount connector arms, RAM Mounts (B-size), and third-party 1-inch ball-and-socket components.
- Heavy-Duty Build: Engineered from durable, corrosion-resistant materials suitable for demanding commercial transport, agriculture, material handling, and fleet environments.
