Description

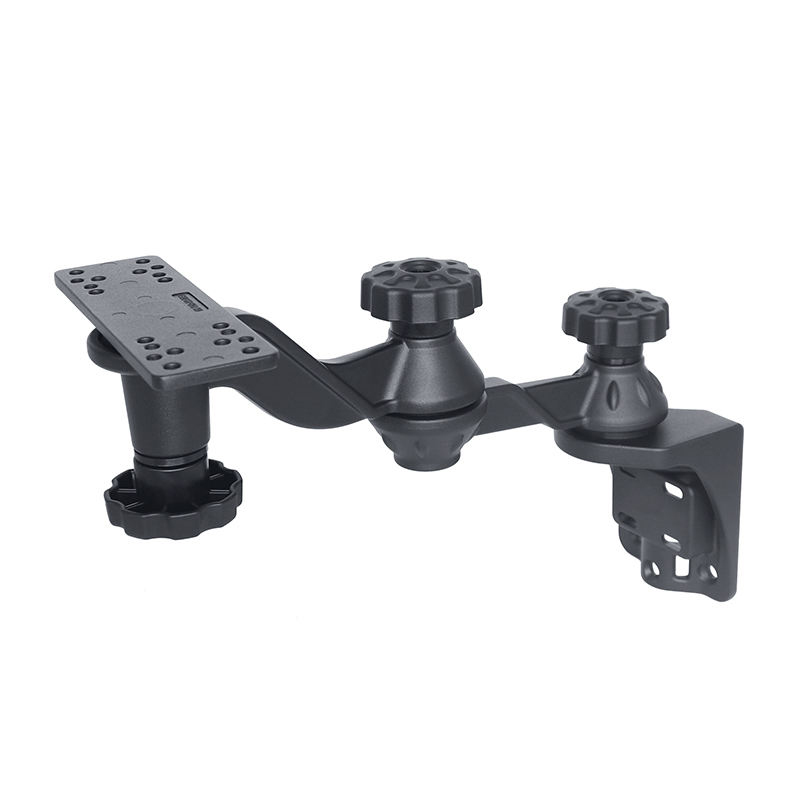

The HDMount Vertical Swing Arm provides maximum structural extension and multi-pivot flexibility for applications where standard ball connector arms lack sufficient reach. Featuring a robust articulated mechanical linkage that extends up to 372 mm, it bridges the distance between vertical structural pillars or bulkheads and the operator’s primary line of sight.
The mount utilizes a vertical base plate designed for dual-method installation: it can be hard-bolted directly to flat interior bulkheads or clamped to structural roll cages and round cab pillars using the included U-bolts. At the equipment end, a horizontal 158 × 51 mm multi-pattern plate provides a versatile interface for M5 bolts across five distinct hole patterns. With independent 360° rotation across each articulation joint, operators can smoothly swing, adjust, and lock heavy monitors into an ergonomic working position and swing them safely out of the way when entering or exiting the vehicle.
Key Features
- Extended Articulation (Max. 372 mm Extension): Delivers substantial forward reach to position screens clear of dashboard cowl contours, controls, and blind spots.
- Dual-Method Vertical Base: Designed to mount directly onto vertical flat surfaces (63.4 × 80.9 mm M8 pattern) or clamp around round bars and roll cages (max. Ø31 mm).
- Included Clamping Hardware: Supplied with dedicated U-bolts for immediate installation onto structural rails, forklift posts, and machine pillars.
- Comprehensive Multi-Pattern Equipment Plate: 158 × 51 mm top plate features five pre-configured screw layouts to fit various monitor cradles, terminals, and docks using M5 hardware.
- Independent 360° Joint Rotation: Full circular rotation at each pivot axis allows fine positional tuning and easy stowing when not in use.
- Heavy-Duty Commercial Construction: Cast alloy build provides extreme rigidity, eliminating droop and reducing equipment shake in demanding mining, civil, transport, and agricultural environments.
