Description

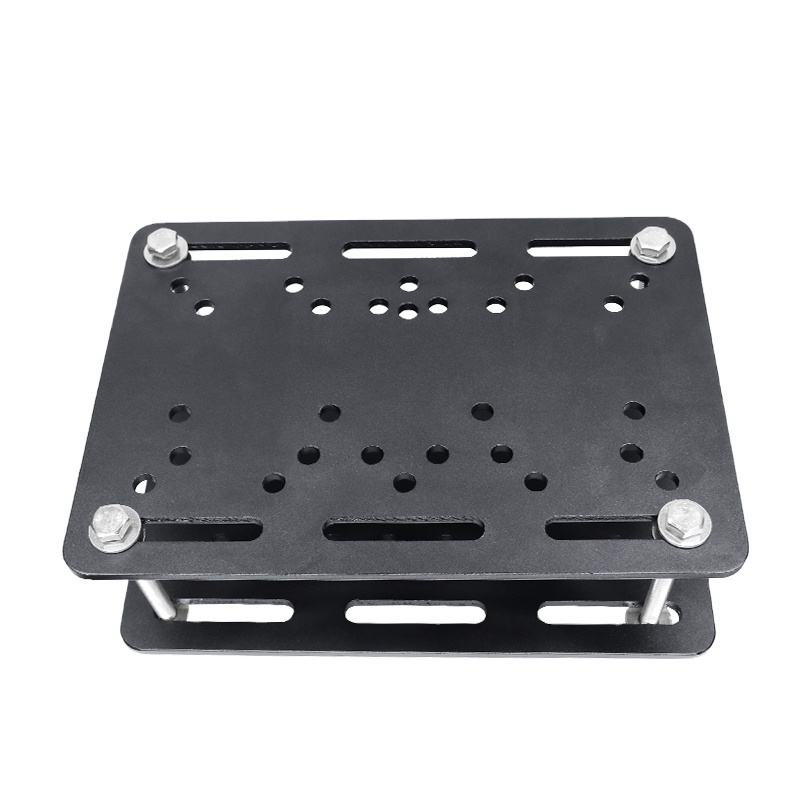

The HDMount Clamp Plate provides an expansive, heavy-duty mounting foundation designed specifically for machinery pillars, cab uprights, and certified roll-over protective structures (ROPS). Measuring 253 × 177 mm, it acts as a comprehensive equipment hub that allows operators and fleet upfitters to secure multiple monitors, rugged terminals, and safety systems without drilling, welding, or compromising certified vehicle framework (when clamped using a compatible pair of mounting rails).

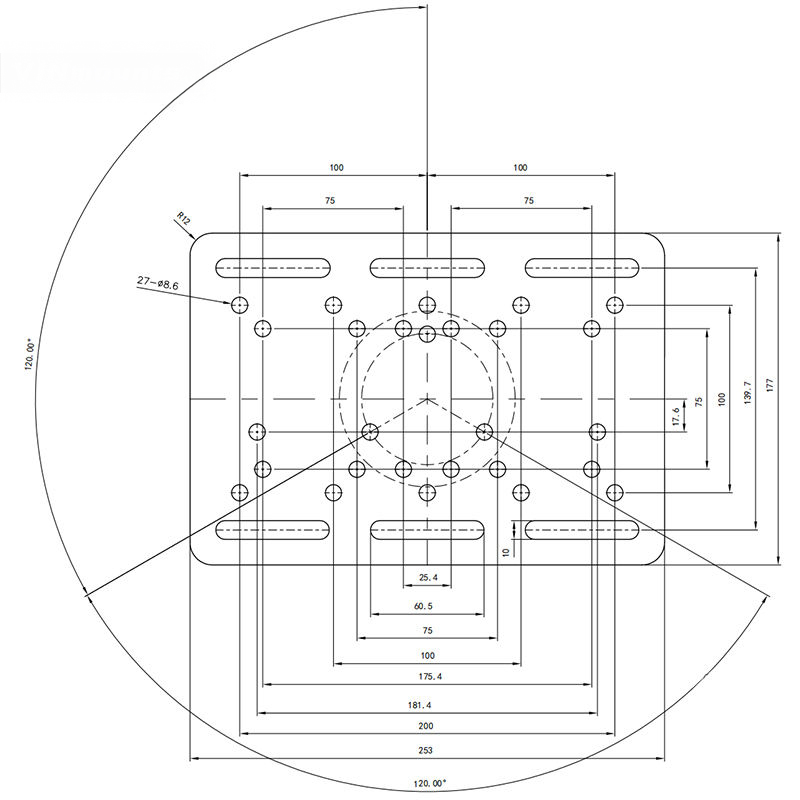

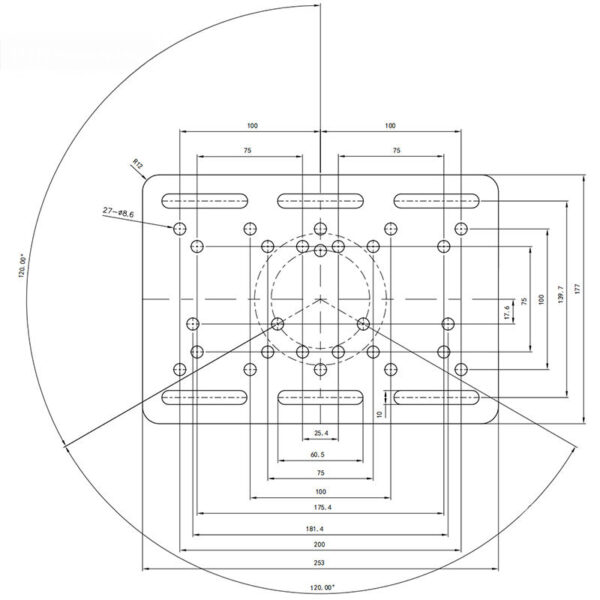

The plate is engineered to bridge seamlessly with both 1″ (B-size) and 1.5″ (C-size) HDMount ball systems, as well as direct-mounted VESA hardware. Its surface incorporates six elongated M10 slots for structural clamping alongside an extensive matrix of M8 mounting patterns. This includes multi-position 75 × 75 mm and 100 × 100 mm VESA patterns (with Left, Centre, and Right alignments), allowing installer flexibility to offset displays and controls away from blind spots, window latches, and machine levers.
Key Features

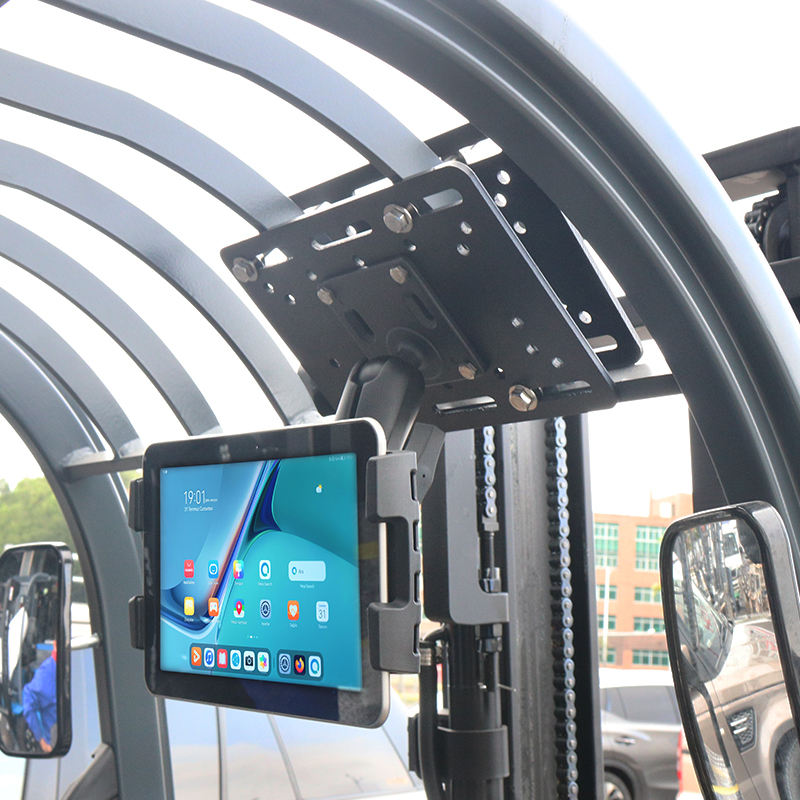

- Zero-Drill Machinery Mounting: Designed to clamp around vehicle pillars, ROPS/FOPS cabs, and overhead guards with mounting rails, eliminating the need to drill into certified structural steel.
- Dual Ball System Compatibility: Easily accommodates both 1″ (B-size) and 1.5″ (C-size) HDMount base plates, connector arms, and adapters.
- Offset VESA Configurations: Features 75 × 75 mm and 100 × 100 mm VESA hole sets pre-configured in Left, Middle, and Right alignments to fine-tune monitor offset and optimize cabin visibility.
- Comprehensive Screw Pattern Matrix: In addition to VESA, features 200 × 100 mm, 180 × 55 mm, 25 × 75 mm, and 60 mm triangular layouts to fit a broad range of industrial brackets and electronic enclosures.
- Heavy-Duty M10 Clamping Slots: 6 elongated perimeter holes accept M10 hardware for rigid clamping rail attachment.
- Industrial-Grade Construction: Manufactured from heavy-gauge, corrosion-resistant steel plate engineered to withstand severe engine vibration, off-road shock, and continuous commercial duty cycles.
