Description

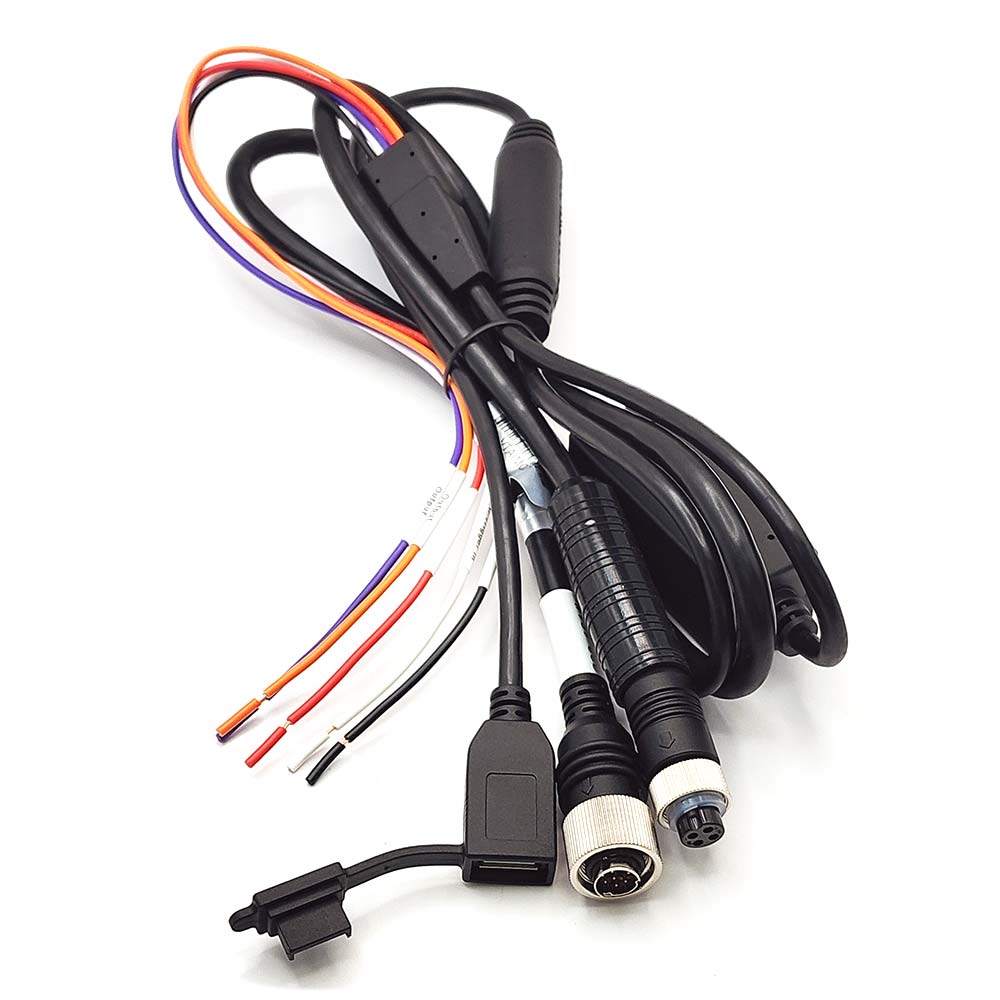

The VTAIMO3 is an accessory for the ViewtechAi™ VT639AI, 638AI, and 406AI series pedestrian detection cameras.
This loom allows the following additional features:
- 3 trigger outputs, one for each zone – this allows up to three individual zones to have individual controlling capabilities.
- An arming trigger input – Used to arm the AI detection algorithm. This allows the camera to detect only when this input is powered by an external trigger source.
- The VTAIMO3 includes a built-in USB port for easy configuration access. Ideal for static installs and plant with frequently changing detection requirements.
All ViewtechAi™ cameras require an 8-to-4-pin cable to connect to 4-pin AHD monitors and mobile digital video recorders. Here are the differences.
| VTAIMO3 | VTAIMO2 | VTAI5P | |
| USB | Built-in | Requires VTAIUSB | Requires VTAIUSB |
| Trigger Inputs | 1 | 1 | – |
| Trigger Outputs | 3 | 3 | 1 |
| Cable Length | 1 m | 1 m | 1 m |
| Optional Extra | Yes | Yes | Supplied with camera |
