Complete 360° Active Proximity Awareness for Industrial Machinery

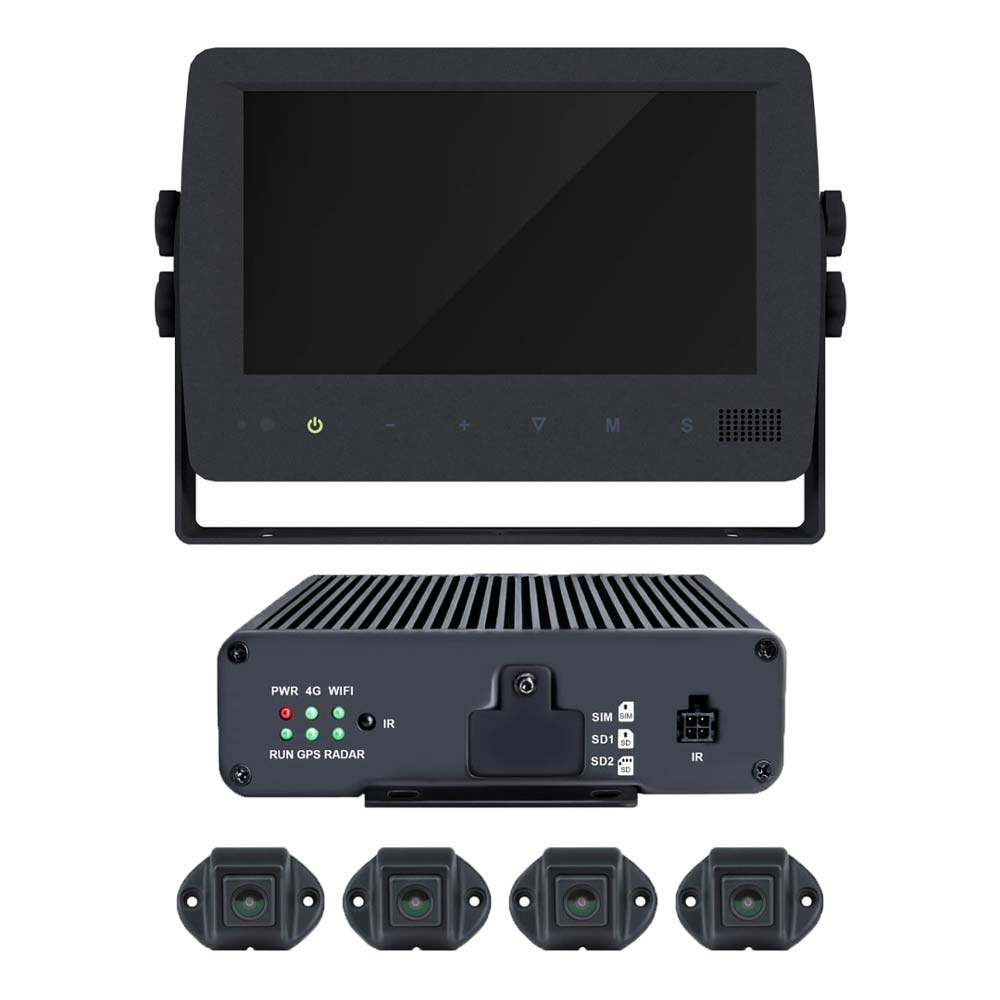

Prevent workplace accidents and protect ground personnel with the ViewtechAi™ 360° AI Pedestrian Detection System. Designed for heavy equipment operating in high-risk environments, this intelligent proximity detection system eliminates dangerous blind spots around mobile machinery.
Unlike conventional passive reversing cameras that depend entirely on constant driver monitoring, ViewtechAi™ actively scans the perimeter, estimates hazard proximity, and issues targeted alerts the moment a pedestrian enters a high-risk zone.
Why Choose a Merged 360° Camera View Over Split-Screen Monitors?

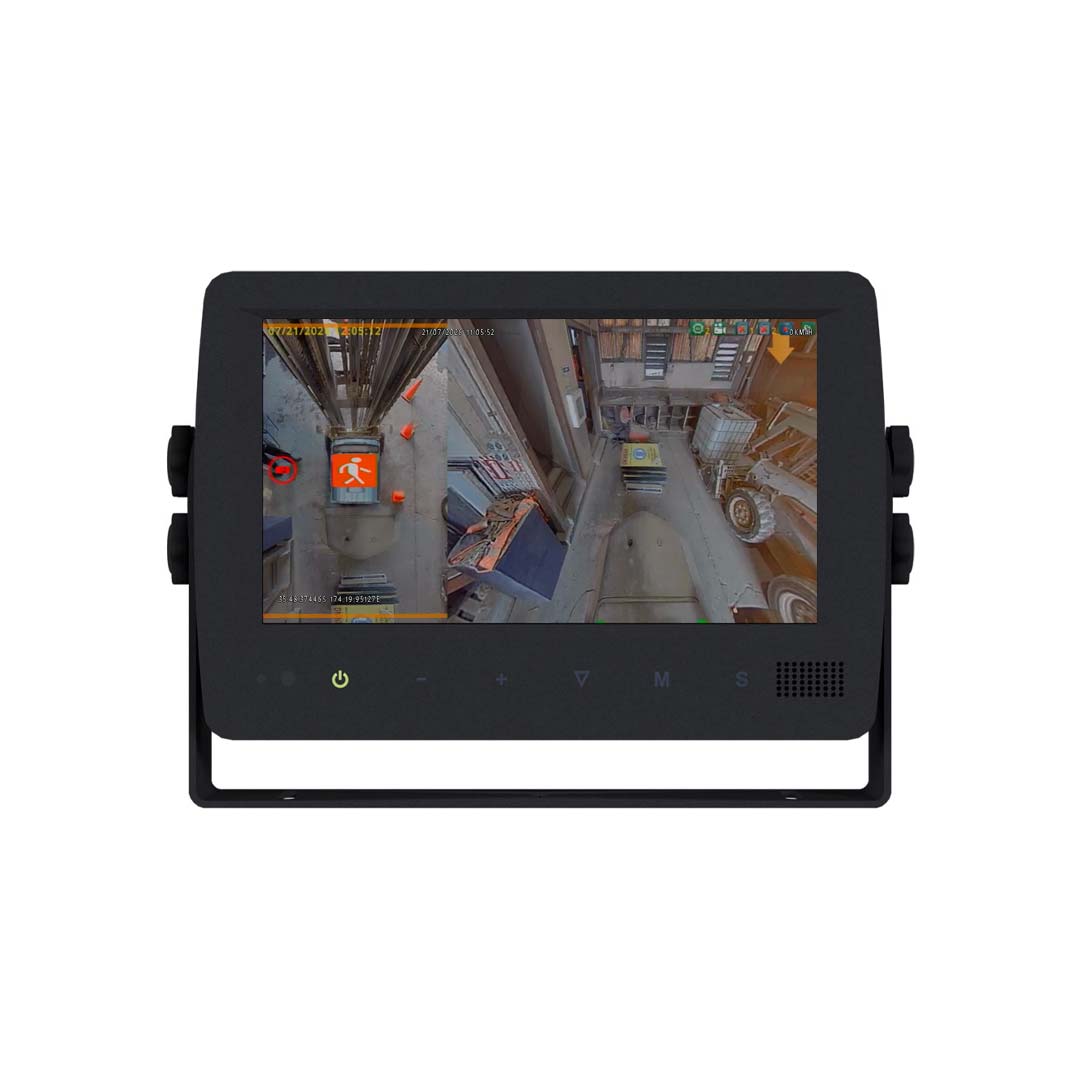

Traditional split-screen camera setups force operators to mentally stitch together four separate views while controlling complex machinery. ViewtechAi™ eliminates cognitive fatigue with a single, seamless top-down bird’s-eye view.
- Central Vehicle Reference: The machine remains centered on the display, making spatial relationships immediate and intuitive.
- Continuous Tracking: Personnel moving around the perimeter are tracked seamlessly without disappearing into screen seams or blind spots.
- At-a-Glance Audits: Operators can assess their entire working zone in a single glance, drastically cutting down reaction times.
- Articulated Machine Optimization: Essential for wheel loaders and dump trucks, the merged view maintains accurate perimeter coverage even as the machine pivots.
Deep-Learning Edge AI: Zero Alert Fatigue
Standard motion sensors frequently trigger false alarms from walls, stockpiles, cones, or passing equipment—causing drivers to ignore warnings. ViewtechAi™ uses advanced deep-learning algorithms specifically trained to recognize human forms.
Layered In-Cab & External Safety Responses
When a pedestrian enters the configurable 0.5m to 15m detection zone, the system triggers a coordinated response:
- Visual Highlighting & Distance Tracking: Detects human forms, highlights them on the monitor, and displays real-time distance estimations.

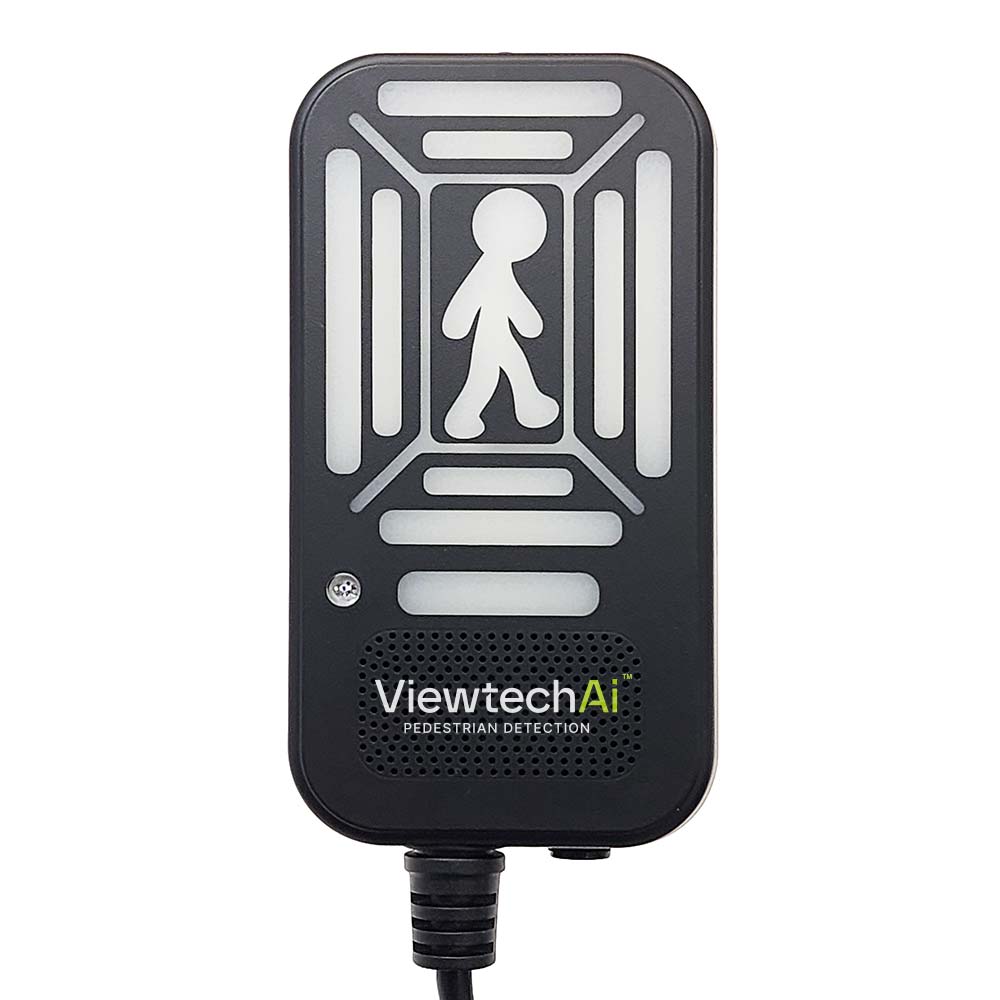

- Pedestrian Proximity Indicator (PPI): A dedicated, radar-style interface that alerts operators to hazard direction using intuitive LEDs and audible tones—no need to stare continuously at the screen.
- Intelligent External Pedestrian Alarm (VT-PA30): Triggers an optional high-intensity strobe and custom voice alarm outside the vehicle only when a person is detected, reducing unnecessary site noise.
- Engineered Machine Integration: Includes auxiliary electrical outputs to interface with site strobes, external alarms, or compatible vehicle speed-limiter controls.
Telematics & Driver Safety: Integrated with Fleetview™
Transform your in-cab camera system into an enterprise fleet management asset.
Cloud Event Recording & Automated Uploads
When integrated with Fleetview™, the system continuously records the complete 360° stitched view and individual camera channels. When an AI pedestrian proximity event is triggered, video is automatically uploaded to the cloud for near-miss analysis, accident investigations, and operator coaching.
Optional Driver State Monitoring (DSM)
Address risks inside the cab by adding an infrared, driver-facing DSM camera to detect unsafe operator behaviors, including:
- Operator fatigue, yawning, and extended eye closure
- Mobile phone distraction
- Seatbelt non-compliance and smoking
- Camera lens obstruction or tampering
Multi-Industry Fleet Applications
Target Machinery & Mobile Plant
Easily retrofits onto a wide variety of industrial and agricultural vehicles (10–32 VDC):
- Earthmoving & Heavy Equipment: Wheel loaders, front-end loaders, skid steers, excavators, telehandlers, articulated dump trucks, and compactors.
- Materials Handling: Forklifts (mitigating rear-end swing hazards), reach stackers, and container handlers.
- Agricultural Machinery: Combine harvesters, large tractors, sprayers, forage harvesters, and feed-out wagons.
- Specialized & Municipal Fleets: Refuse trucks, heavy commercial vehicles, buses, and road maintenance plant.
Supported Industries
- Quarrying, Mining, & Aggregate Production
- Civil Construction & Infrastructure
- Warehousing, Freight Terminals, & Ports
- Waste Management & Recycling Facilities
- Agriculture, Forestry, & Sawmills
