Description

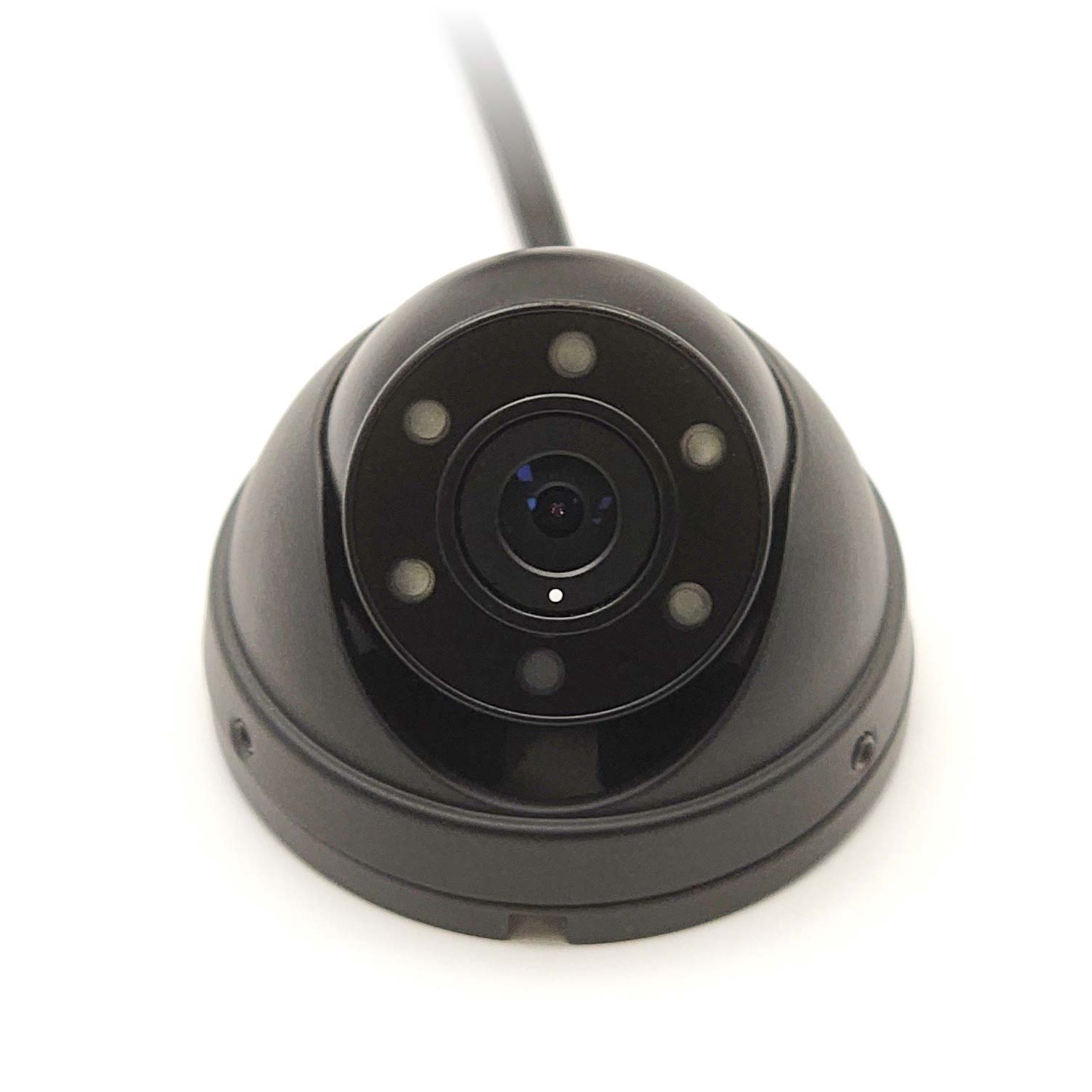

Viewtech Mini Side Mount Camera with 5 m lead.
Dimensions: 55 Ø × 45 mm (H)
Viewtech Mini Side Mount Camera
| Parameter | Specification / Value |
| Image Device |
1/3″ CMOS PC1058
|
| TV System |
PAL
|
| Effective Pixels |
PAL: 960 (H) × 576 (V)
|
| Sensing Area |
4.880 mm (H) × 3.670 mm (V)
|
| Scanning System |
2:1 Interlace
|
| Sync. System |
Internal
|
| Resolution |
600 TV Lines
|
| Horizontal Sync Frequency |
15.625 kHz (PAL)
|
| Vertical Sync Frequency |
50 Hz (PAL)
|
| Video Output |
1.0 Vp-p, 75 Ohm
|
| Gamma Consumption |
0.45
|
| AGC |
Auto
|
| S/N Ratio |
Better than 43.3 dB
|
| White Balance |
Auto
|
| Electronic Shutter |
1/50 – 1/100,000 Seconds
|
| BLC |
Auto
|
| Operating Temperature |
-20°C – 70°C, RH95% MAX
|
| Storage Temperature |
-40°C – 80°C, RH95% MAX
|
| Power Supply |
12 VDC
|
| Waterproof Rating |
IP69K
|
| Viewing Angle | 150° |
| Audio |
Yes
|
| Minimum Illumination |
0 Lux
|
| Night Vision Distance |
3–5m
|
| Heater |
No
|
| IR-CUT |
No
|
