Description

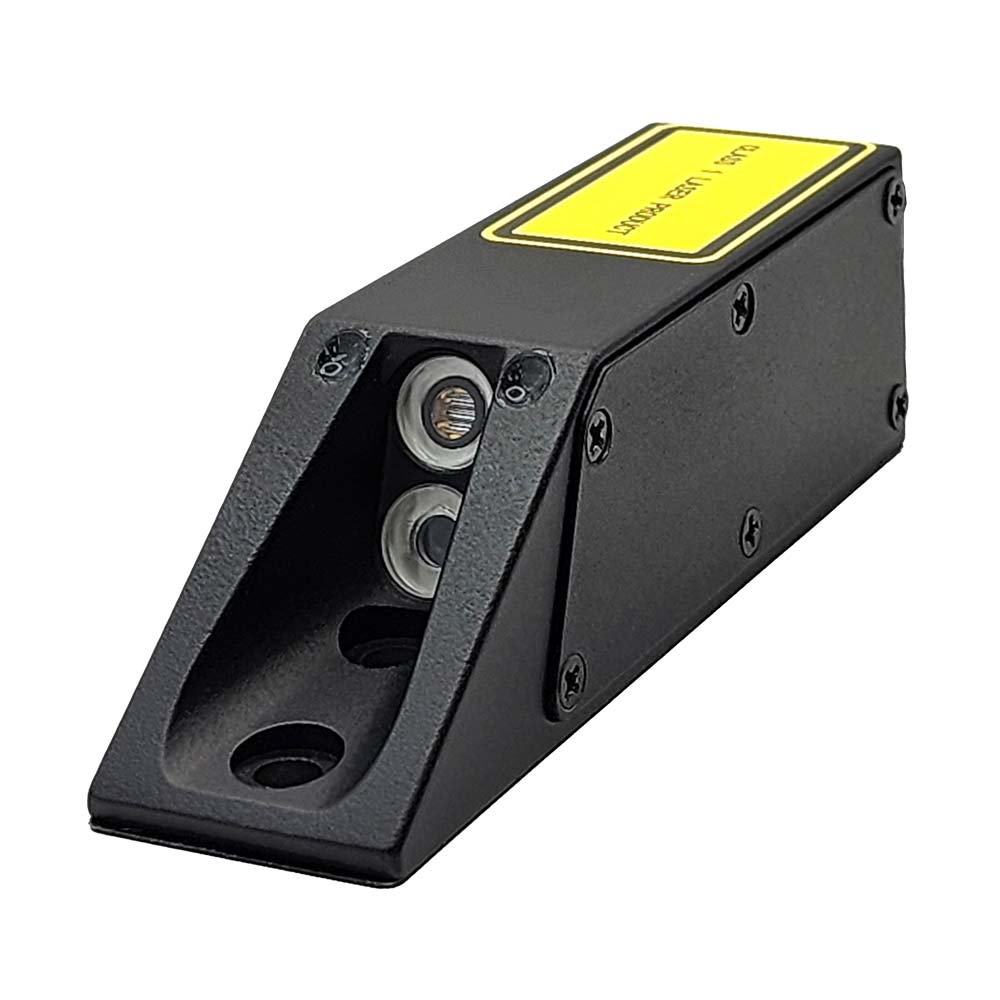

Improve safety and efficiency with the VT814LZ forklift camera. This wireless camera provides a real-time view of the area in front of your forks. The built-in laser guide allows precise positioning of forks and loads during operation. The camera is built to last with industrial grade ingress protection (IP69K) and vibration (ISO 16750-3 17.3G) ratings. With easy-install strong magnetic mounts and an optional rechargeable battery pack (VT509) the unit requires no additional wiring.
Features
- 1080P high definition
- 120M WiFi transmission distance
- Laser guide
- 62° viewing angle
- IP69K ingress protection
- ISO 16750-3 (Max. 17.3G) vibration rating
- Easy power supply by external battery
- Easy install magnetic mounting
Specifications
| Sensor | 1/2.9″ CMOS |
| Video resolution | 1920 (H) x 1080 (V) |
| Signal to noise ratio | 38dB |
| White balance | Auto |
| BLC | Auto |
| Dynamic range | 81dB |
| Operation frequency | 2403 – 2478 MHz |
| Transmission distance | up to 120 m |
| Receiving sensitivity | -78 dBm |
| Video codec | H.264 |
| Transmission power | FCC：≤ 26 dBm CE：≤ 20 dBm MIC：≤ 10 dBm |
| Modulation | FHSS |
| Delay | 130 ms |
| RF bit rate | 12 Mbps |
| Operating temp. & humidity | –20 ~ 70 ℃, RH 95% MAX. |
| Minimum illumination | 0 Lux / 0.1 Lux |
| Power supply | 10 – 32 VDC |
| Power consumption | Day: 1.8 – 2.5 W Night: 3.6 – 4.3 W |
| Night vision distance | 3 – 5 m |
| Waterproof rating | IP69K |
| Audio | No |
| Viewing angle | 62° |
| Heater | No |
| IR-cut function | No |
| Image mode | Mirror / Normal |
