Description

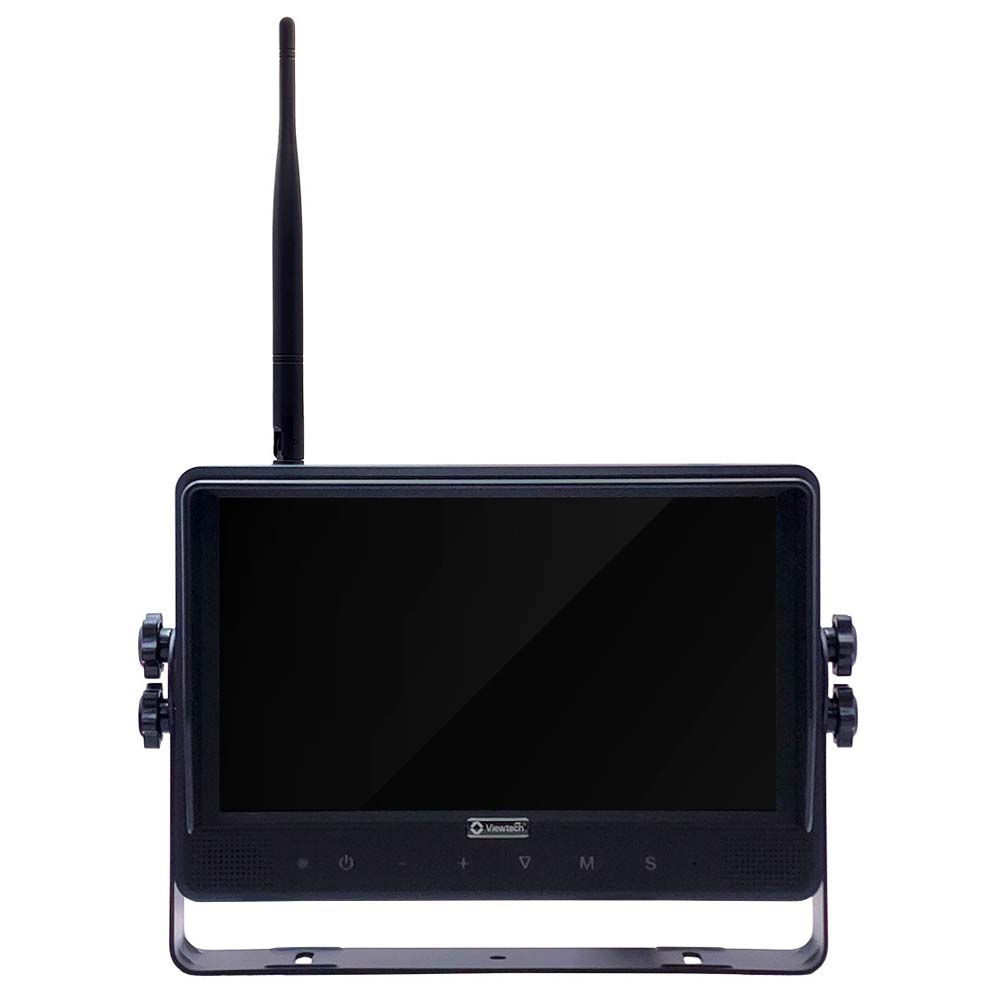

A heavy duty 9″ wireless quad view monitor. This monitor is compatible with the following cameras:
- VT871X
- VT814DW-1080
- VT814LZ
Specifications
| LCD Size | 9″ |
| Resolution | 1024 × 600 |
| Contrast | 600 : 1 |
| Brightness | 600 cd/m² |
| View angle | U: 85° | D: 85° | R/L: 85° |
| Aspect ratio | 0.2175 (W) × 0.2088 (H) |
| Channels | 4 channels |
| Operating frequency | 2400 ~ 2483.5 MHz |
| Receiving sensitivity | -78 dBm |
| Video mode | H.264 |
| Modulation | FHSS |
| Time delay | 200 ms |
| Transmission distance | Max. 300 m (clear line of sight) |
| Micro SD Card | Max. 128 GB |
| Power supply | 10 – 32 VDC |
| Power consumption | Max. 15 W |
| Loudspeaker | 1.5 W / 8 Ω |
| Operating temperature | -20 ~ 70 °C, RH 90% |
| Storage temperature | -20 ~ 80 °C, RH 90% |
