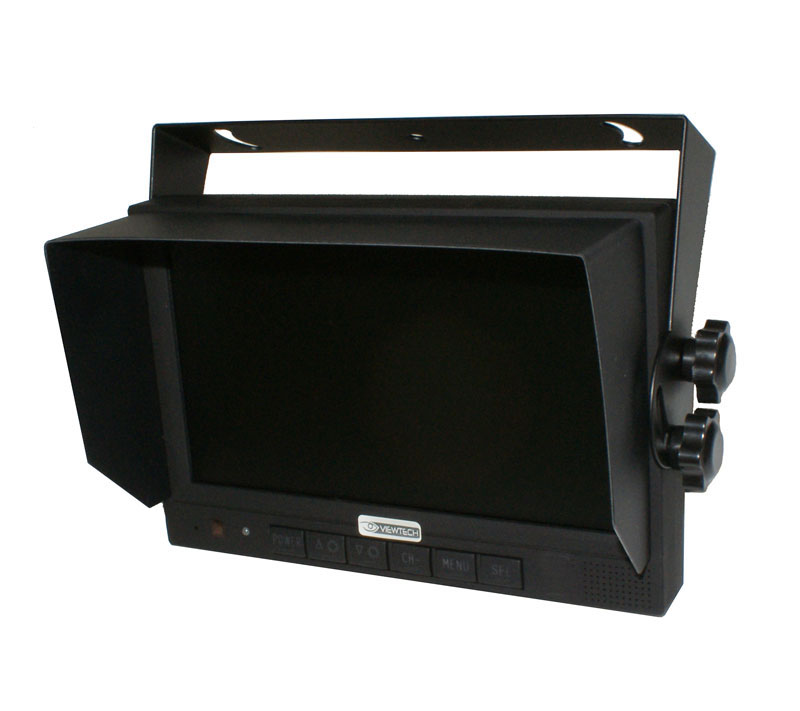

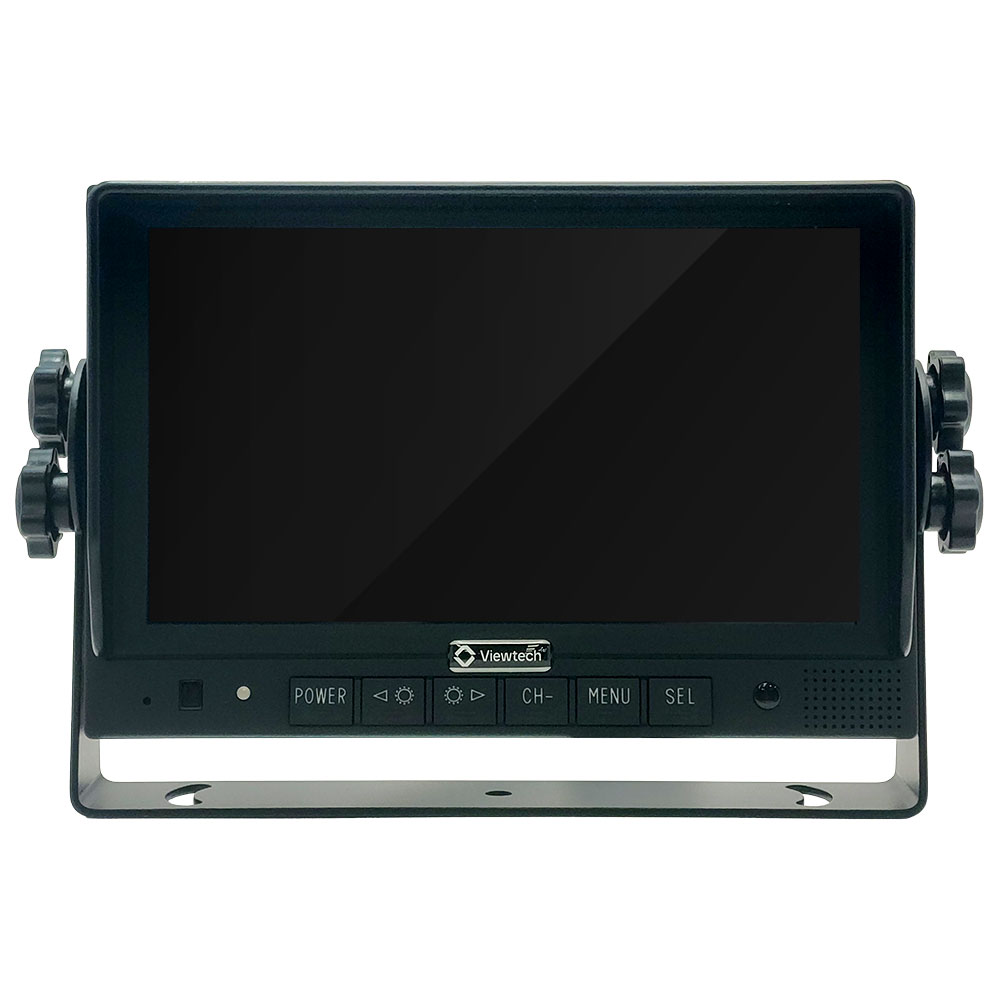

Viewtech 7″ Heavy Duty Vehicle Display Monitor

7″ HD Vehicle rated Monitor, 720P AHD, CVBS, 3x EzyConnect 4pin Camera Inputs. Heavy Duty Digital Hi-Res panel, Supports High Definition cameras.

More than 20 in stock

SKU: VT7HD-720 Categories: , Brand:


This monitor is hard wearing and vibration rated. Perfect for larger and heavy duty vehicles like refuse trucks, buses and RVs. It comes with a wide range of mounting options and can be mounted from the top. It has three video inputs via the cabling loom and one via an input on the front. Each of the cabling loom inputs also has a 12V power output which can power a corresponding 12V camera.

Wide Dynamic Input Voltage Range
Features well designed DC circuitry primarily designed for vehicle systems. A wide 10V-36V input range to handle voltage drops and spikes. Each camera output has smoothed 12V supply for perfect camera operation.

Supports High Definition Formats – AHD
VT7HD-720 supports CVBS (old school analogue), AHD 720p and AHD 1080p high definition formats. It is fully compatible with all Viewtech analogue and AHD cameras.

Wide Range of Industries
This monitor can be used across a wide range of industries and applications. These include manufacturing, engineering, mining, construction, forestry, agricultural, trucking plus many more.


  • monitor
  • wiring loom
  • dash mount
  • infrared remote control
  • U-Bracket (great for dash and overhead mounting)
  • flush mount kit
  • sun visor
  • manual
  • 1 x RCA cable adaptor


  • Four video inputs. Three via the rear cabling bundle and one via the front jack
  • high resolution digital monitor with superior 400mcd brightness
  • Each rear input also has a 12V output
  • Each rear input has a power sensing trigger wire which when taken to a positive voltage will automatically select that view (door view, reversing camera etc.)
  • 10V-32V dynamic voltage input range
  • High quality shock resistant construction
