Description

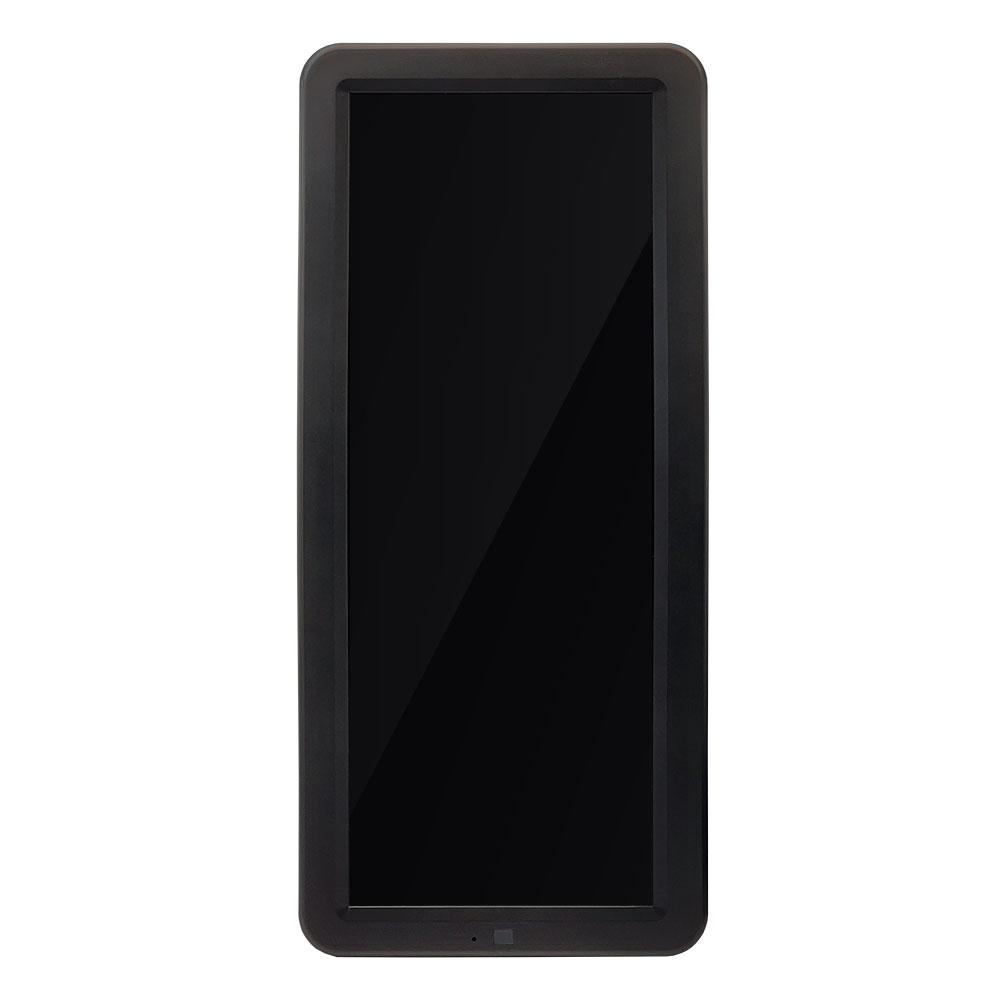

This monitor is designed to be used with the VT139HD-1080 Dual Lens Camera, as a digital wing mirror with blind spot coverage. This monitor can also be used with two separate 4-pin connector cameras.
This monitor is hard wearing and designed for use in transportation and mobile plant. Perfect for larger and heavy duty vehicles like refuse trucks, buses and RVs. It has two HD/SD analogue video inputs.
IPS Screen
Get a clearer view with a bright, high contrast display. Brightness 1000cd/m2, Contrast: 1000:1.
Analogue and AHD Inputs
VT12FHD-1080 will support AHD 720P, AHD 1080p as well as standard CVBS (composite) inputs via our heavy duty 4-pin camera system connector. We can also adapt these inputs out to BNC or RCA if required.
DVR
With an SD card slot, this monitor can operate as a simple video recorder. Recording options include auto startup recording and video length. For more advanced recording features, fleet management tools, live-view and GPS tracking check out our Fleetview Mobile DVR system.
Wide Dynamic Input Voltage Range
Features well designed DC circuitry primarily designed for vehicle systems. A wide 10-32 VDC input range to handle voltage drops and spikes. Each camera output has smoothed 12V supply for perfect camera operation.
Wide Range of Industries
This monitor can be used across a wide range of industries and applications. These include manufacturing, engineering, mining, construction, forestry, agricultural, trucking plus many more.
Included:
- Monitor
- Infrared remote control
- Mounting screws + allen key
- Manual
Not included:
- 75 × 75 mm Vesa mounting arm
Features:
- 2 analogue camera inputs – supporting CVBS, AHD 720P, AHD 1080P.
- Bright display: 1000cd/m2
- High contrast: 1000:1
- 12 VDC outputs for cameras
- Trigger wires for each camera with variable trigger delay
- 10 V – 32 V dynamic voltage input range
- Camera auto scan feature with variable duty cycle
- High quality shock resistant construction
