Description

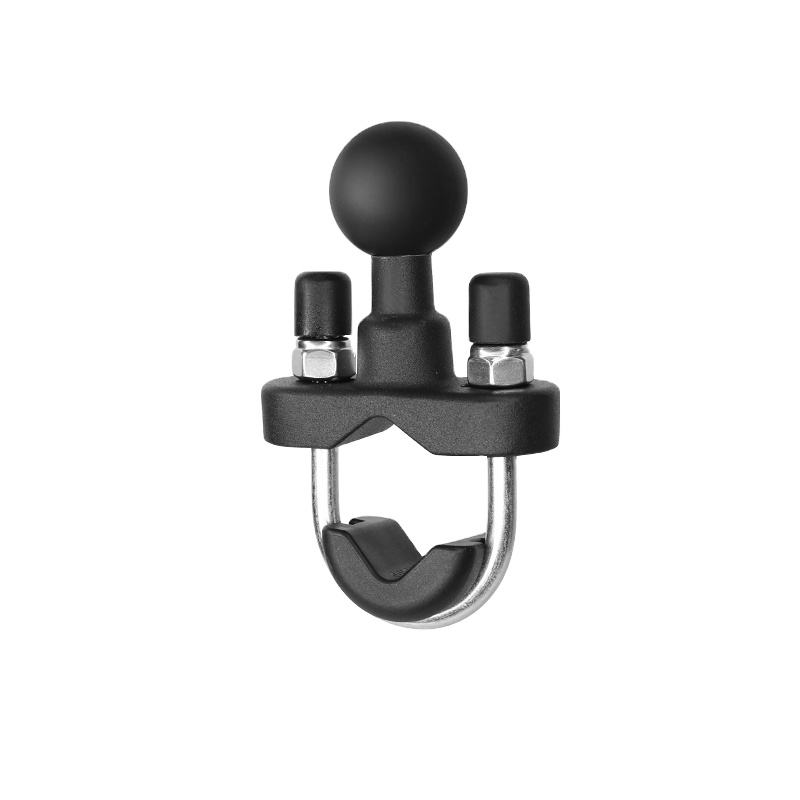

The HDMount U-Bolt Base (1″ Ball) provides a solid anchor point for commercial vehicle cabs, roll cages, warehouse racking, machinery handlebars, and agricultural equipment. Designed to fit tube diameters ranging from 13 mm to 31 mm, it comes supplied with two interchangeable U-bolt sizes (short and long) as well as an anti-slip nylon gasket that increases friction while protecting powder-coated or painted surfaces from metal-to-metal wear.
The kit is equipped with anti-slip locknuts and protective rubber bolt-end caps to ensure hardware stays tight and hazard-free in high-vibration vehicle cabins. Centred atop the base is an industry-standard 1″ (B-size) rubberised ball that connects seamlessly to any 1″ modular dual-socket extension arm, allowing operators to achieve ergonomic, 360-degree viewing angles in confined workspaces.
Key Features

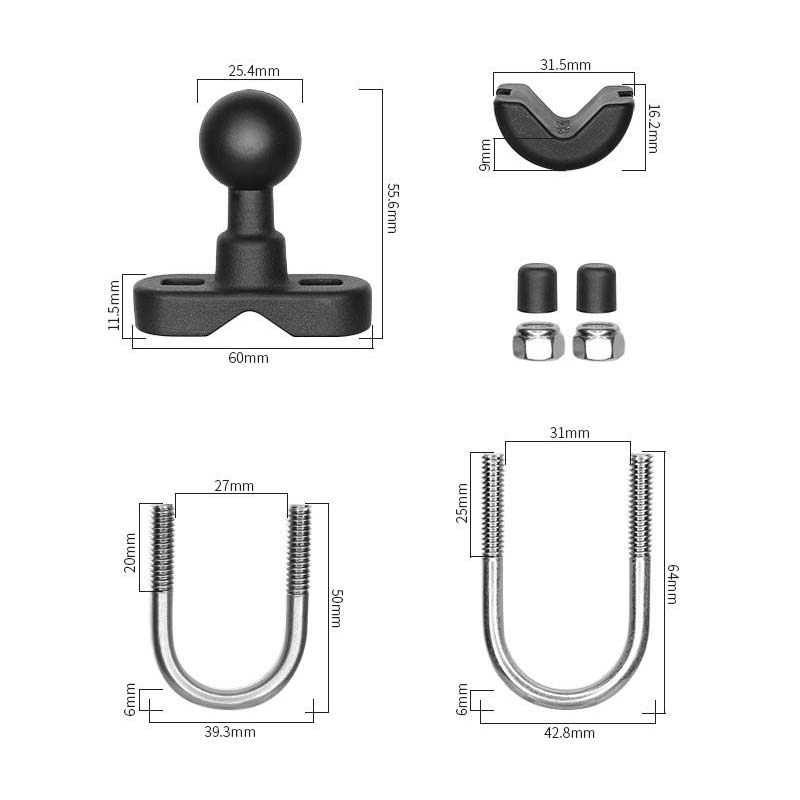

- Dual U-Bolt Sizing Included: Accommodates a wide range of rails and tubing right out of the box:
- Short U-Bolt: Fits Ø13 mm – 22 mm tubes
- Long U-Bolt: Fits Ø22 mm – 31 mm tubes
- Round & Square Profile Compatibility: Engineered to mount firmly around standard round pipes and bars as well as square rails and tubing.
- High-Friction Nylon Gasket: Cushions the mounting surface, prevents rotational slip under load, and guards against scratching or abrasion.
- Vibration-Proof Hardware: Outfitted with anti-slip nuts to prevent loosening from constant vehicle vibration, paired with protective rubber end covers for exposed bolt threads.
- Standard 1″ B-Size Ball: Fully interchangeable with Viewtech HDMount connector arms, RAM Mounts (B-size), and third-party 1-inch ball-and-socket components.
- Articulation: Rubber-coated ball supports 360-degree rotation and tilt adjustment.
