Description

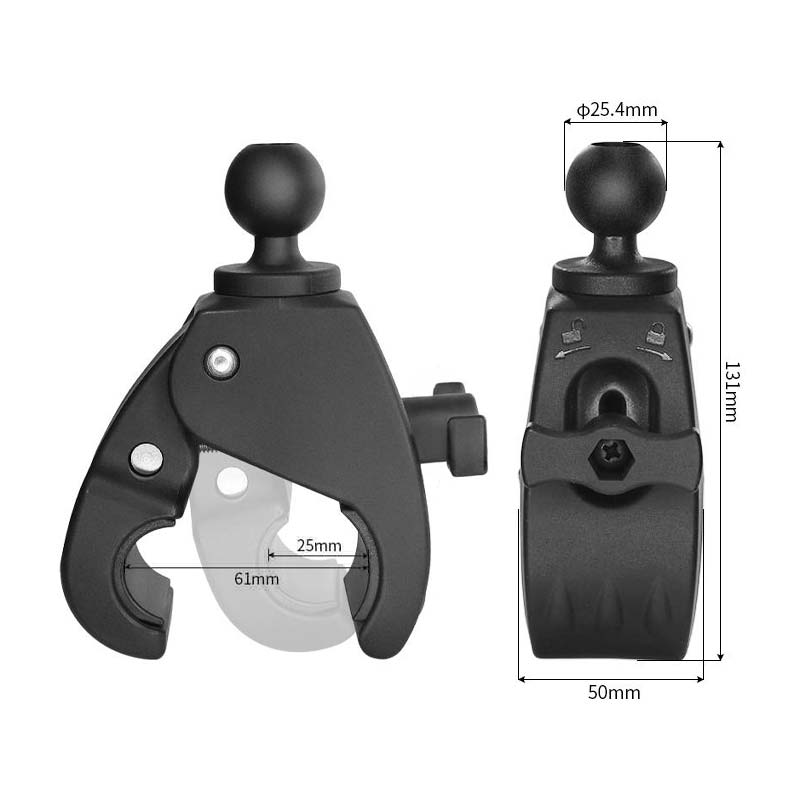

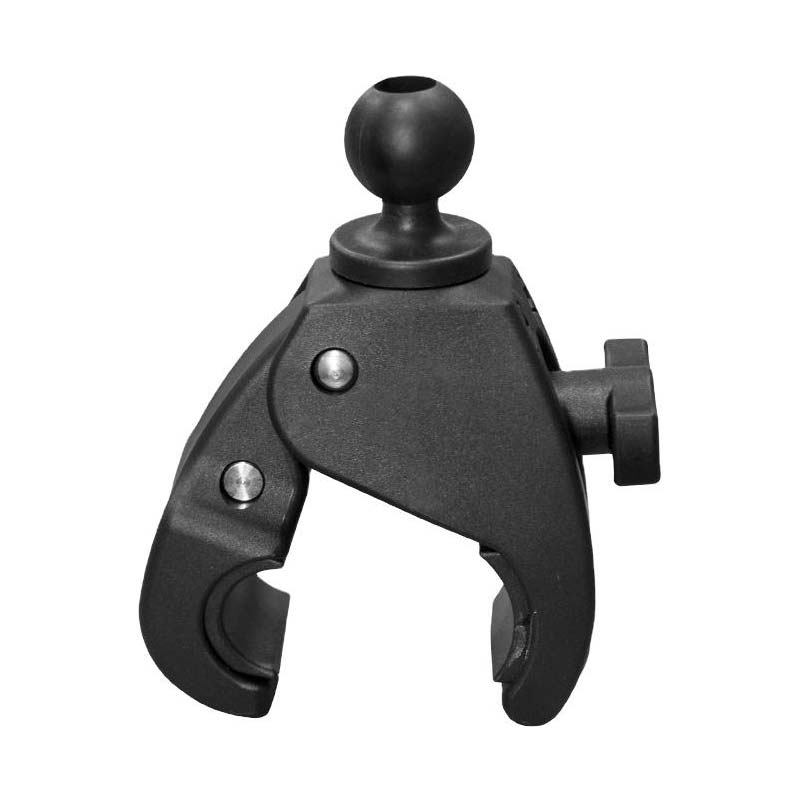

The HDMount Ø25.6 – 61 mm C-Clamp (1″ Ball) provides an ultra-rugged, no-drill mounting foundation for monitors, telematics displays, tablet holders, and camera equipment in harsh industrial and commercial vehicle environments. Engineered with a wide-reach, heavy-duty C-clamp jaw, it accommodates tube and pipe diameters ranging from 25.6 mm up to 61 mm, making it ideal for forklift overhead guards, ROPS/FOPS cab bars, machinery grab handles, and truck frame rails.
The clamp is equipped with internal protective rubber/composite padding to prevent marring, slipping, and metal-to-metal wear, while a heavy-duty threaded tension bolt ensures a rock-solid, vibration-proof grip under high dynamic loads. Centred on the bracket is an industry-standard 1″ (B-size) rubberised ball that integrates seamlessly into any modular dual-socket extension arm, allowing operators to achieve ergonomic, 360-degree positioning in tight cabin spaces.
Key Features
- Wide Clamping Capacity (Ø25.6 mm – 61 mm): Versatile jaw opening easily secures to a broad spectrum of round pipes, tubes, roll cages, warehouse racking, and squared structural frames.
- Non-Marring, High-Traction Grip: Integrated protective lining grips securely without scratching vehicle paintwork or powder-coated roll bars, resisting slip caused by engine vibration and rough terrain.
- Positive Threaded Locking: Heavy-duty threaded tightening bolt provides immense clamping pressure that won’t vibrate loose on rough tracks or industrial job sites.
- Standard 1″ B-Size Ball: Fully interchangeable with Viewtech HDMount connector arms, RAM Mounts (B-size), and third-party 1-inch modular mounting components.
- Zero-Drill Installation: Perfect for fleet vehicles, hired equipment, or certified ROPS frames where structural drilling is prohibited.
