Description

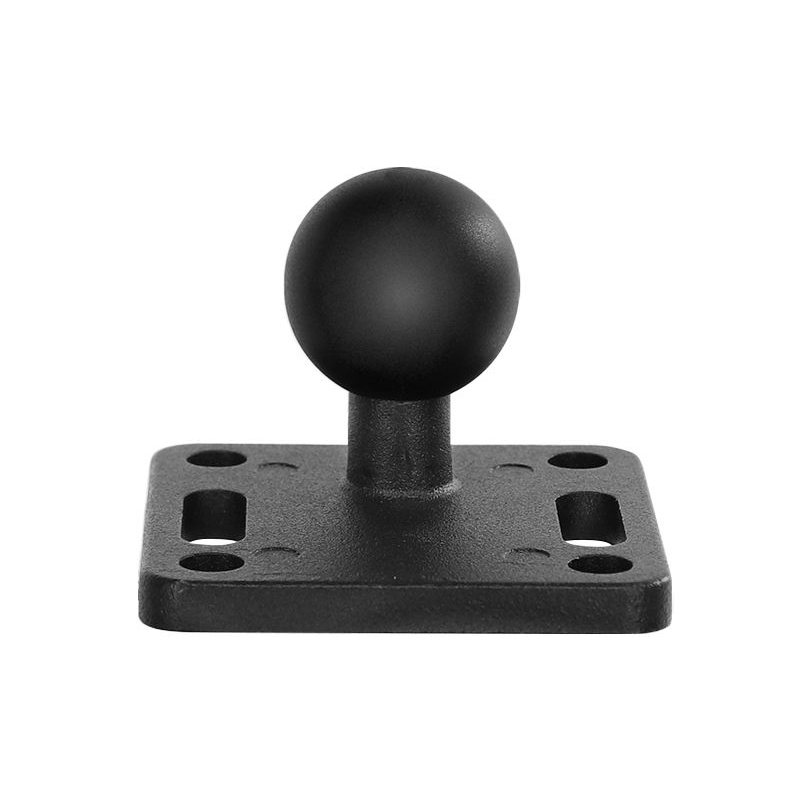

The HDMount 55 mm Square Plate (1″ Ball) provides a solid, low-profile interface for mounting in-cab equipment across commercial transport, agriculture, material handling, and industrial fleet vehicles. Featuring a flat 55 mm × 55 mm square footprint, it functions either as a permanent flat-surface base (bolted or screwed to dashboards, consoles, or bulkheads) or as a rear mounting adapter for compatible electronic brackets and cradles.

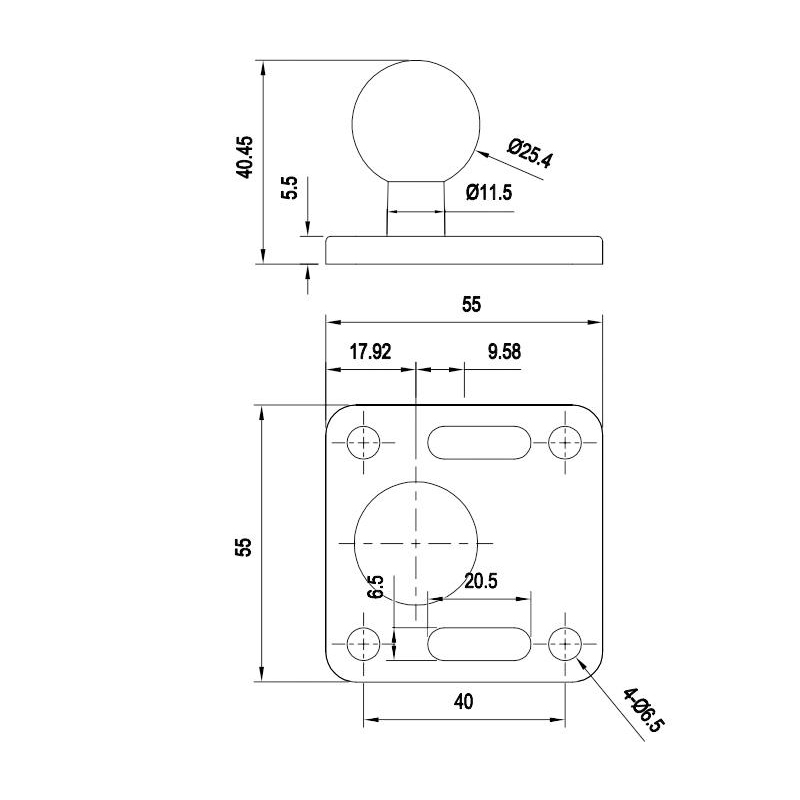

Engineered for broad mounting compatibility, the plate incorporates a standard 40 × 40 mm square 4-hole screw pattern alongside two elongated slots/holes, allowing for flexible bolt alignment and fine positional adjustments. Centred on the plate is an industry-standard 1″ (B-size) rubberised ball that dampens high-frequency vehicle vibrations. When connected to any modular 1″ dual-socket extension arm, it enables full 360-degree rotation and broad tilt articulation to achieve the optimal viewing angle.
Key Features
- 40 × 40 mm Square Hole Pattern: Features a standard 4-corner hole layout for direct mounting onto matching brackets and flat vehicle surfaces.
- Dual Elongated Adjustment Slots: Includes two elongated mounting holes for adjustable fastener alignment and quick hardware compatibility.
- Compact 55 × 55 mm Profile: Space-efficient square footprint designed to fit into narrow dashboard spaces, console panels, and pillar mounts.
- Standard 1″ B-Size Ball: Fully compatible with Viewtech HDMount connector arms, RAM Mounts (B-size), and third-party 1-inch ball-and-socket components.
- Dual-Purpose Functionality: Serves as a hard-mounted baseplate attached to vehicle interiors or as a device adapter plate attached to screens and cradles.
- Rugged Heavy-Duty Build: Engineered to withstand harsh commercial environments, temperature extremes, and prolonged UV exposure.
