Description

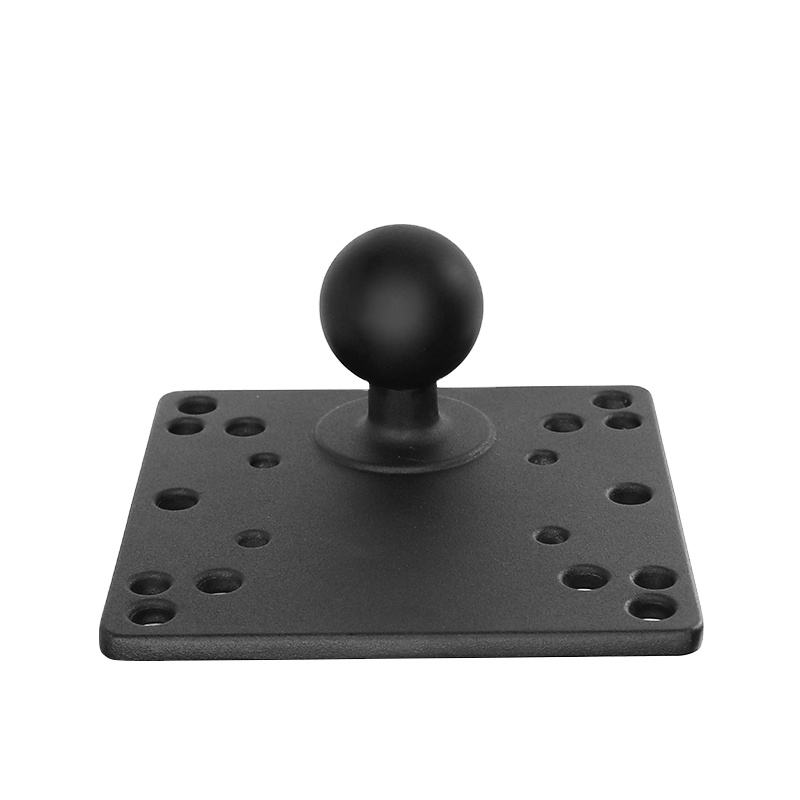

The HDMount 100 mm VESA Plate (1.5″ Ball) provides a broad, unyielding mounting interface designed for commercial transport, agricultural equipment, civil machinery, and material handling vehicles. Featuring a robust 120 × 120 mm square base, it bridges large LCD screens, rugged tablet cradles, and all-in-one telematics hardware into a modular ball-and-socket system.

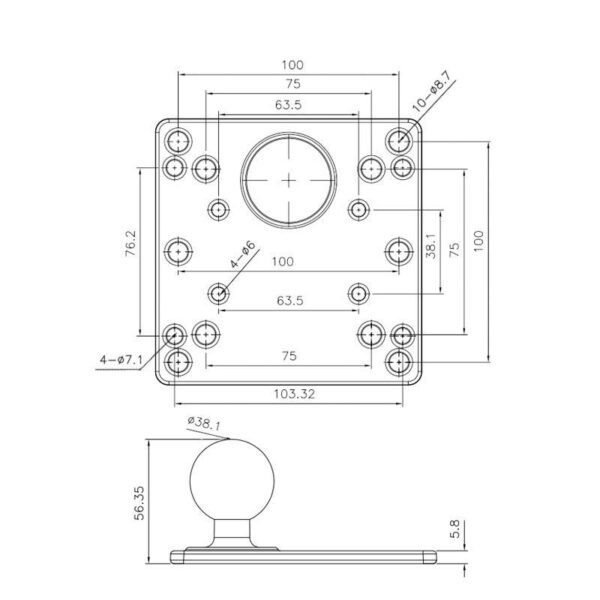

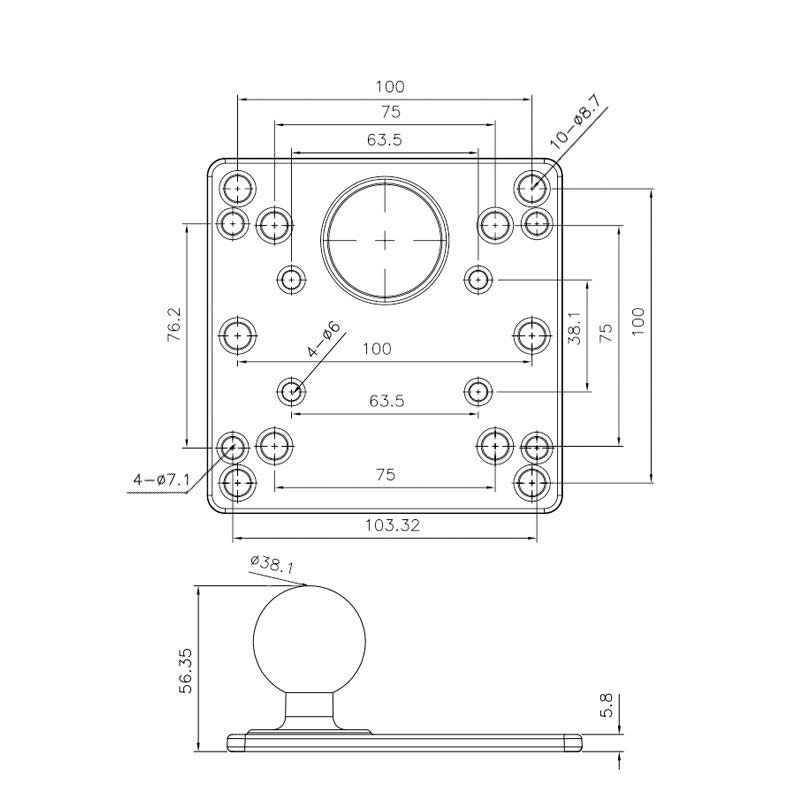

Engineered for broad versatility, the plate incorporates dual standard VESA patterns (100 × 100 mm and 75 × 75 mm) alongside dual rectangular patterns (103.3 × 76.2 mm / 4 × 3″ and 63.5 × 38.1 mm / 2.5 × 1.5″). Centred on the plate is an industry-standard 1.5″ (C-size) rubberised ball, providing the superior holding force and payload threshold needed to prevent screen slippage, drooping, or angle drift under intense vehicle vibration and rough terrain jarring.
Key Features
- Multi-Pattern Mounting Interface: Pre-drilled with four distinct hole configurations to fit standard VESA displays as well as commercial brackets without custom drilling.
- 100 × 100 mm & 75 × 75 mm VESA Compatibility: Designed to accept M7 hardware for standard VESA display mounting points.
- Dual Rectangular Patterns: Features 103.3 × 76.2 mm (4 × 3″) and 63.5 × 38.1 mm (2.5 × 1.5″) layouts compatible with M6 bolts.
- Heavy-Duty 1.5″ C-Size Ball: Built for substantial payloads, offering high clamping resistance and stability under heavy dynamic vehicle loads.
- Solid 120 × 120 mm Square Base: Distributes weight evenly across the rear panel of large displays to reduce mechanical stress and fatigue on display chassis.
- Full Modular Compatibility: Connects seamlessly with all Viewtech HDMount 1.5″ dual-socket connector arms, RAM Mounts (C-size), and third-party C-size components.
