Description

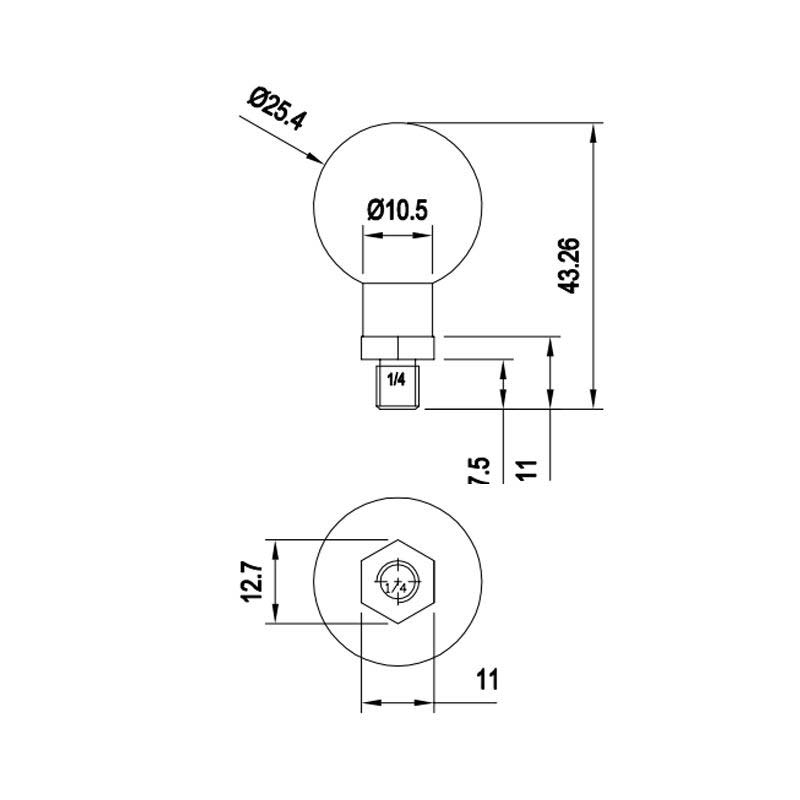

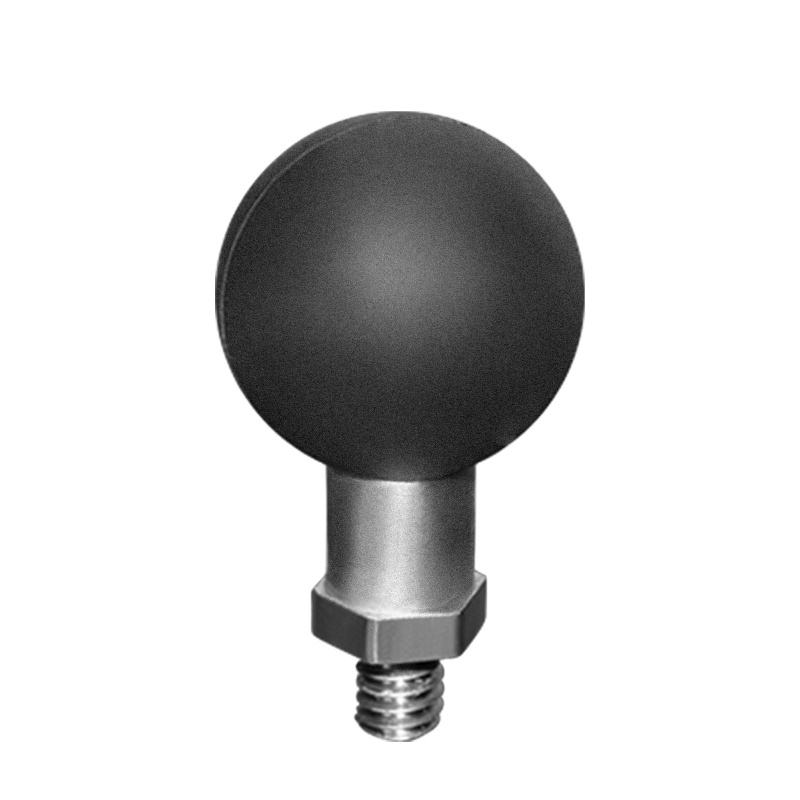

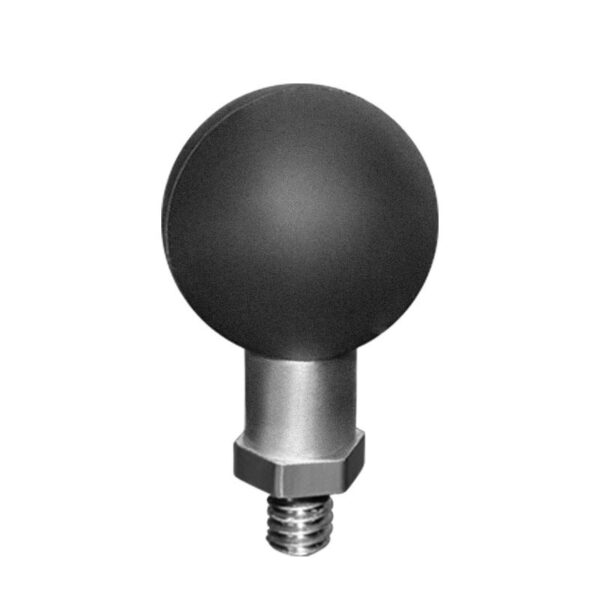

The HDMount 1/4″ Thread Adaptor (1″ Ball) allows you to integrate cameras, test instruments, light fixtures, and electronic devices fitted with standard 1/4″-20 tripod threads into heavy-duty vehicle mounts. Featuring a male 1/4-inch threaded stud with a 7.5 mm shaft length mounted atop an industry-standard 1″ (B-size) rubberised ball.
When connected to any modular 1″ dual-socket arm, the adaptor provides smooth 360-degree rotation and multi-axis tilt adjustment, allowing drivers and equipment operators to position cameras or auxiliary devices at the exact viewing or recording angle required.
Key Features
- Standard 1/4″ Male Threaded Stud: Screws directly into standard 1/4″-20 tripod mounts found on cameras, reversing sensors, video equipment, and brackets.
- 7.5 mm Thread Shaft Length: Provides the optimal thread depth to engage securely with equipment housings without bottoming out prematurely.
- Industry-Standard 1″ Ball (B-Size): Fully compatible with Viewtech HDMount connector arms, RAM Mounts (B-size), and third-party 1-inch ball-and-socket components.
- Full Multi-Angle Positioning: Facilitates 360° rotation and tilt articulation when paired with a double-socket arm for quick framing and adjustment.
