Description

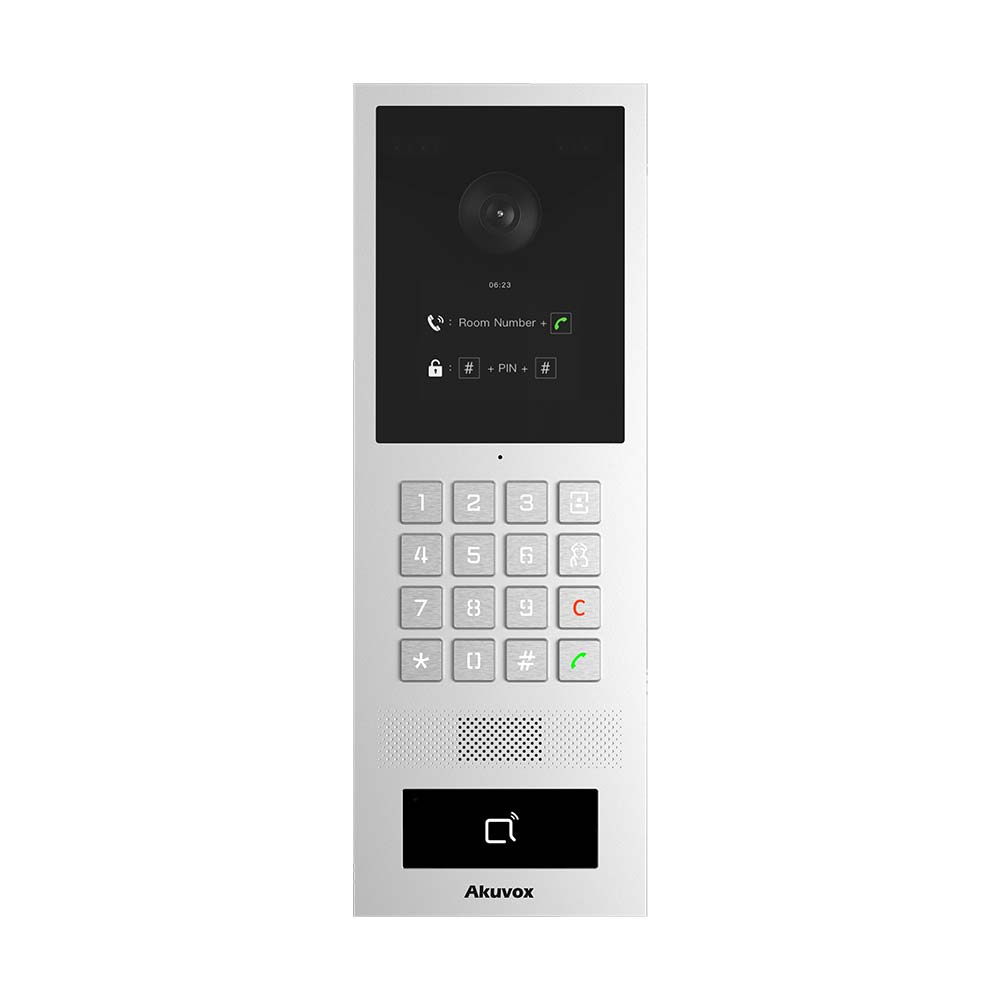

S532 is where the old meets the new. It is a smart SIP door phone that houses an IP-to-analog conversion module, offering an outstanding solution for analog intercom upgrade.
Features
- Vandal resistant body, with numeric keypad
- Wide-angle camera: 130° (H), 90° (V)
- Two-way audio communication over IP networks with Echo Cancel feature
- Multi-way access feature including: Card, PIN & Bluetooth
- Flush-mounted and surface-mounted options
- Complies with SIP & ONVIF
Specifications
| Physical & Power | |
| Front panel | Aluminum |
| Camera | 2M pixels, automatic lighting |
| Display | 2.8 Inch |
| Numeric keypad with extra buttons | |
| Light sensor | Support |
| Motion sensor | Support |
| Wiegand port | Support |
| RS485 port | Support |
| Line out | Support |
| BLE | Support |
| RF card reader | 13.56MHz & 125kHz, NFC |
| Relays out | 2 |
| Inputs | 4 |
| Analog audio output | Support |
| Microphone | 1 |
| Speaker | 1 |
| TF card slot | 1 |
| Reset | Support |
| Tamper Alarm | Support |
| Ethernet port | RJ45, 10/100Mbps adaptive |
| 802.3at Power-over-Ethernet | |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Installation | Flush-mounted & Wall-mounted |
| Size | 310x106x37.8mm |
| Working Humidity | 10~90% |
| Working Temperature | -40°C ~ +60°C |
| Storage Temperature | -40°C ~ +70°C |
| Audio | |
| SIP v1 (RFC2543), SIP v2 (RFC3261) | |
| Narrowband audio codec | G.711a, G.711μ |
| Broadband audio codec | G.722 |
| DTMF | In-band, out-of-band DTMF (RFC2833), SIP Info |
| Echo Cancellation | |
| Voice Activation Detection | |
| Comfort Noise Generator | |
| Video | |
| Sensor | 1/2.8”, CMOS |
| Pixels | CIF, VGA, 4CIF, 720p, 1080p |
| Video codec | H.264 |
| Video resolution | up to 1920x1080p |
| Max. image transfer rate | 1080p – 30fps |
| Viewing angle | 130°(H) / 90°(V) |
| High intensity IR LEDs for picture lighting during dark hours with internal light sensor | |
| Compatible to 3rd-Party-Video components, | |
| e.g. NVRs | |
| Door Entry Feature | |
| Relays controlled individually by DTMF tones | |
| Camera permanently operational | |
| Auto-night mode with LED illumination | |
| White balance | auto |
| Minimum illumination | 0.1LUX |
| Networking & Protocol | |
| Protocols support | IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Deployment & Maintenance | |
| Auto-Provisioning | |
| Web management portal | |
| Web-based packet dump | |
| Configuration backup / restore | |
| Entry log export | |
| Access table export / import | |
| Firmware upgrade | |
| System logs (include door access logs) | |
| Application Scenario | |
| Office door phone with on-site or hosted IP-PBX | |
| Remote site entry over Internet | |
