Description

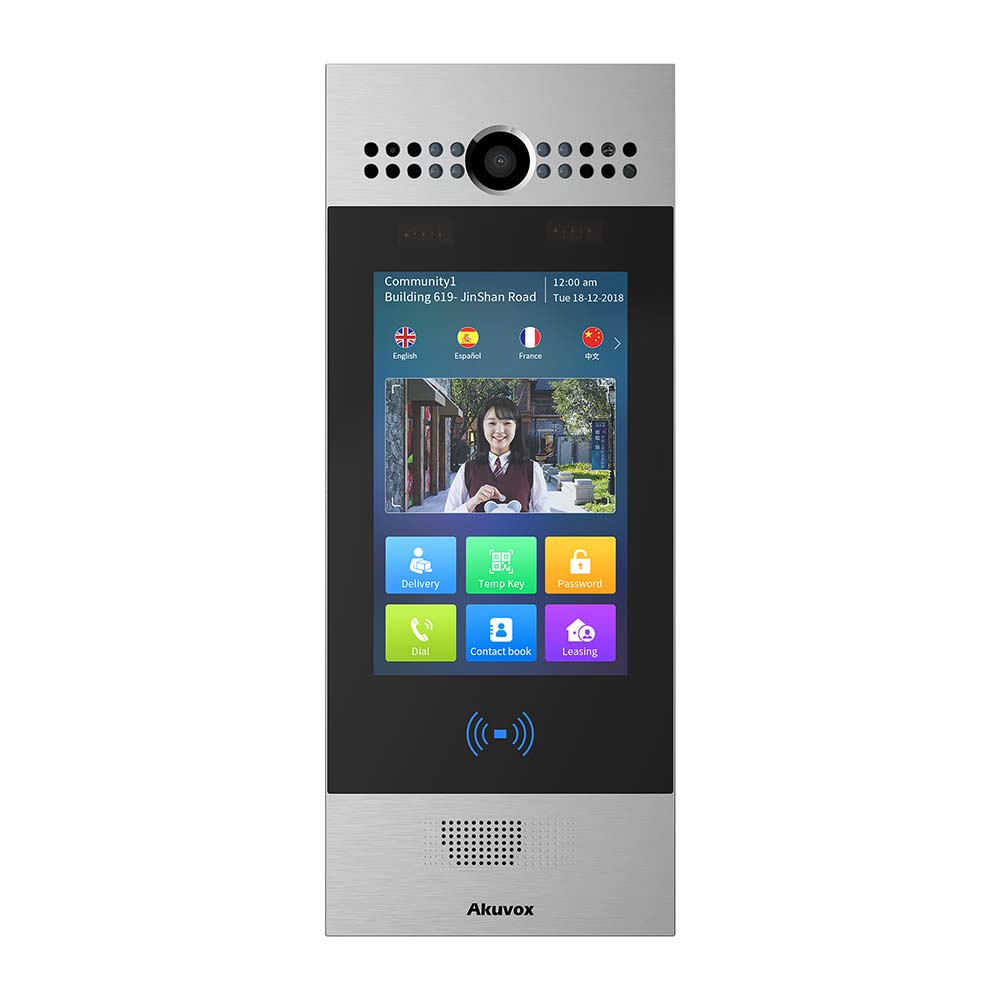

Akuvox R29 is a SIP video doorphone with a 7” touch screen, which performs AI-powered offline facial recognition for door access. It is typically used in apartment buildings, high-rise office buildings and building complexes.
Features
- Enables audio and visual monitoring of doors/gates which increase security on residential or commercial premises
- Dual camera for anti- counterfeit, completely solve all kinds of photos and video deception on various carries
- Face verification accuracy >99.9%; face comparison speed <0.5s per person; false recognition rate <0.1%
- Allows both audio and video communication to an IP phone, mobile client, or softphone
- Enables the ability to remotely control the door/gate
- Presents information and user navigation options unique to your business
- Speeds response time to visitors, delivery and service personnel that require access
Specifications
| Physical & Power | |
| Front panel | Aluminum |
| RAM / ROM | 2GB / 16GB |
| Display | 7 Inch IPS LCD |
| Screen | 7 Inch capacitive touch screen |
| Main Camera | 2M pixels, automatic lighting |
| Light sensor | Support |
| Infrared sensor | Support |
| Wiegand port | Support |
| RS485 port | Support |
| RF card reader | 13.56MHz & 125kHz |
| Relays ln/out | 3/3 |
| Microphone | -32dB |
| Speaker | 8Ω / 2W |
| Ethernet port | RJ45, 10/100Mbps adaptive 802.3at Power-over-Ethernet |
| IP/IK Level | IP65/ IK06 |
| Installation | Flush-mounted & Wall-mounted |
| Flush-mounted DIM | 324x130x60mm |
| Wall-mounted DIM | 324x130x33mm |
| Working Humidity | 10-90% |
| Working Temperature | -20°C – +55°C |
| Storage Temperature | -40°C – +70°C |
| Audio | |
| SIP | SIP v1 (RFC2543), SIP v2 (RFC3261) |
| Narrowband audio codec | G.711a, G.711μ, G.729 |
| Broadband audio codec | G.722 |
| DTMF | In-band, out-of-band DTMF (RFC2833), SIP Info |
| Echo Cancellation | |
| Voice Activation Detection | |
| Comfort Noise Generator | |
| Video | |
| Sensor | 1/2.8″, CMOS |
| Pixels | CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video codec | H.264 |
| Video resolution | up to 1920x1080p |
| Max. image transfer rate | 1080p – 25fps |
| Viewing angle | 105(H)/55°(V) |
| High intensity IR LEDs for picture lighting during dark hours with internal light sensor | |
| White LEDs for QR code scanning | |
| Compatible to 3rd-party video components, | |
| Networking and Protocol | |
| Protocols support | IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Door Entry Feature | |
| Android OS for any 3rd-party software or customization | |
| Relays controlled individually by DTMF tones | |
| Multi-way Unlock | Face, IC/ID Card, PIN and BLE |
| Camera permanently operational | |
| Auto-night mode with LED illumination | |
| White balance | auto |
| Minimum illumination | 0.1LUX |
| Deployment & Maintenance | |
| Auto-Provisioning | |
| Web management portal | |
| Web-based packet dump | |
| Configuration backup / restore | |
| Entry log export | |
| Access table export / import | |
| Firmware upgrade | |
| System logs (include door access logs) | |
| Application Scenario | |
| Office door phone with on-site or hosted IP-PBX | |
| Remote site entry over Internet | |
| Apartment/flat intercom with door access control | |
| Business information or a welcome experience for guests | |
