Description

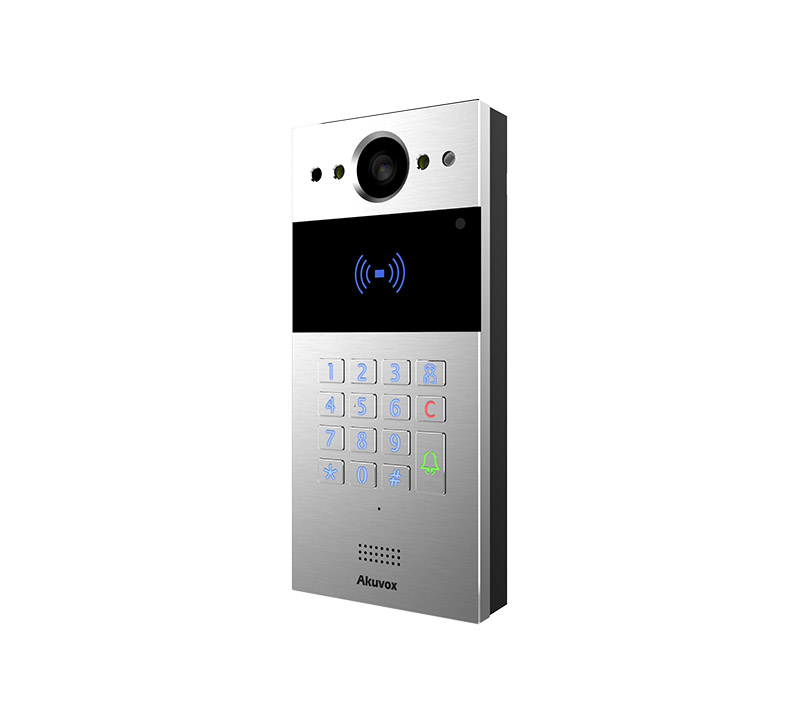

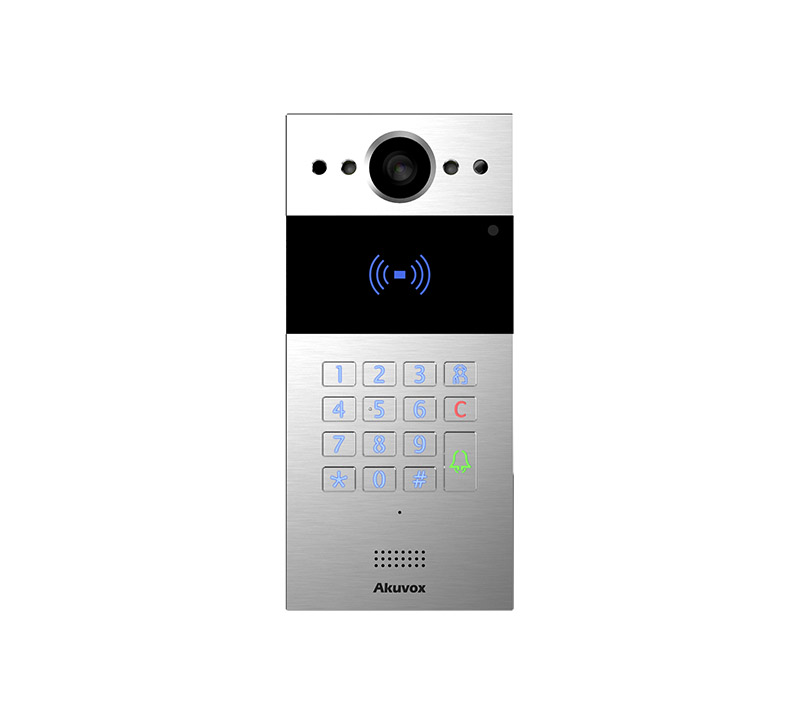

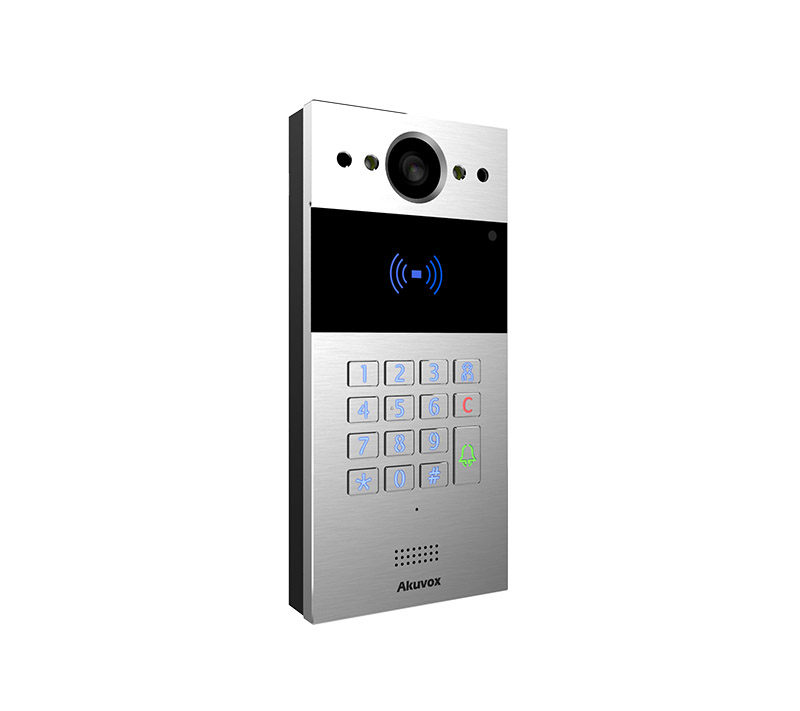

Space-saving and highly compatible, Akuvox R20K-2W is a compact 2-Wire SIP video door phone with a numeric keypad. It is typically used in apartment and office building retrofitting.
The R20K-2W is a commercial grade aluminium body door station with numeric keypad.
Multiple verification methods include PIN, access cards or tags, NFC and Bluetooth.
It can call both indoor monitors as well as the mobile app. Also use your mobile phone bluetooth or NFC as a key to open the gate or door.
Features
- 2MP camera ONVIF compatible, record to NVR or VMS
- 13.56Mhz card reader, NFC & Bluetooth
- Backlit call button
- Interfaces 1 x weigand, 2 x Inputs, 2 x Output
- Ethernet & PoE
- Configuration via web browser
Specifications
Physical & Power
- Front panel: Aluminum alloy
- Camera: 2M pixels, automatic lighting
- Keypad：Yes
- Light sensor: Support
- Infrared sensor: Support
- Wiegand port: Support
- RS485 port: Support
- RF card reader: 13.56MHz (with NFC) & 125kHz
- Relays out: 1
- Inputs: 1
- Microphone: -40dB
- Speaker: 4Ω / 3W
- Power Interface：1
- Power supply：48VDC two-wire power supply
- Water-proof & Dust-proof: IP65
- Installation: Flush-mounted or Wall-mounted
- Flush-mounted DIM: 226x108x52mm
- Wall-mounted DIM: 185x85x29mm
- Working Humidity: 10~90%
- Working Temperature: -30°C ~ +60°C
- Storage Temperature: -40°C ~ +70°C
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/2.7”, CMOS
- Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Video codec: H.264
- Video resolution: up to 1920x1080p
- Max. image transfer rate: 1080p – 25fps
- Viewing angle: 110°(H) / 58°(V)
- High intensity IR LEDs for picture lighting during dark hours with internal light sensor
- Compatible to 3rd-Party-Video components, e.g. NVRs
Door Entry Feature
- Relays controlled individually by DTMF tones
- Camera permanently operational
- Auto-night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
Networking & Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Office door phone with on-site or hosted IP-PBX
- Remote site entry over Internet
- Apartment/flat intercom with door access control
