Description

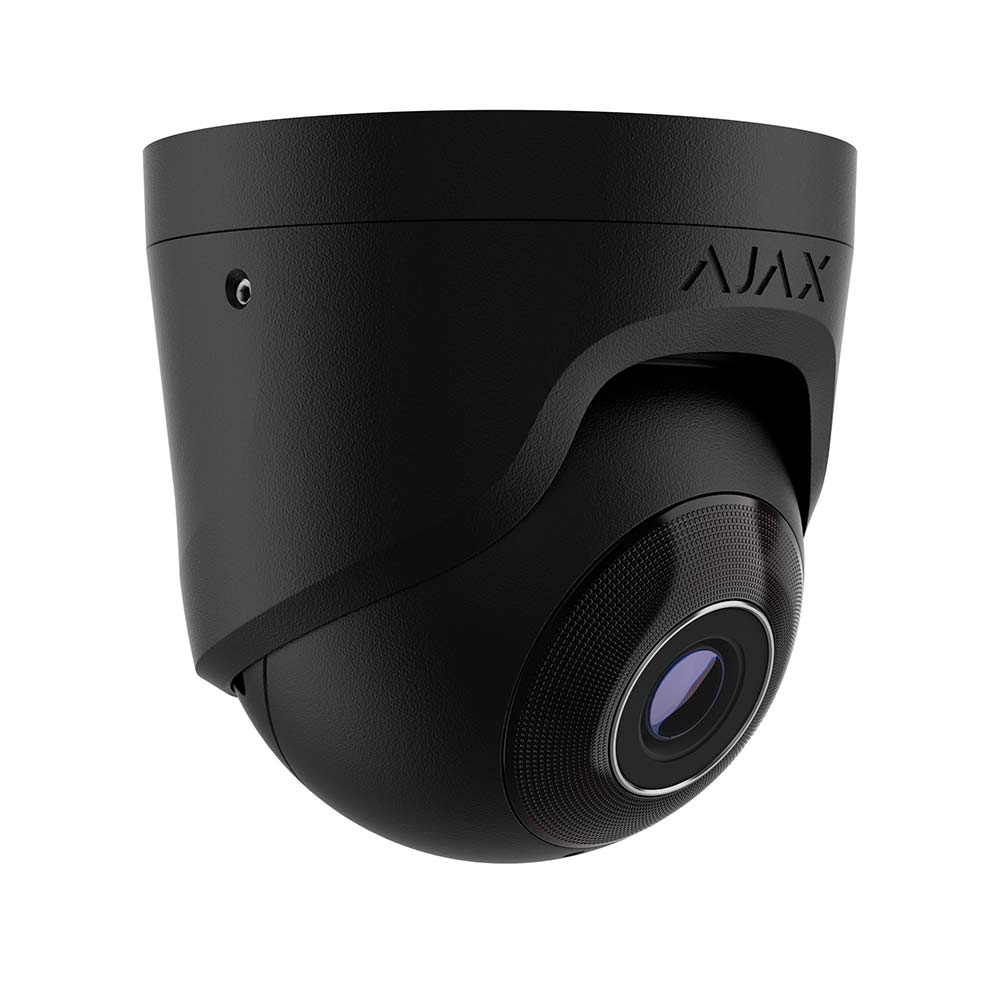

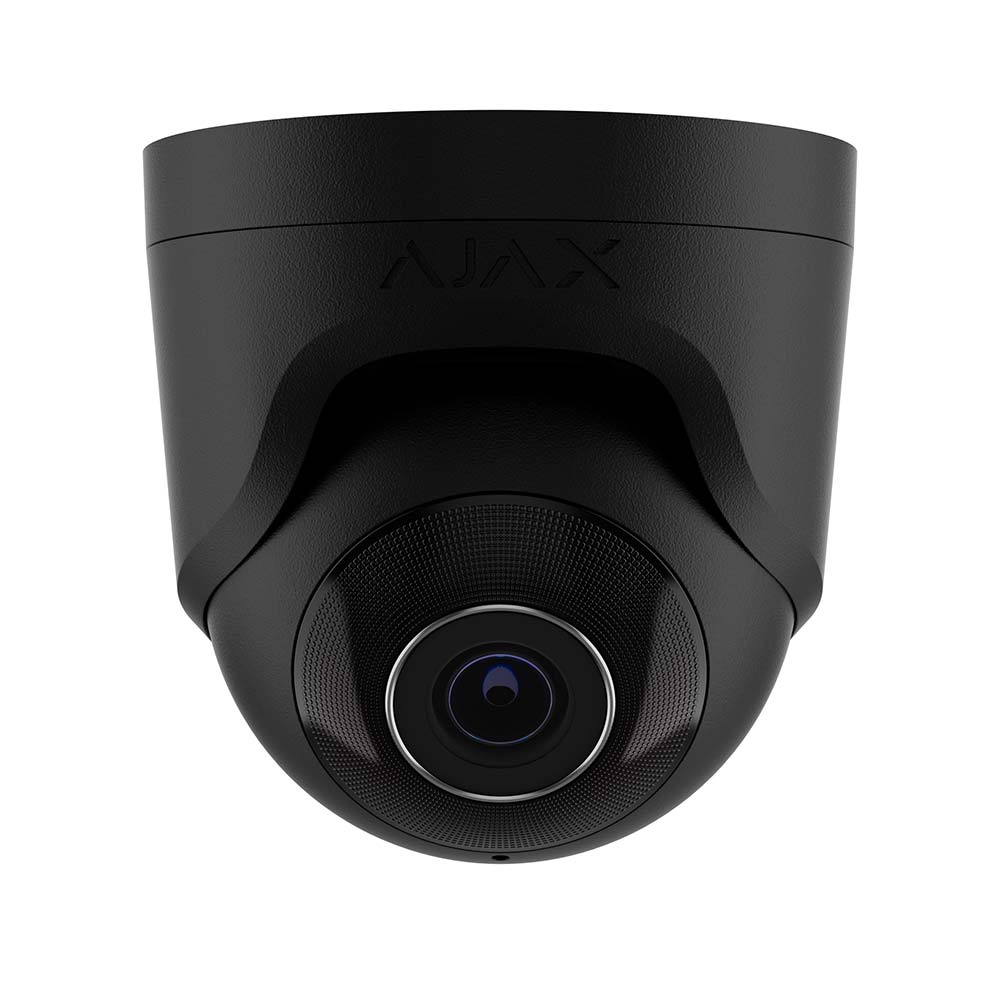

The Ajax TurretCam is an IP camera with smart infrared (IR) backlight and an object recognition function. The user can view archived and live videos via the Ajax apps. To store the captured data, install a microSD card or connect the camera to NVR with an installed hard disk.
The camera connects to the network via Ethernet, using the appropriate connector. A hub is only required for adding TurretCam to the Ajax system.
Intelligence and privacy built in
Get full control over the camera stream with precise privacy settings for each system user. Enjoy smooth and fast navigation with an intuitive interface empowered by state-of-the-art streaming technology. NDAA-compliant hardware — utilising cutting-edge software and AI — delivers a clear image right when you need it.
Features
- Secure passwordless camera authentication
- Сustomizable virtual video wall
- Instant alarm verification in high-resolution
- Customizable motion detection area
- Fast archive navigation with dual stream technology
- Built-in AI-recognition
- IR illumination range up to 50 m
- Archive synchronization with system events
- Built-in digital microphone
- Water and dust resistant metal enclosure
- Multi-tiered account security: 2FA, session control, and password/biometric login
- Support for up to 256 Gb SD card
- Remote control and configuration
- H264/H265 codec support
Specifications
| Compatibility | |
| Control panels | Hub, Hub Plus, Hub 2 (2G), Hub 2 (4G), Hub 2 Plus, Hub Hybrid (2G), Hub Hybrid (4G) |
| Video recorders | NVR |
| Sensor / Lens | |
| 8 MP / 2.8 mm | Resolution up to 3840 × 2160 px | Frame rate 20 FPS | Viewing angle from 100° to 110° |
| Videostream | |
| Video protocol | JetSparrow – Fast and encrypted peer-to-peer video protocol developed by Ajax Systems. |
| Storage | NVR, microSD, Memory storage device not included. |
| Codecs | H.265, H.264 |
| Dynamic ranges | HDR, WDR |
| Communication channel | |
| Ethernet | up to 100 Mbps |
| Key features | |
| Motion detection | The camera has software to detect motion in the frame. |
| Object detection | Using AI: Humans, Pets, and Vehicles. |
| Smart IR illumination | up to 50 m. Automatic adjustment of intensity in real time to avoid overexposure. This allows you to see objects that are far away or too close to the camera in low light conditions. |
| Active zone | The camera focuses on certain areas of its view where the device will detect motion. |
| Visual verification of Ajax alarms | The system allows you to set up a scenario when Ajax detectors activate selected cameras to start recording. The result is immediately sent to the mobile or desktop monitoring app. |
| Microphone | With the corresponding settings, the camera records sound at the object. |
| Power supply | |
| Power supply unit | 12 V⎓ ± 20%, 1 А. Up to 7,5 W of mains power consumption. |
| Ethernet port | PoE Standard 802.3at |
| Sabotage protection | |
| mTLS | Encrypted connection for data protection. |
| Authentication | via Cloud. Without local access rights. |
| Secure Boot | Protection against firmware spoofing. |
| OTA signature verification | Secure automatic firmware update. |
| Privacy | Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop. |
| Enclosure | |
| Dimensions | 103 × 98 × 98 mm (4.05″ × 3.86″ × 3.86″) |
| Weight | 496 g |
| Operating temperature range | from −30 °C to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP65 |
