Description

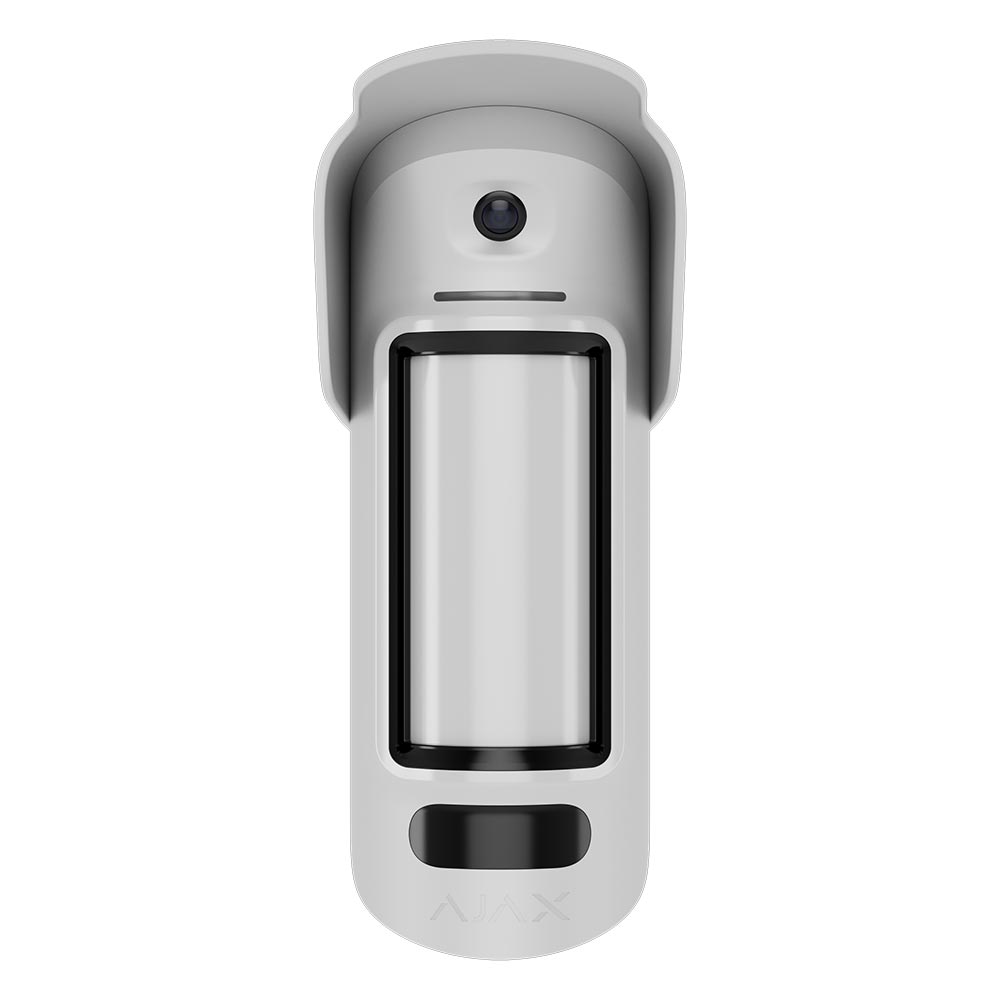

MotionCam Outdoor HighMount (PhOD) Jeweller is a wireless motion detector designed primarily for remote locations, warehouses, and industrial complexes, yet equally suited for offices and private houses. The device can be installed at heights ranging from 2 to 4 m, providing extensive area coverage with no blind zones. With a built-in camera, it is easy to quickly assess the situation at the protected facility. This is possible thanks to several types of photo verification available: by alarm, by scenario, by schedule, by arming/disarming, and on demand. The false alarm filter distinguishes non-threatening factors, such as swaying tree branches or heat flows. The metal swivel mount allows for flexible adjustment of the viewing angle.
| Detection |
| Sensitive elements
2 × PIR sensor 1 × K-band microwave sensor Operating frequency: 24 GHz. Motion detection distance Up to 15 m when installed at a height of 2–4 m. Depends on the sensitivity level adjusted in the device settings. Motion detection angle horizontal: 90° Motion detection speed from 0.3 to 2.0 m/s The direction of the detector sensors should be perpendicular to an alleged intrusion path into the facility. Sensitivity 3 levels Adjusted by a PRO or a user with admin rights in Ajax apps. False alarm prevention SmartDetect Software algorithm. Temperature compensation Effective movement detection in temperatures from −25 °C to +60 °C. |
| Photo verification |
| Photo by Alarm
The built-in camera is activated if the detector is armed and movement is detected. Photo on Demand A user takes pictures at any time or when the detector is armed (depending on settings). The feature is disabled by default. Photo by Scenario The detector takes pictures automatically when other Ajax detectors are triggered. The feature is not configured by default. Photo by Schedule The detector automatically takes photos at the specified time. The feature is not configured by default. Photo by arming/disarming The detector automatically takes photos when the security state is changed. Adjustable photo resolution 640 × 480 px 320 × 240 px (default) Adjusted by a PRO or a user with admin rights in Ajax apps. Camera viewing angles horizontal: 115° vertical: 84° IR backlight For night photography and low light conditions. Series of pictures from 1 to 5 images with a resolution of 320 × 240 px from 1 to 3 images with a resolution of 640 × 480 px Adjusted by a PRO or a user with admin rights in Ajax apps. Photo delivery time up to 9 s for 320 × 240 px resolution up to 20 s for 640 × 480 px resolution Photo delivery time depends on the image resolution selected in the device settings. |
| Recommendations |
| It is recommended to install the detector at a height of 2–4 m.
The pet immunity feature is not available for this device. The device is designed for outdoor and indoor use. |
| Sabotage protection |
| Tamper alarm
Notifications of attempts to remove the detector from the mounting panel. Magnetometer detects attempts to tilt or shift the detector or detach it from the surface Anti-masking system detects attempts to block the detector view Holding screw secures the device on SmartBracket Protection against spoofing device authentication Communication loss detection after 36 s Detection time depends on the Jeweller/Fibra settings. |
| Main power supply |
| Battery
6 × CR123A Pre-installed. Type type C Calculated battery life up to 3 years Detector operating voltage range 3.8−6.5 V⎓ Detector nominal operating voltage 6 V⎓ Quiescent detector current consumption at nominal voltage 45 μA Maximum detector current consumption at nominal voltage 1,200 mA Full battery capacity 4,800 mAh Low battery voltage 4.2 V⎓ Low battery recovery voltage 5.0 V⎓ End-of-life battery voltage 3.8 V⎓ The device is switched off. End-of-life battery capacity 300 mAh |
| Optional power supply |
| External supply operating voltage
8−24 V⎓ The batteries serve as a backup when an external power supply is connected. |
| Enclosure |
| Dimensions with the swivel mount
234 × 98 × 230 mm Dimensions without the swivel mount 234 × 98 × 137 mm Weight with the swivel mount 1,010 g Weight without the swivel mount 620 g Operating temperature range from −25 °C to +60 °C Operating humidity up to 95% Protection class IP55 |
| Complete set |
| MotionCam Outdoor HighMount (PhOD) Jeweller
6 × CR123A battery (pre-installed) SmartBracket mounting panel Swivel mount Hood Installation kit Quick start guide |
