Description
Convenient Ajax system control
KeyPad TouchScreen combines security and automation device management. An intuitive Ajax app-like interface and multiple language options make it an easy-to-use solution. The big display, DESFire® and BLE technologies, and code options ensure a secure and efficient experience.
Features
- Touch IPS display with a diagonal of 5”
- Black and white themes
- Operation with secured cards and key fobs – Pass and Tag access devices
- Easy security group management
- Sound notifications about delays, door openings, and alarms
- Low power consumption
- Informative app notifications
- Tamper protection
- Control via smartphone due to BLE support
- 32 interface languages
- Personal access and duress codes
- Automation control
- Fibra line connection up to 2,000m
- Three alarm types: Panic, fire & auxiliary
- Remote control and configuration
Three authentication methods
There are three easy ways to control the keypad, giving users the flexibility to choose what suits them best. All events display in the feed, including user activity and authentication details.
Smartphone
Control the keypad via smartphone with an Ajax app. Access rights are only granted to users approved by the admin.
BLE (Bluetooth Low Energy) is a low-energy radio protocol that makes it possible to use a smartphone instead of cards or key fobs. KeyPad TouchScreen supports iOS and Android smartphones with BLE 4.2 or higher.
PRO can configure access control settings. Data transmission between the smartphone and KeyPad TouchScreen is encrypted. The system incorporates measures to prevent spoofing attacks, making it impossible for burglars to gain unauthorized access.
Pass card and Tag key fob
When someone uses the Pass card or the Tag key fob, it’s logged in the event feed of the Ajax app. The admin can revoke or restrict the access rights of the contactless access device at any time.
To identify users quickly and securely, KeyPad TouchScreen features the DESFire® technology. It is the best-in-class contactless solution to identify the user by card or key fob.
DESFire® is based on the ISO 14443 international standard and combines comprehensive 128-bit encryption and copy protection. This technology is also used in transportation systems of European capitals and access systems at NASA.
From the user’s perspective, contactless access works simply. To disarm the system, all the user needs to do is present a card or a key fob to the keypad.
Code
KeyPad TouchScreen supports the following code types:
- keypad code (one per keypad)
- personal code (individual for each user)
- code for an unregistered person
The system prevents unauthorized individuals from guessing the access code. This helps enhance security and ensures that only authorized users can gain access.
Users have the ability to change the access code remotely. Simultaneously, the system’s access code remains concealed, ensuring that it is not visible to others during entry. This feature reduces the risk that the code will be used by an attacker.
Contactless access devices
Pass card and the Tag key fob are equipped with original DESFire® chips and feature the same functionality but different enclosures. Users can choose the convenient form. One Tag or Pass can control up to 13 security systems. Access devices are sold separately in batches of 3, 10, or 100 pieces.
Access for unregistered users
With a simple assignment of a personal access code in the hub settings, office employees, cleaning company staff, or other individuals enter the area with convenience at its finest.
- Remote creation and management of codes
- Notifications for adding, removing, and deactivating codes
- A unique name and ID binding to identify the user
- Support for up to 99 keypad access codes
Full protection in case of emergency
KeyPad TouchScreen provides a tab with configurable panic buttons that can notify about three event types. If the user is forced to disarm the system, they can use a duress code. It simulates disarming, and simultaneously sends an alarm to the security company.
- Tab with panic buttons to notify about alarm, fire, or auxiliary event
- Duress code
Exceptional touch screen experience

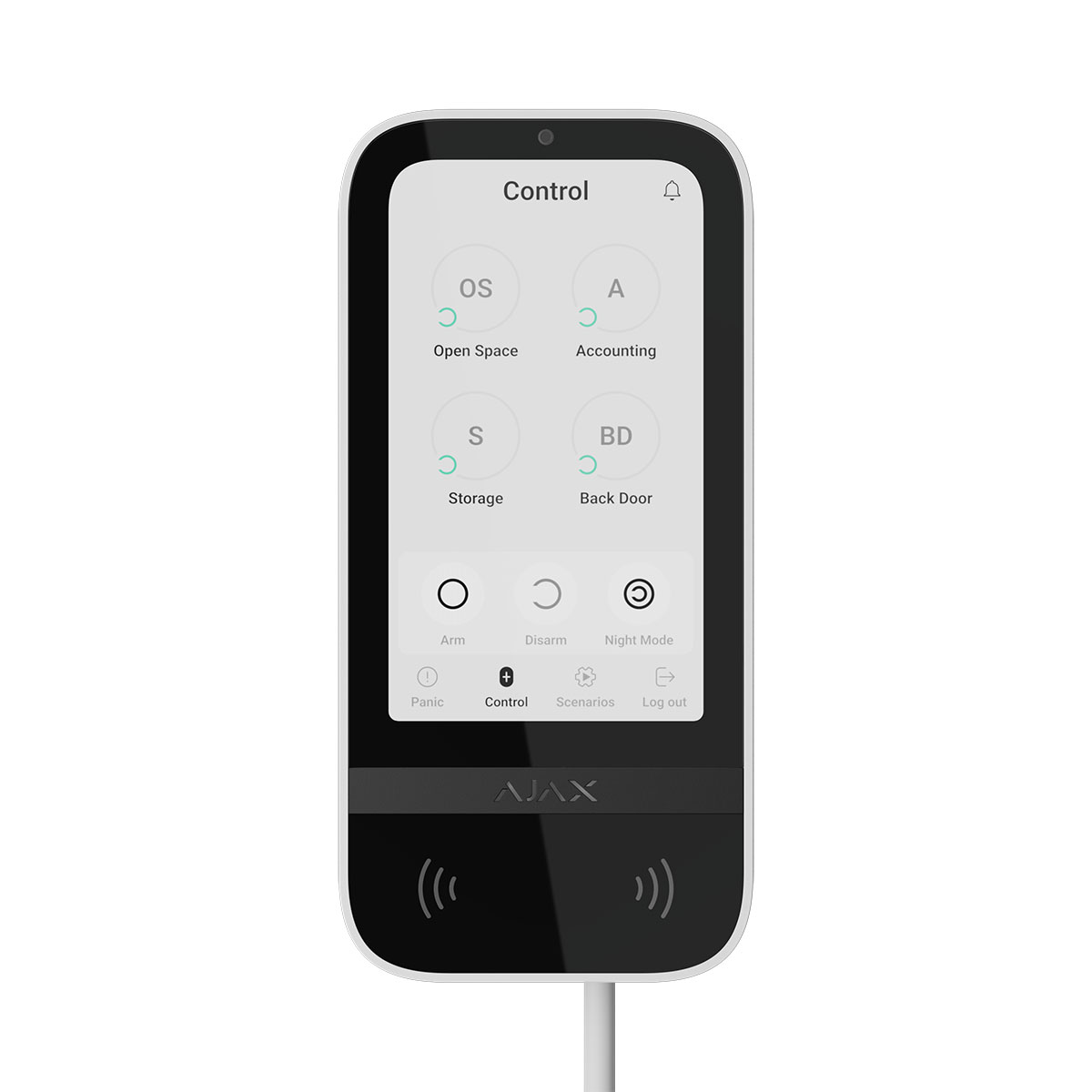

A high-resolution screen accommodates all necessary controls, ensuring a stunning and high-quality image. Featuring automatic brightness adjustment and a sleek glass design, the product combines aesthetics with convenience.
- 5-inch screen with a resolution of 480 × 854 px
- Bright during the day, not dazzling at night
- Screen protection against scrapes, scratches, etc.
