Description
The synergy of wired and wireless technologies

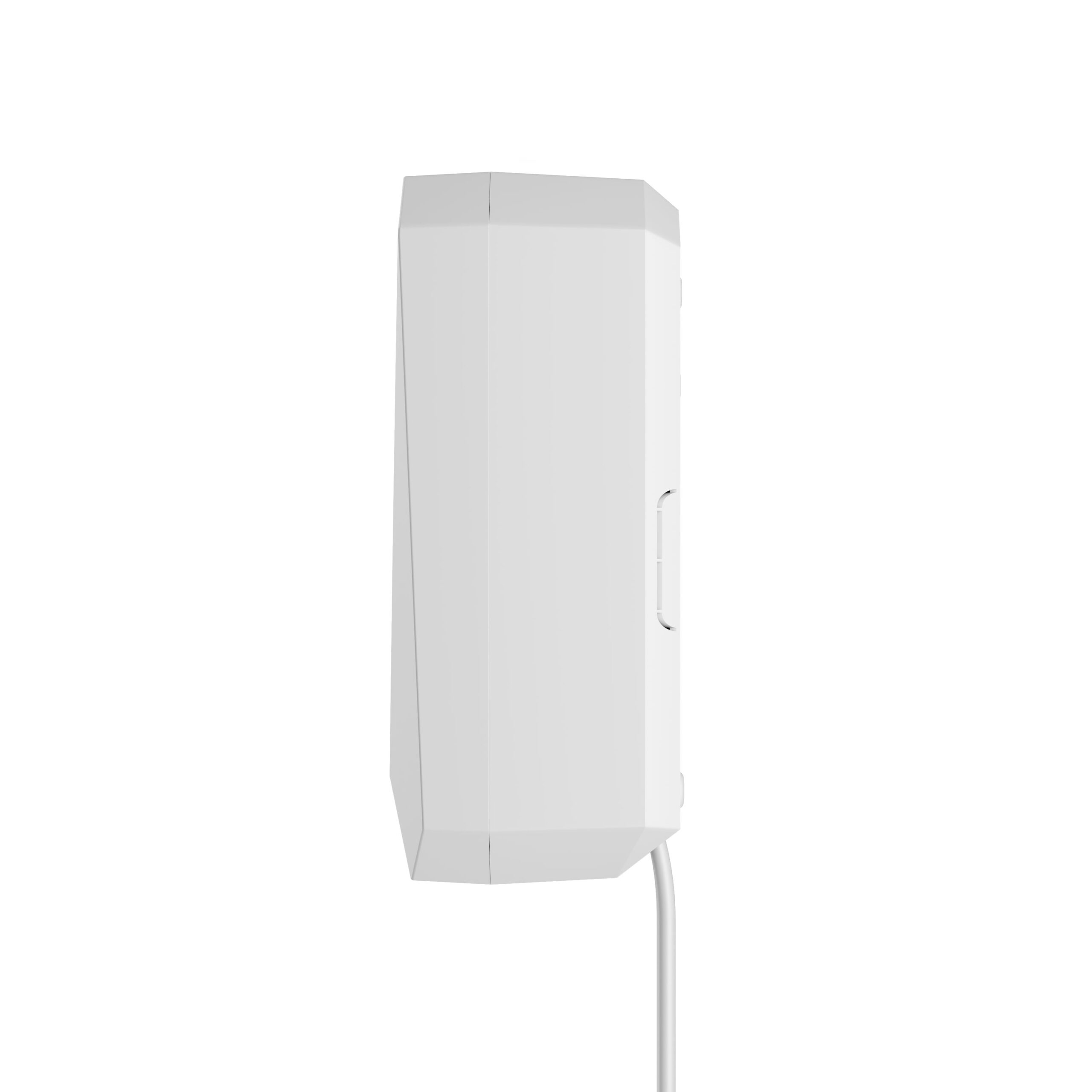

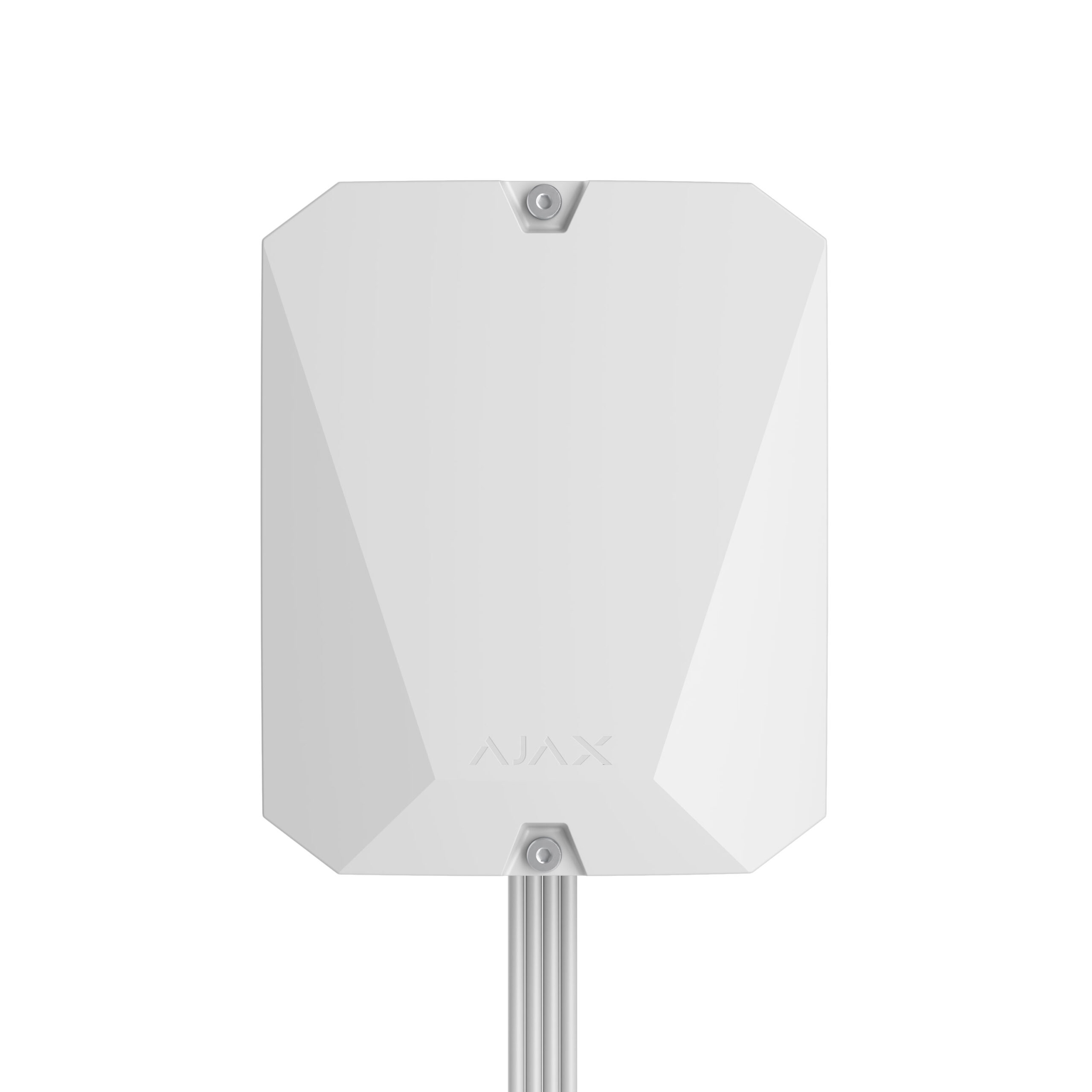

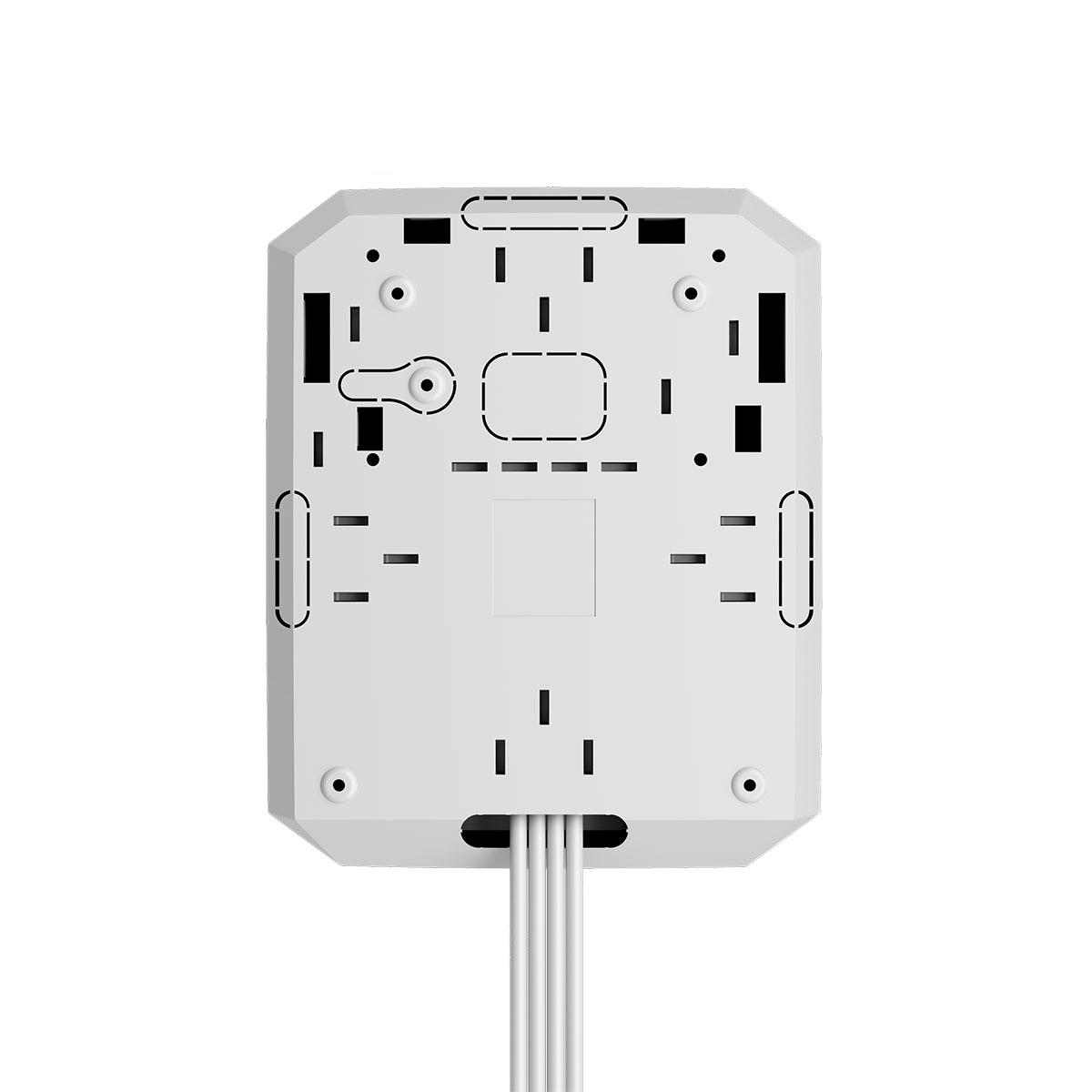

Hub Hybrid is a game-changer among professional security systems. It is the first Ajax control panel supporting Jeweller devices and the all-new Fibra product line. Wired and wireless technologies are combined to build complex protection regardless of facility size, steel or concrete obstructions. Security is enhanced by informative notifications, photo verification of alarms, real-time system control in the app, and automation scenarios.
Features
- 8 lines to connect wired Fibra devices
- Alarm photo verification in 9 seconds without privacy concerns
- 3 independent communication channels out of the box
- Remote control and configuration
- Up to 3.5 days of system operation on a backup battery
- Ring connection topology
Maximum without expansion modules
- Tampers to alert of case opening and demounting
- 8 independent lines supporting the ring connection topology
- Jeweller antennas for robust transmission of commands and events
- Wings antennas for stable reception of photo verifications
- Built-in power supply for a 110-240 V grid
- Space for a backup battery 12 DC with a capacity of 4 or 7 Ah
Communication through steel and concrete
Fibra
Fibra communication technology allows you to wire independent lines up to 2 km long. Eight lines in one system run by Hub Hybrid minimize potential damage. Even a completely broken line leaves the security system at 87% operational. And with wireless sensors, this percentage will be even higher.
With Fibra, you get the flexibility to build a star topology or use 8 lines as zones in an iconic burglar alarm. In any configuration, you get an intelligent security system.
Jeweller
Jeweller radio protocol provides two-way communication between the hub and wireless devices at a distance of up to 2,000 meters, allowing remote system control and alarm transmission in 0.15 seconds.
Jeweller applies time frames to synchronize devices communication, authentication to prevent forgery, and encryption to protect the data. An energy-efficient protocol provides wireless devices with up to 7 years of battery life.
Up to 5 range extenders with a communication range of up to 1,800 meters can be connected to Hub Hybrid by radio or cable via Ethernet.
Always online via Ethernet and cellular networks
Hub Hybrid can be connected to three Internet providers at a time via Ethernet cable and 2G, 3G, and LTE SIM cards. Automatic switching between channels takes seconds.
Three days on a backup battery
Hub Hybrid with a backup battery can power a system of 30 wired devices for 60 hours. Wireless devices operate on batteries and do not require additional power supply.
Fibra detectors consume tens of times less energy than similar bus detectors from other manufacturers
Anti-sabotage
The six countermeasures
- Tampers to alert of demounting and case opening
- Connection loss notification in a minute
- Authentication against forgery
- Jamming alert in 30 seconds
- Encryption and frequency hopping to protect data
- Events delivery in 0.15 seconds
Physical protection of the line against break
Hub Hybrid features 8 lines and supports ring connection topology — up to four rings in a hybrid security system. In the event of a line breakage, the ring splits into two working segments, devices continue to operate, and the system notifies a security company and users about the incident.
Alarm photo verification in 9 seconds
Hub Hybrid supports both MotionCam and MotionCam Outdoor wireless motion detectors. When triggered, detectors take a series of photos, helping to evaluate the situation at the facility. Visual verification helps you instantly assess the situation, saving users from concerns, and security companies — from unnecessary dispatches.
- Motion detected
- Alarm raised
- Evidence captured
