Description

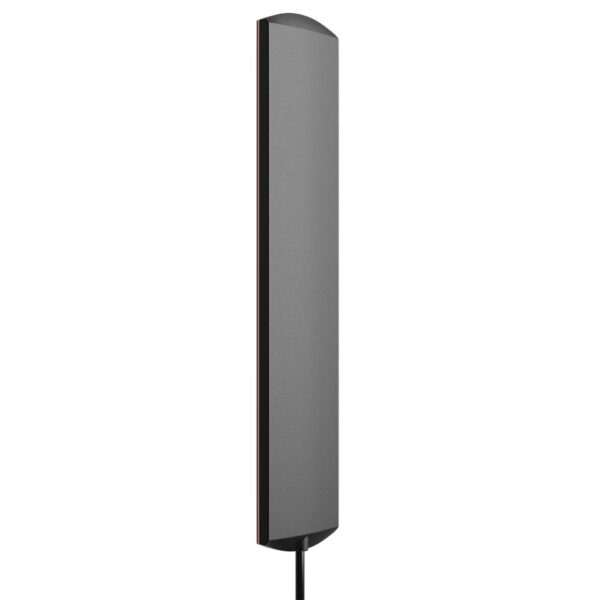

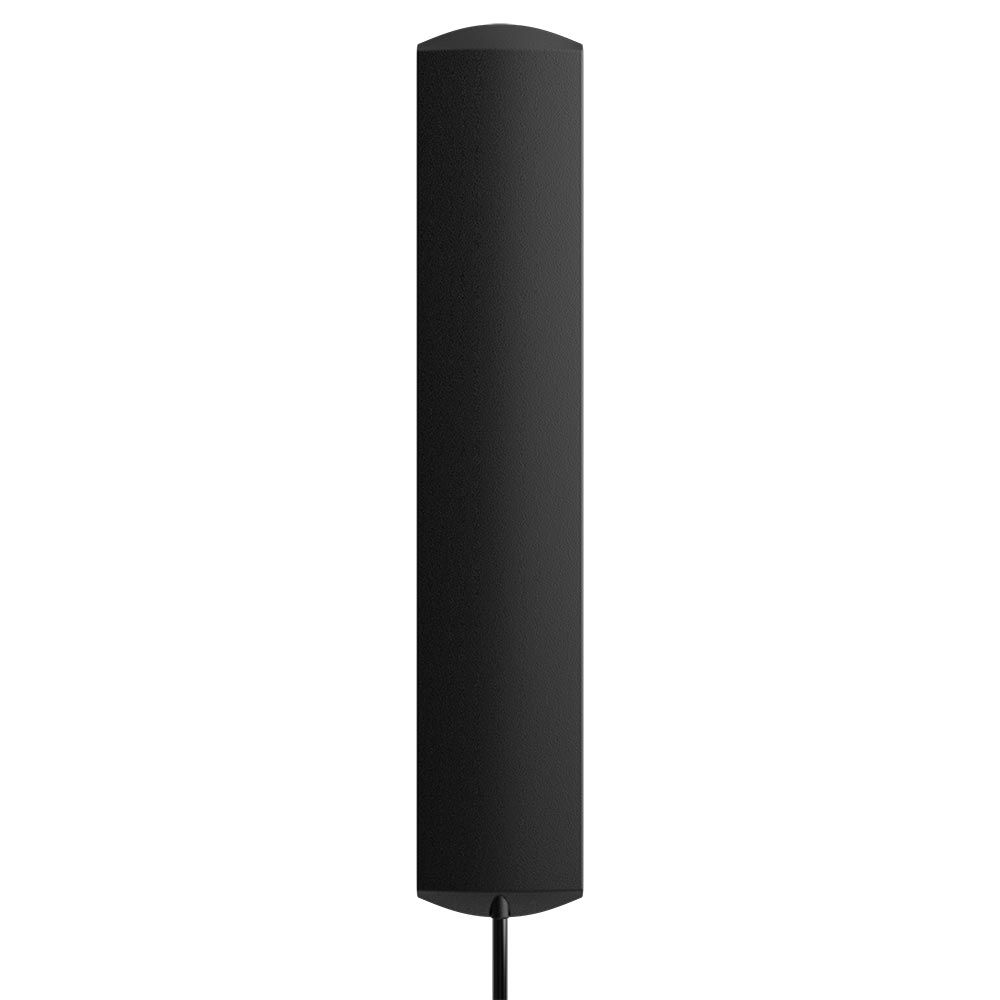

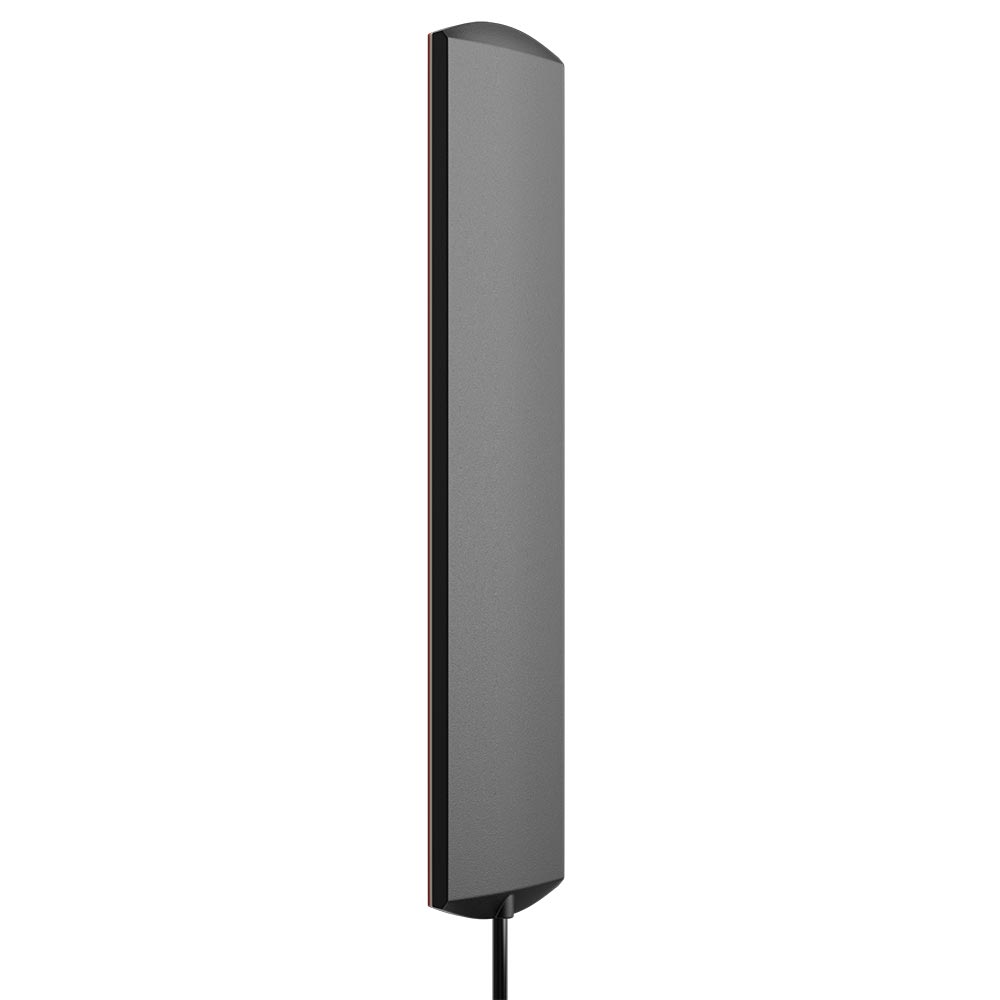

ExternalAntenna helps overcome barriers to radio signals in challenging environments, such as safe boxes, reinforced concrete rooms, or metal enclosures. Place the signal transmitter or receiver beyond obstacles to improve signal strength in Jeweller, Wings, and cellular channels and get a more reliable and stable connection. If the ExternalAntenna cable is cut or severed, you will receive an instant alert.
A single ExternalAntenna, which supports 698–960 MHz and 1,710–2,690 MHz frequency bands, can be connected to one of three communication outputs: Jeweller, Wings, or cellular. Depending on the selected output, the antenna will optimize the connection within the supported frequency band.
Features
Communication channels
- 2G/3G/LTE
- Jeweller
- Wings
Operating frequencies
- 698–960 MHz
- 1,710–2,690 MHz
Dimensions
115.6 × 21.7 × 5.8 mm
Cable Length
3,000 mm
Compatible with
- Hub BP Jeweller
- Hub Hybrid (4G) (without casing)
