64-Channel Live View and 4K HDMI Video Output
| Video and Audio | |
| IP Video Input | 64-Channel |
| Incoming Bandwidth | Default: 260Mbps Extended Bandwidth Mode: 320Mbps |
| Outgoing Bandwidth | Default: 180Mbps Extended Bandwidth Mode: 320Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| Video Output Mode | HDMI/VGA Independent Output |
| Multi-View Display | 1,4,6,8,9,16,25,32,36,49,64 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel† |
| Capability | 25fps: 16-ch@2MP、32-ch@720P、64-ch@D1 30fps: |
| Record Management | |
| Record Mode | Manual Recording Scheduling Recording Motion Detection Recording |
| Playback Mode | Instant Playback Regular Playback Tag Playback Event Playback |
| Backup Mode | Regular Backup Video Clip Backup |
| Playback Function | Play Pause Stop Fast Forward Fast Backward Play By Frame Full Screen Video Clip Export Clip Digital Zoom Lock Recording Audio On/Off |
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S/T/G, CGI |

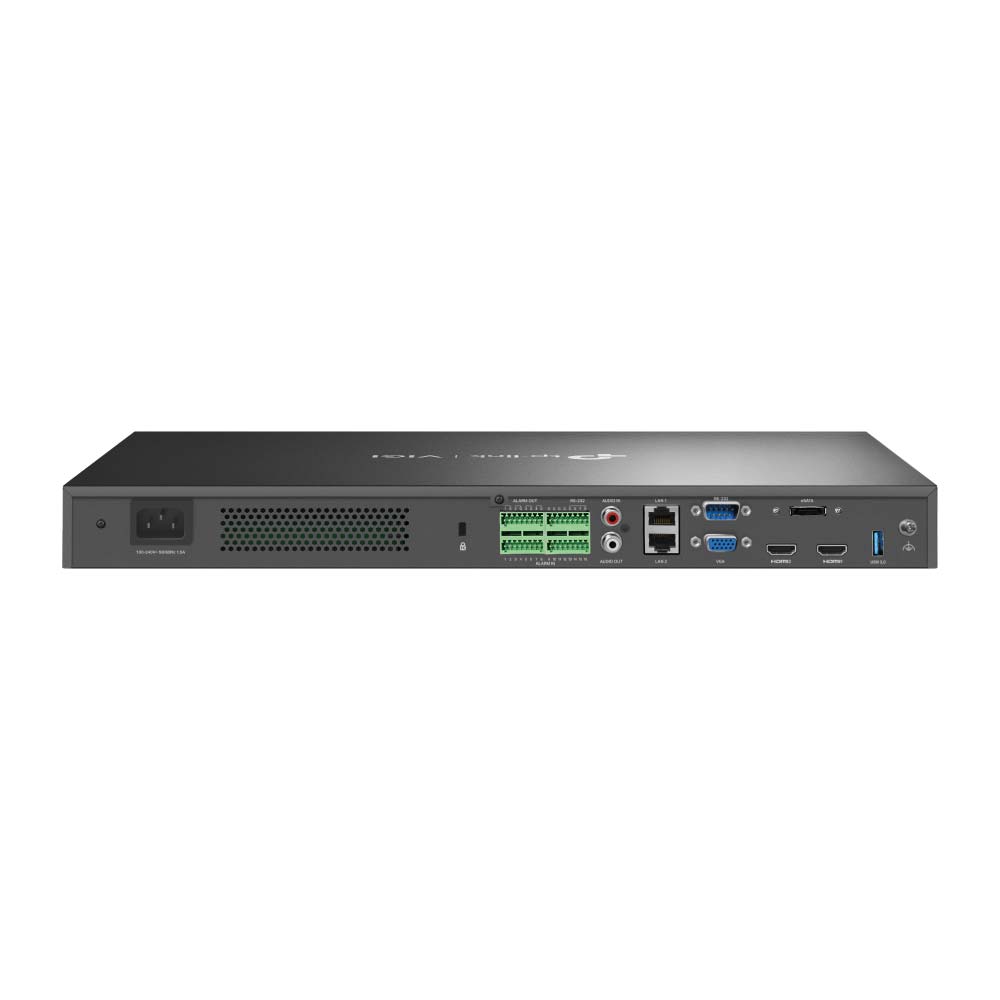

| External Interface | |
| Network Interface | 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 16/4 |
| Serial Interface | 1, RS232 |
| Power | 1× AC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 2 |
| VGA | 1 |
| HARD DISK | |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 16 TB Capacity for Each HDD* |
| Alarm | |
| General Alarm | Motion Detection Video Tampering Scene Change Detection Line-Crossing Detection Intrusion Detection Region Entering Detection Region Exiting Detection Loitering Detection Object Abandoned/Removal Detection Vehicle Detection Human Detection Abnormal Sound Detection Smart Frame Note: The alarm function requires the use of a camera. |
| Anomaly Alarm | Video Loss Offline and IP Conflict Disk Exception Login Exception Fan Exception Note: The alarm function requires the use of a camera. |
| Alarm Linkage | Recording White Light Alarm Buzzer Log Audible Alarm Note: The alarm function requires the use of a camera. |
| GENERAL | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Content | VIGI Network Video Recorder Mouse Installation Guide Power Cord HDD Power Cables HDD Data Cables Terminal Blocks Mounting Brackets Screws Rubber Feet |
| Working Temperature | NVR: -10–55 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 440 × 330 × 44 mm |
| External Power Supply | 100-240 VAC, 50 to 60HZ, 1.5A |
| Net Weight | 4.0 Kg# |
| Gross Weight | 5.0 Kg# |
| Power Supply | 100-240 VAC, 50 to 60Hz, 1.5A |
| Max. Power Consumption | 6.95 W (Without Disk) 48.38 W (With Disk) |
| Certifications | CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF |
† The number of simultaneously playable channels may be fewer than 16, or none, if the total resolution exceeds 32MP.
* HDD is not included.
‡ This model currently supports ONVIF Profile S/T/G.
# Due to the weight of this model, it is recommended to use a tray when mounting the rack with angle iron. Please note that the tray is not included.
