Description

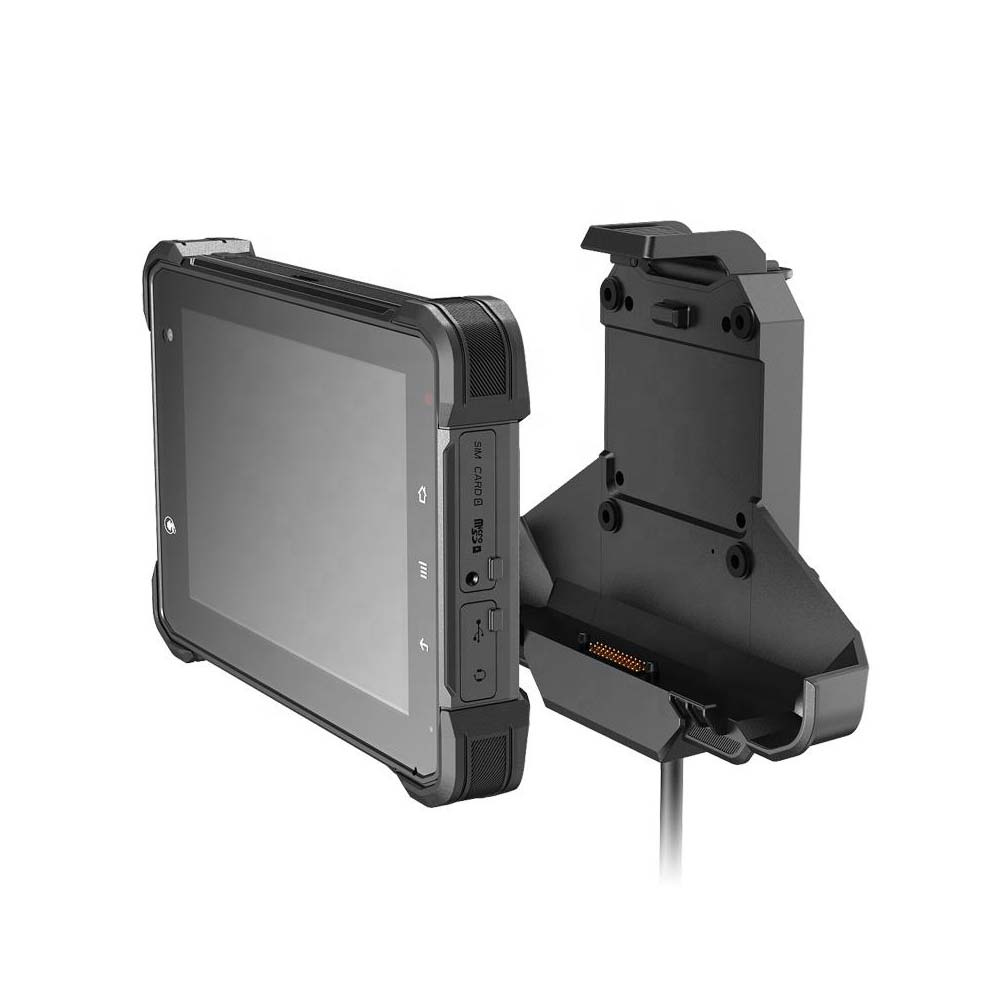

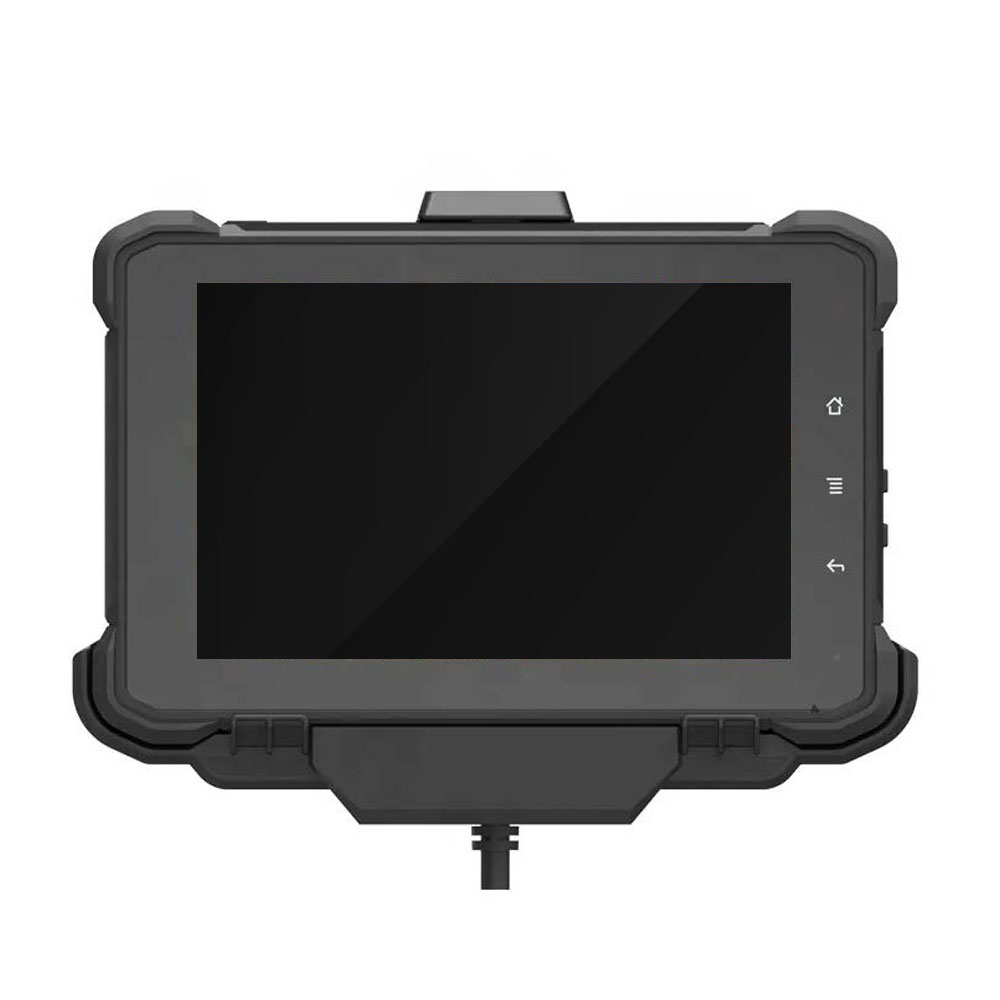

The VT7AHD is a ruggedised 7″ tablet, powered by Android. It comes with a heavy duty vehicle dock that provides 4 AHD inputs for blind spot, reversing and forward facing cameras. With an IP67 protection rating and MIL-STD-810G vibration rating, this unit is designed to withstand tough industrial environments.
Features
- IP67 water/dust protection rating
- MIL-STD-810G American military standard vibration rating
- Heavy duty vehicle dock with 4 X AHD camera inputs
- 1.8 GHz Qualcomm Cortex-A53 64-bit octa-core processor
- Expandable MicroSD storage, up to 512 GB
- Replaceable Li-polymer 5000 mAh battery provides approx. 5 hours use between charges.
- Multi-point capacitive touch screen
- Android 9.0 operating system
- SDK available for expanding functionality
Specifications
| System | |
| CPU | Qualcomm Cortex-A53 64-bit Octa-core Processor, 1.8GHz |
| GPU | Adreno 506 |
| Operating System | Android 9.0 |
| RAM | 2 GB LPDDR3 |
| Storage | 16 GB eMMC |
| Storage Expansion | Micro SD, supports up to 512 GB |
| Communication | |
| Mobile Broadband | 4G |
| Bluetooth | BLE 4.2 |
| WLAN | IEEE 802.11 a/b/g/n/ac; 2.4GHz/5GHz |
| GNSS | GPS / GLONASS |
| Functional Module | |
| LCD | 7 Inch digital IPS panel, 1280 x 800 |
| Touchscreen | Multi-point capacitive touch screen |
| Sound | Integrated microphone | Integrated speaker 2W |
| Interfaces (on tablet) | USB Type-C, SIM, Micro SD, 3.5 mm headphone jack, docking connector |
| Sensors | Gyroscope, accelerometer |
| AHD Video Input | 4 x 720p/1080p AHD – PAL, 25 frames per second; |
| Video and Audio Compression | |
| Image format | PAL / NTSC | 720p / 1080p |
| Dual Stream | Support Dual Stream |
| Video bit rate | 192 Kbps – 4096 Kbps (per channel) |
| Physical Characteristics | |
| Power | 9 – 36 VDC | 3.7V, 5000mAh battery |
| Dimensions | 207.4 × 137.4 × 30.1 mm |
| Weight | 785 g |
| Environment | |
| Drop Test | 1.2 m drop resistance |
| Vibration Rating | MIL-STD-810G |
| Protection Rating | IP67 |
| Operating Temperature | -10 ~ 65 °C |
| Storage Temperature | -20 ~ 70 °C |

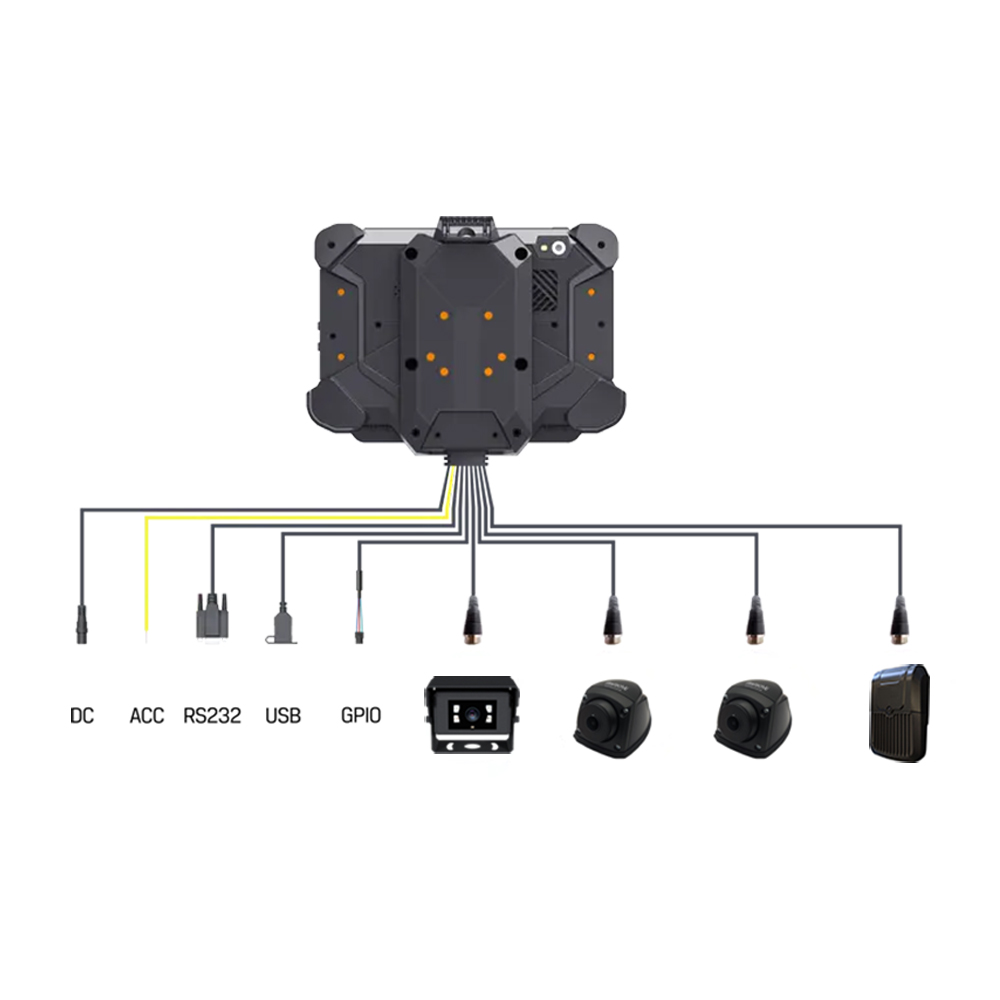

| Docking Station | |
| USB2.0 (Type-A) | x1 |
| RS232 | x2 |
| ACC | x1 |
| Power | x1 ( 9 – 36 VDC ) |
| GPIO | x2 |
| AHD | x4 |
