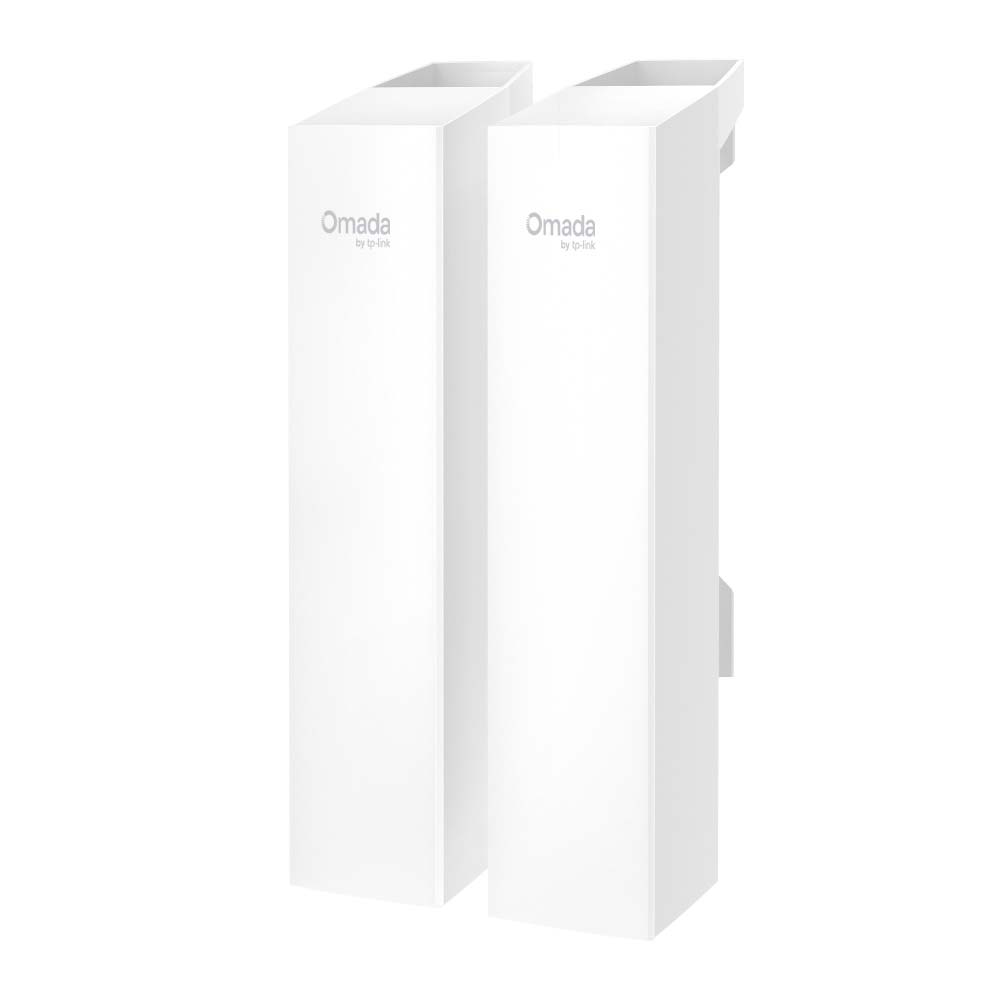

Omada 5GHz 867Mbps Wireless Bridge

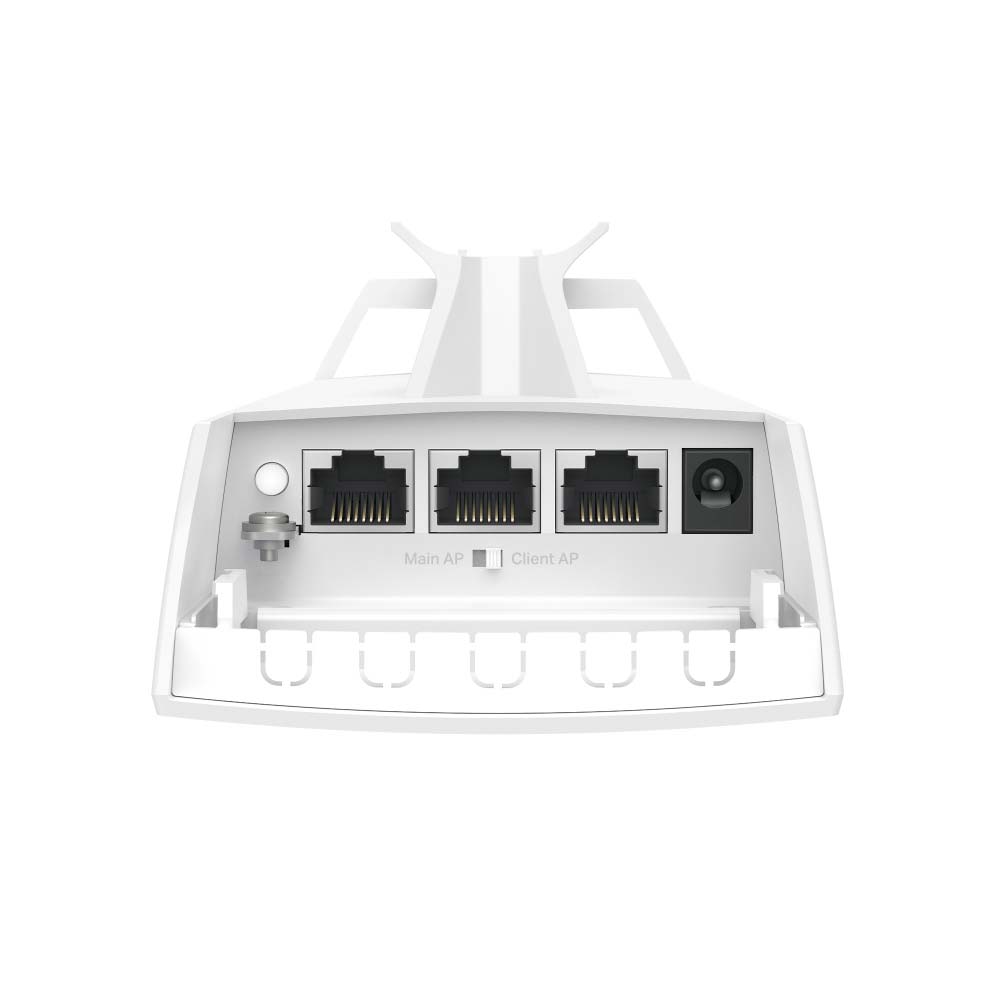

Omada 5GHz 867Mbps Wireless Bridge - Image 2

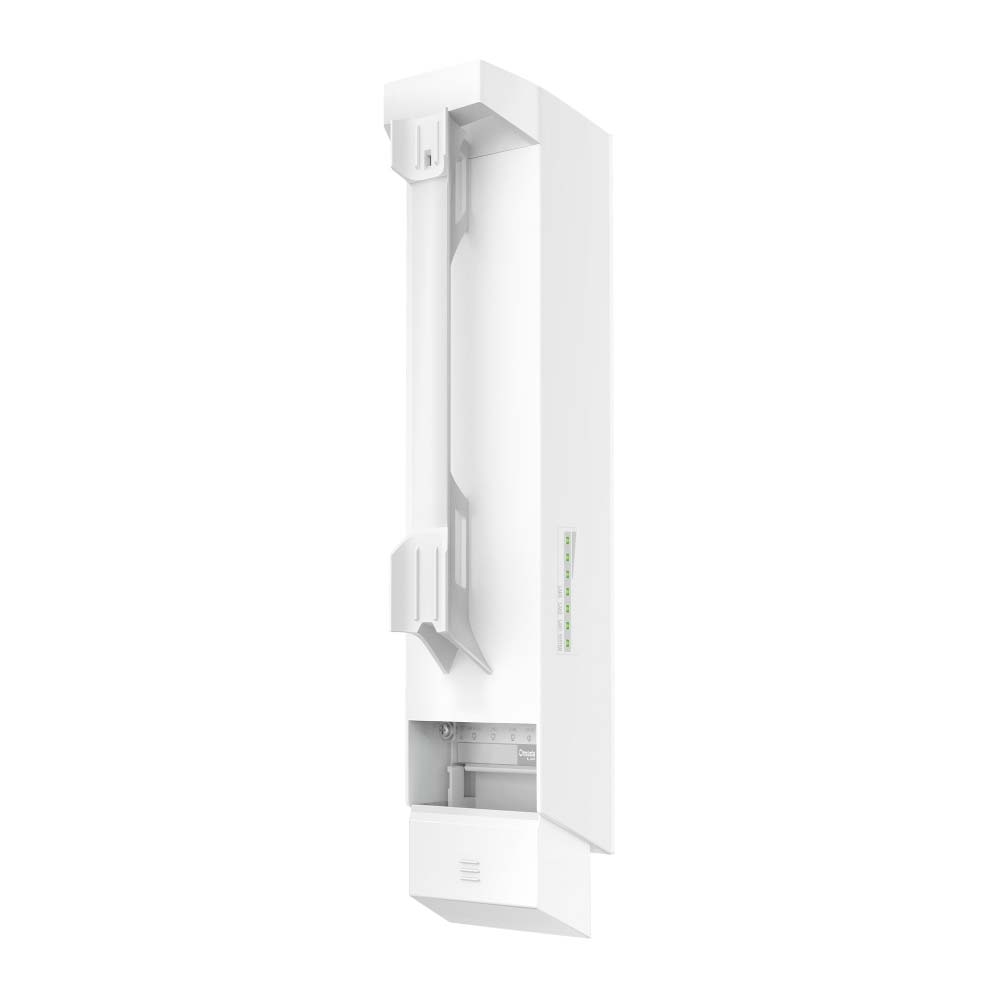

Omada 5GHz 867Mbps Wireless Bridge - Image 3
OM-EAP215

Omada 5GHz 867Mbps Wireless Bridge

Long-Range Indoor/Outdoor Wireless Bridge

Categories: , , , Brand:

Description

Features
  • Up to 5 km Transmission Distance*
  • Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
  • Plug-and-Play with Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box.
  • Unique Design for Multi-Bridge Auto-Pairing: Effortlessly connect multiple bridges with PtMP Auto-Pairing. Simply dial the role switch and press the pair button-no portal login needed. Supports up to 1-to-4 multi-bridge connections.
  • App-Guided Alignment: Visualised App-Guided Alignment for Long-Distance Setups and Instant Speed Testing for Installation Verification.
  • Flexible Power Supply: 802.3af PoE (1,2pins; 3,6pins), 24V Passive PoE (+4,5pins; -7,8pins), and 12V DC (compatible with TP-Link solar power supply system)
  • 3× Gigabit Ethernet Ports: Connects more cameras and devices without an extra switch
  • Built for Tough Outdoor Conditions: IP65 weatherproof enclosure and operating range of -40 °C to +70 °C.**
  • Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralised management via Web UI or App
Datasheet_EAP215-Bridge KIT v3.20
HARDWARE FEATURES
Interface 3x Gigabit Ethernet Ports
Button Reset
DIP Switch Role Switch
Power Supply 12V DC
802.3af PoE (1,2pins; 3,6pins)
24V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included)
Max. Power Consumption 11.5W
Dimensions ( W x D x H ) 79 × 60 × 276 mm
Antenna Internal 2×2 Dual-polarized directional MIMO antennas
5 GHz: 14.0 dBi
Horizontal:43°, Vertical: 18°
Weatherproof Enclosure IP65
Mounting Pole and wall mounting ( Pole accessories included)
WIRELESS FEATURES
PtP Yes
PtMP Supports up to 1:4 multi-bridge connections.
Transmission Distance 5,000 m
Wireless Standards IEEE 802.11 a/n/ac
Frequency 5 GHz
Signal Rate 5 GHz: Up to 867 Mbps
Wireless Functions • MU-MIMO: 5G 2×2 MU-MIMO DL
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• Static IP/Dynamic IP
• Rate Limit
• Guest Network
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
Wireless Security • VLAN
• Rogue AP Detection
• Maximum number of MAC Filter: 4,000
• Wireless Encryption
Transmission Power • CE:
<23dBm (5 GHz, band 1/2, EIRP)
<30dBm (5 GHz band3, EIRP)• FCC:
<23.5dBm (5 GHz band1)
<25dBm (5 GHz band4)
Management Features
Omada App Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
Centralized Management • Omada Central (Cloud-Based)
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Require the use of an Omada Controller.
Email Alerts Yes
LED ON/OFF Control Yes
SNMP Yes
SSH Yes
Web-based Management Yes
Zero-Touch Provisioning Yes
OTHERS
Certification CE, FCC, RoHS
Package Content • EAP215-Bridge KIT
• Installation Guide
• Mounting Kit
• Passive PoE Adapter
Lightning Protection • Air discharge: ±8kV
• Contact discharge: ±4kV
• Common mode 10/700: ±6kV
Environment • Operating Temperature: -40 °C–70 °C
• Storage Temperature: -40 °C–70 °C
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
