| HARDWARE FEATURES |
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface |

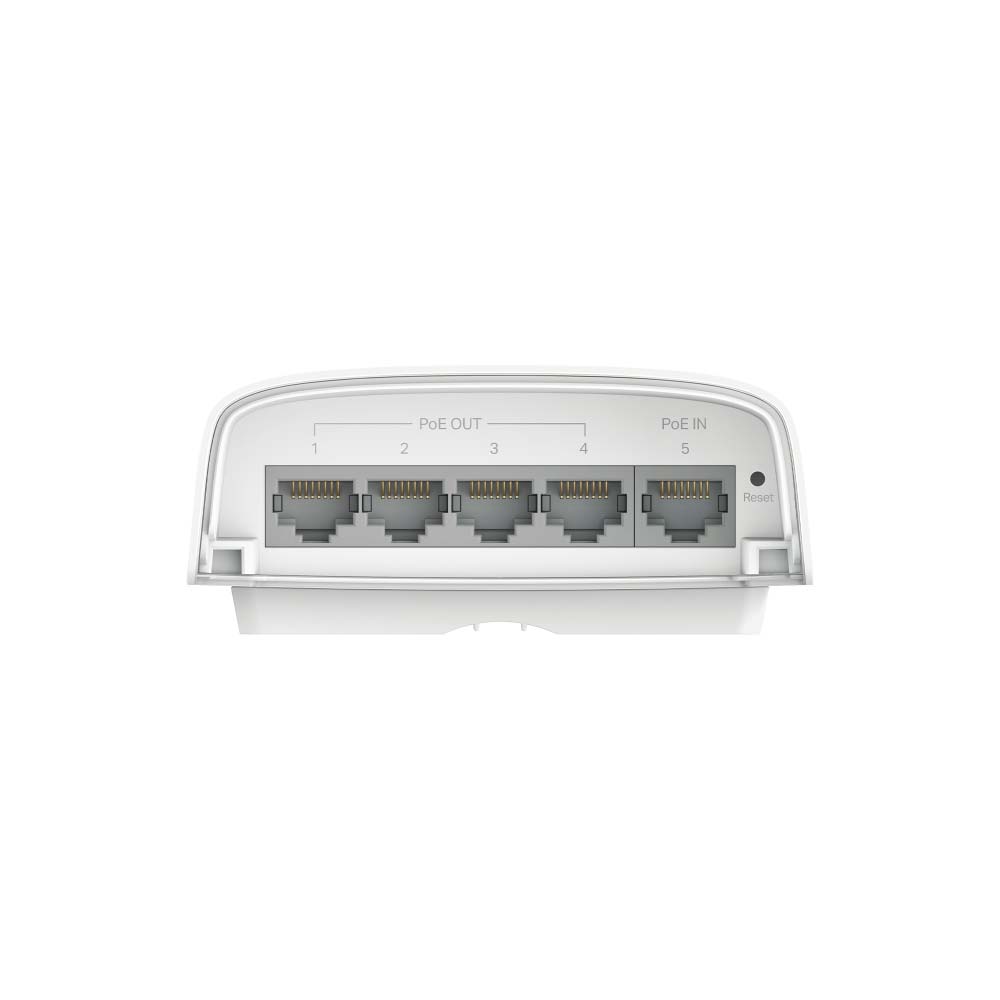

1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt)
4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE) |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity |
Fanless |
| Power Supply |
Obtain Power from 802.3af/at/bt PoE Source |
| PoE Ports (RJ45) |
PoE In Port: Port 5, Compliance with 802.3af/at/bt
PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE
PoE Power Budget:
-64 W when powered by 802.3bt Type 4 (90 W)
-44 W when powered by 802.3bt Type 3 (60 W)
-19 W when powered by 802.3at
-6 W when powered by 802.3af |
| Dimensions ( W x D x H ) |
3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm) |
| Max. Power Consumption |
71.5 W (when powered by 802.3bt Type 4 (90 W)) |
| Max. Heat Dissipation |
243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W)) |
| PERFORMANCE |
| Switching Capacity |
10 Gbps |
| Packet Forwarding Rate |
7.44 Mpps |
| MAC Address Table |
8k |
| Packet Buffer Memory |
4.1 Mbit |
| Jumbo Frame |
9 KB |
| SOFTWARE FEATURES |
| Quality of Service |
802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
– SP (Strict Priority)
– WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
– Port/Flow-based Rating Limit
Smoother Performance
Storm Control
– Multiple Control Modes(kbps/ratio)
– Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features |
32 IP Interfaces
– Support IPv4/IPv6 Interface
Static Routing
– 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
– DHCP Interface Relay
– DHCP VLAN Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
– Static link aggregation
– 802.3ad LACP
– Up to 8 aggregation groups and up to 8 ports
per group
Spanning Tree Protocol
– 802.1D STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
Loopback Detection
Flow Control
– 802.3x Flow Control
Mirroring
– Port Mirroring
– CPU Mirroring
– One-to-One
– Many-to-One
– Flow-Based
– Ingress/Egress/Both
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED |
| L2 Multicast |
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
– IGMP Snooping Querier
– Static Group Config
Multicast VLAN Registration (MVR)
Multicast Filtering
MLD Snooping
– MLD v1/v2 Snooping
– Fast Leave
– MLD Snooping Querier
– Static Group Config
Limited IP Multicast (256 profiles and 16 entries per profile) |
| Advanced Features |
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule |
| VLAN |
VLAN Group
– Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN |
| Access Control List |
Support up to 230 entries
Time-Range
– Time Slice
– Week Time-Range
– Absolute Time-Range
– Holiday
Time-based ACL
MAC ACL
– Source MAC
– Destination MAC
– VLAN ID
– User Priority
– Ether Type
IP ACL
– Source IP
– Destination IP
– IP Protocol
– TCP Flag
– TCP/UDP Source Port
– TCP/UDP Destination Port
– DSCP/IP TOS
IPv6 ACL
Combined ACL
Rule Operation
– Permit/Deny
Policy Action
– Mirror
– Rate Limit
– Redirect
– QoS Remark
ACL Rules Binding
– Port Binding
– VLAN Binding
Actions for flows
– Mirror (to supported interface)
– Redirect (to supported interface)
– Rate Limit
– QoS Remark |
| Security |
AAA
802.1X
– Port-based authentication
– MAC (Host) based authentication
– Authentication Method includes PAP/EAP-MD5
– MAB
– Guest VLAN
– Support Radius authentication and accountability
IP/IPv6-MAC Binding
– 512 Binding Entries
– DHCP Snooping
– DHCPv6 Snooping
– ARP Inspection
– ND Detection
IP Source Guard
– 253 Entries
– Source IP+Source MAC
IPv6 Source Guard
– 183 Entries
– Source IPv6 Address+Source MAC
DoS Defend
Static/Dynamic/Permanent Port Security
– Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
– kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control |
| IPv6 |
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
– DHCPv6 Client
– Ping6
– Tracert6
– Telnet (v6)
– IPv6 SNMP
– IPv6 SSH
– IPv6 SSL
– Http/Https
– IPv6 TFTP |
| MIBs |
MIB II (RFC1213)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBs
RMON MIB(RFC1757, rmon 1,2,3,9) |
| Management Features |
| Omada App |
Yes, through
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller |
| Centralized Management |
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller |
| Cloud Access |
Yes, through
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller |
| Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features |
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Content |

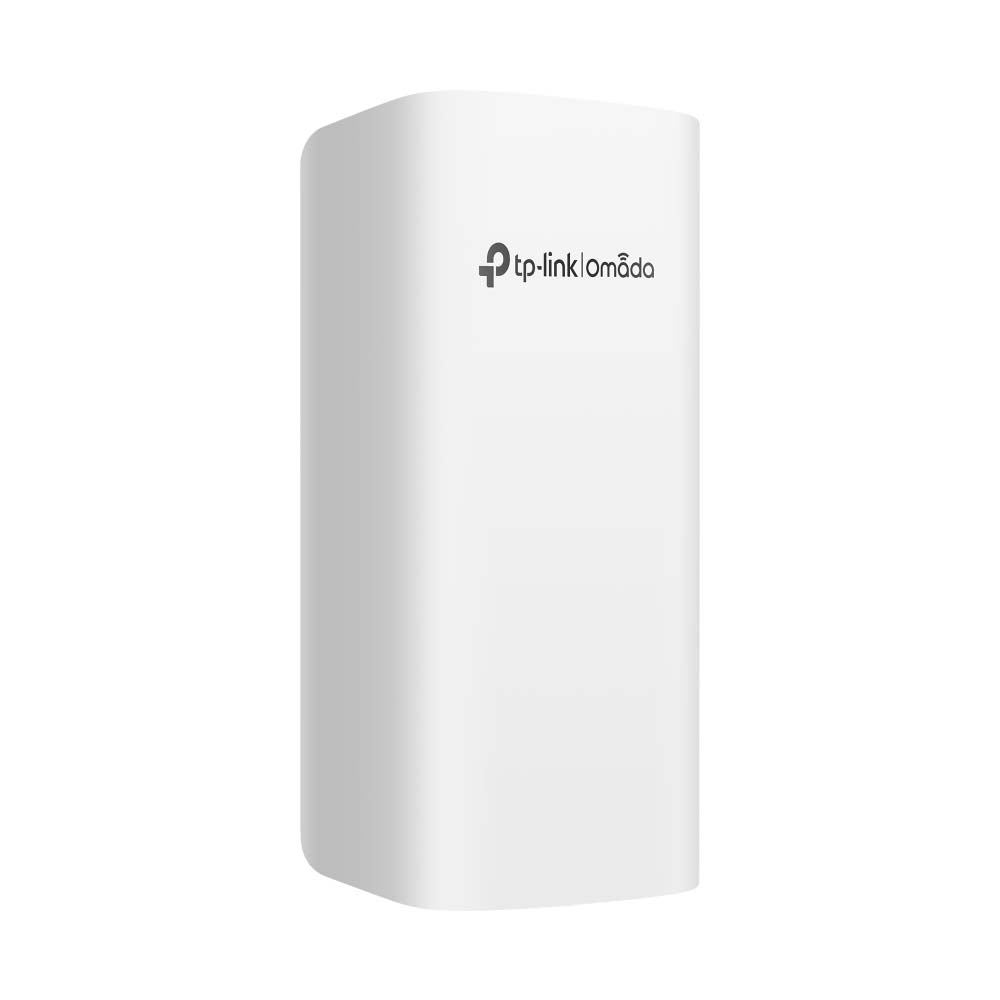

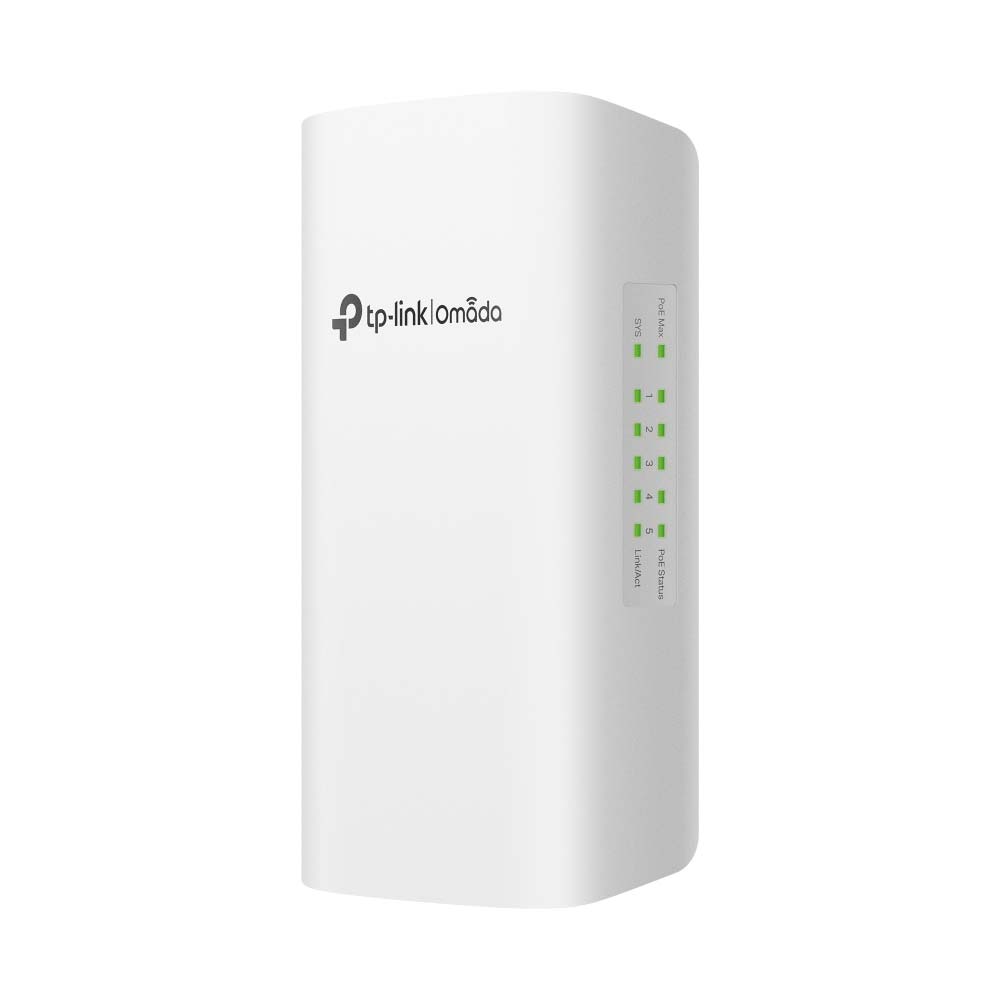

SG2005P-PD
Mounting Kits
Installation Guide |
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature: -40 to 60 °C (-40 to 140 °F)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing |
