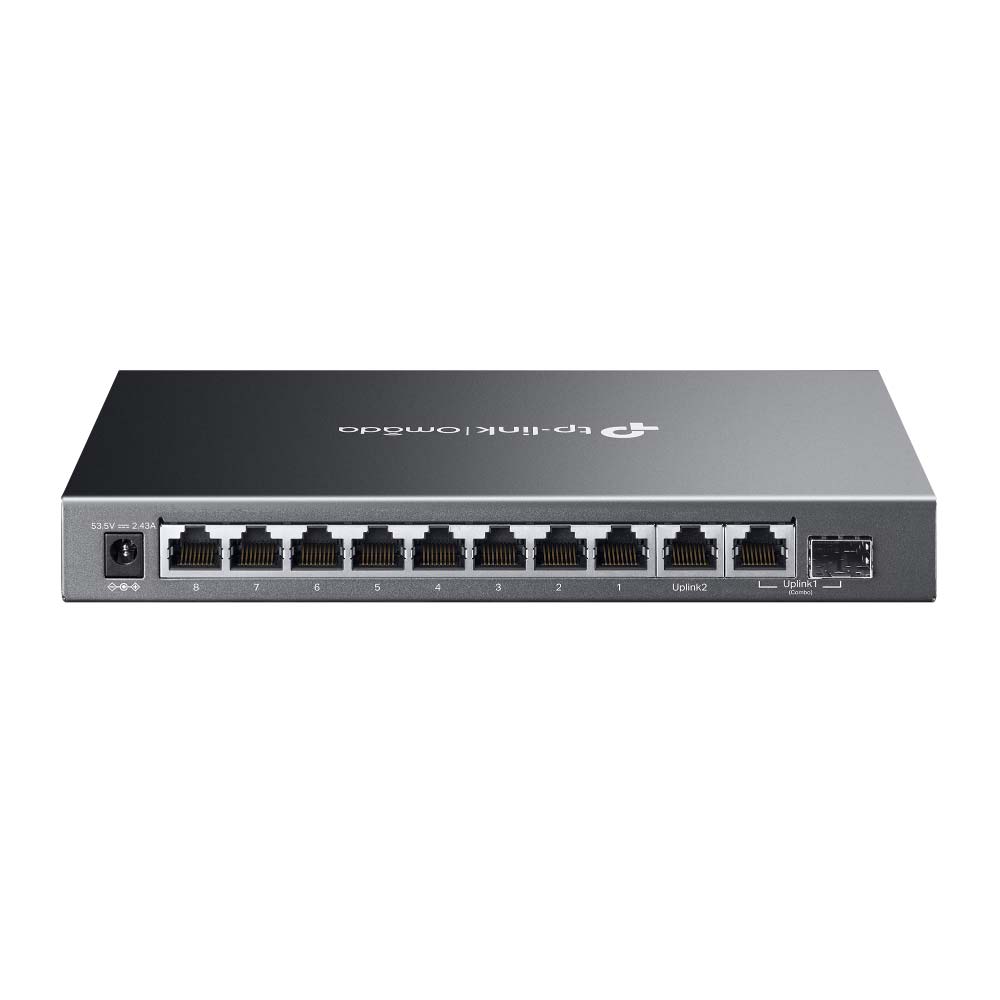

Name: Omada 10-Port Gigabit 8-Port PoE+ Switch
SKU: OM-ES210GMP

Description

Features

9× 10/100/1000Mbps RJ45 ports (8× 802.3af/at-compliant PoE+)
1× Gigabit SFP/RJ45 Combo port
123W Power Budget, with up to 30W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app
Up to 250m PoE**, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

HARDWARE FEATURES
Interface	8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) 1× 10/100/1000 Mbps RJ45 Port 1× Gigabit SFP/RJ45 Combo Port Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless
Installation	Desktop Wall Mount
Physical Security Lock	√
Power Supply	DC Power Adapter (Output: 53.5V DC / 2.43A)
PoE Ports (RJ45)	Standard: 802.3af PoE and 802.3at PoE+ compliant PoE Ports: 8 ports PoE Budget: 123W available for all PoE+ ports, 30W max per port PoE Auto Recovery^‡ Up to 250m PoE transmission distance**
Dimensions ( W x D x H )	8.2×4.9×1.0 in (209×126×26 mm)
Surge Protection	±6kV
PERFORMANCE
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB
SOFTWARE FEATURES
Quality of Service	Port-based/802.1p/DSCP QoS 8 Priority Queues Priority Schedule Mode – WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control – Port-Based Rating Limit Storm Control – Multiple Control Modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control^△
L2 Features	Static Link Aggregation Loop Prevention / Loopback Detection Flow Control – 802.3x Flow Control Mirroring – Port Mirroring – One-to-One – Many-to-One – Ingress/Egress/Both Port Statistics – Port Mirror Status – Traffic Statistics 802.1ab LLDP
L2 Multicast	IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave
VLAN	MTU VLAN Port-Based VLAN 802.1Q Tag VLAN – Max 32 VLAN Groups – 4K VID
Transmission Method	Store-And-Forward
Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	Web-based GUI DHCP Client Cable Diagnostics Automatic Device Discovery^† Batch Configuration^† Batch Firmware Upgrading^† Unified Configuration^†
OTHERS
Certification	FCC, CE, RoHS
Package Content	ES210GMP Power Adapter Installation Guide Rubber Feet
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

^†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller.

^‡This switch supports PoE Auto Recovery under Standalone Mode (managed separately without a controller) and supports manual PoE Recovery under Controller Mode (centrally managed with a controller).

^△QoS and Priority Mode are supported under Standalone Mode.

*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.

**The speed of the ports that support 250m PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables.
