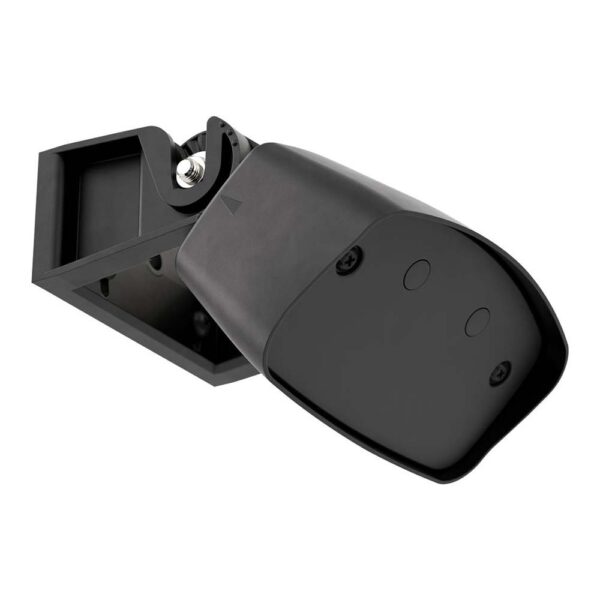

HR-IDS

Industrial Door Sensor

Microwave, Uni-directional, Human & Vehicle Detection

Category:

Description

The HR-IDS is an advanced microwave sensor capable of detecting and distinguishing between humans and vehicles. Detection is fast and uni-directional for ultimate door control. Increase safety and energy efficiency in warehouses, logistics centers, cool stores, and more.

Features
  • High Mount: Can be installed at heights of up to 7m and easily programmed using our Robus-RC remote control (sold seperately).
  • Durable & Strong: Rugged, waterproof (IP67) housing ideal for installation in harsh industrial environments.
  • Reduced Building Energy Losses: Ability to distinguish between vehicular and pedestrian traffic minimises building energy losses.
  • Simple to Install: Swivel mounted sensor head for simple detection field adjustment. User-friendly sensor adjustments via integrated push buttons on the sensor body or through the Robus-RC remote control (sold seperately).
Detection Method K-Band 24.150 – 24.250GHz
Installation Height Max. 7000 mm
Sensor Dimensions 131mm (W), 73mm (H), 98mm (D)
Presence Timer None
IP Rating IP67
Power Supply 12–36 VDC / 12–28 VAC
Power Consumption Less than 1W
Operating Temperature -30 ~ 60 °C
Weight 320g (without cable), 650g (with cable)
