Description

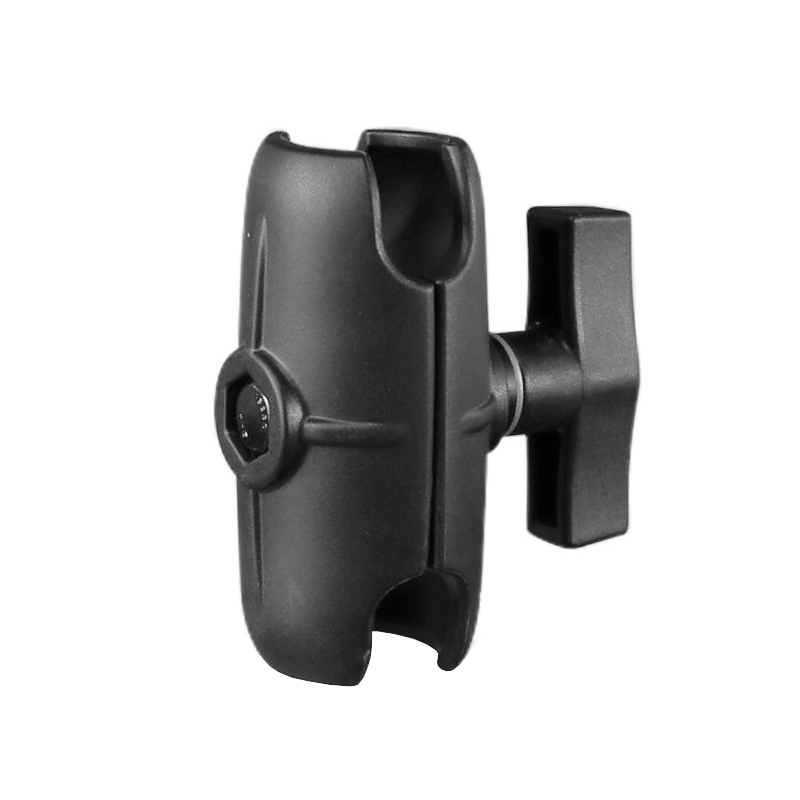

The HDMount 95 mm Connector Arm (1.5″ Ball) provides high-strength articulation and rigid locking in demanding commercial, industrial, agricultural, and transport vehicle cabins. Designed around the heavy-duty 1.5″ (C-size) ball system, it provides significantly higher clamping power and payload support than standard 1″ arms, making it ideal for heavy commercial monitors, ruggedised tablet docks, and telematics terminals.
Measuring 95 mm in overall length with 75 mm between ball centres, this compact arm delivers a sturdy, low-profile connection that keeps heavy displays close to the dashboard, bulkhead, or roll cage. The short moment arm minimises leverage and vibration amplification across rough terrain, while the single ergonomic adjustment knob controls tension across both ball sockets for quick multi-axis adjustment and tool-free locking.
Key Features
- Heavy-Duty 1.5″ (C-Size) Ball System: Engineered for high payload demands, providing superior holding power that resists drooping, slipping, or drifting under severe shock and vibration.
- Compact Low-Profile Reach: 95 mm overall length (75 mm ball-to-ball) keeps heavy hardware positioned neatly within the operator’s line of sight without encroaching on cab space.
- Reduced Leverage & Shake: The shorter arm length reduces mechanical leverage, minimising screen wobble and vibration on uneven terrain or heavy plant machinery.
- Single-Knob Clamping: Heavy-duty adjustment knob allows rapid, simultaneous locking, loosening, and repositioning across both ball sockets without tools.
- Full Multi-Angle Positioning: Enables 360-degree rotation and flexible tilt articulation so drivers and operators can set the screen at an ergonomic angle.
- Commercial-Grade Build: Constructed from high-strength, corrosion-resistant cast alloy to withstand demanding fleet environments and temperature extremes.
