Description

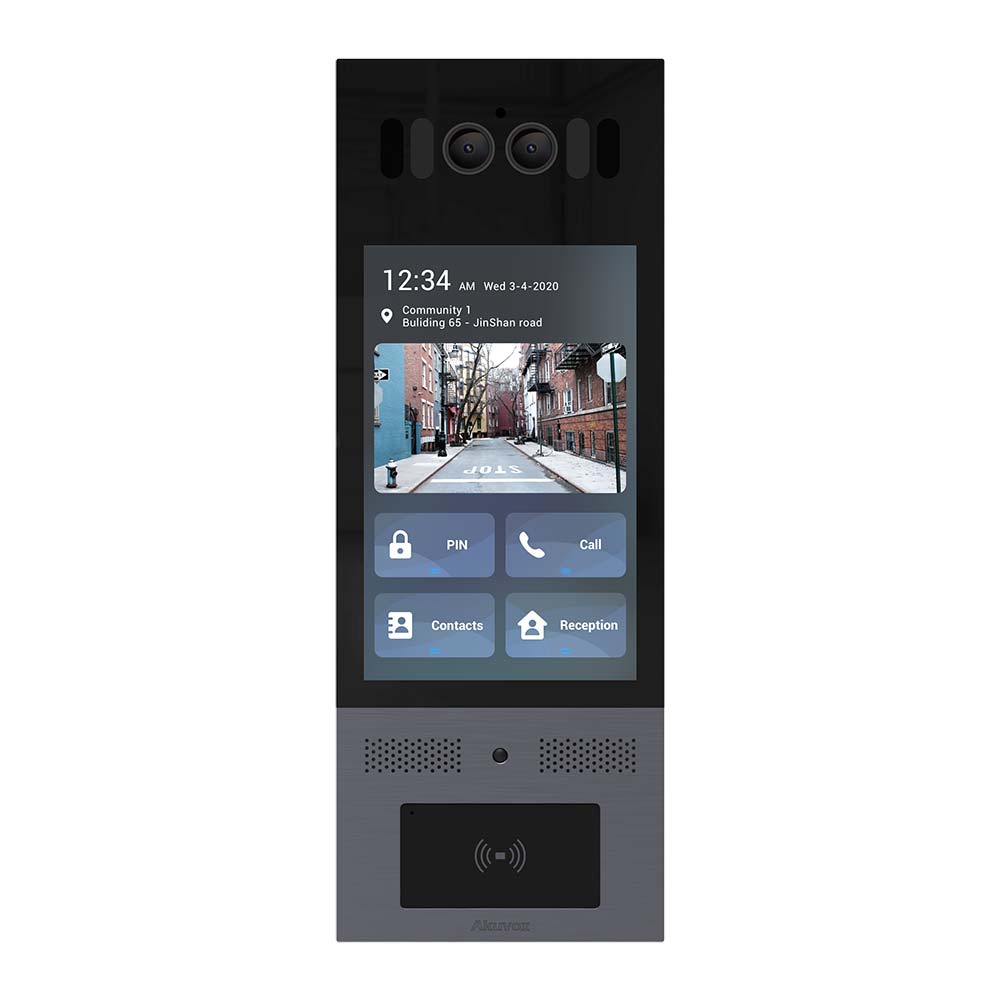

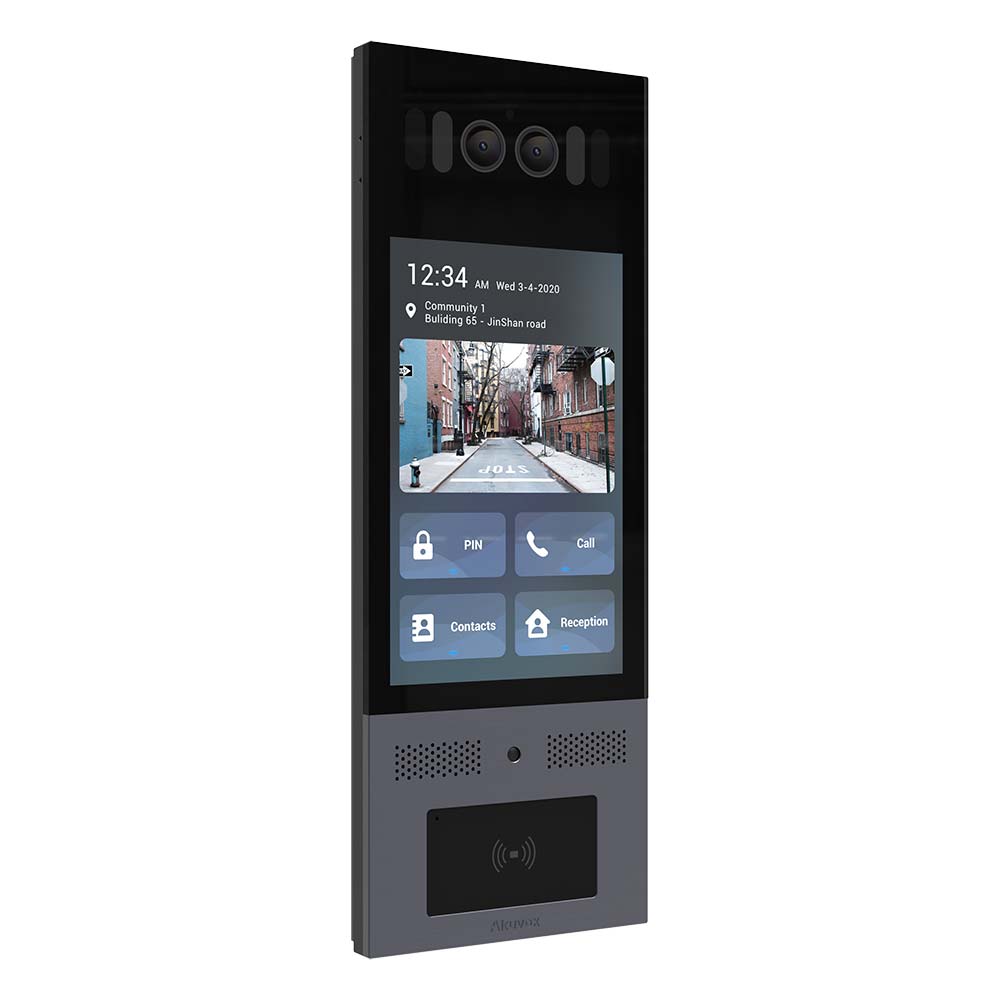

Akuvox’s X915S is designed to provide a visually stunning and intuitive user-experience. It brings a number of innovative new features to provide a fully customizable solution for occupant and visitor access control in condominiums, apartment buildings, office buildings, gated communities and industrial buildings.
Features
- Main camera features a built-in HDR mode to tackle a variety of high-contrast scenes
- Face verification accuracy >99% ; face comparison speed <0.6s per person; false recognition rate<0.1%
- Intuitive interface with color touch display for superior resident and visitor usability
- 8” fully-color touch display provides ultra-wide viewing angles
- Presents information and user navigation options unique to your business
- Supports SIP to provide reliable two-way voice & one-way video communication
- Complies with ONVIF standard for easy integration with any network surveillance system
Specifications
| Physical & Power | |
| Front Panel | 316 grade stainless steel |
| RAM / ROM | 2GB / 16GB |
| Display | 8 Inch IPS LCD |
| Main Camera | 2M pixels, with starlight |
| Light Sensor | Support |
| Infrared Sensor | Support |
| Wiegand Port | Support |
| RS485 Port | Support |
| Line Out | Support |
| RF Card Reader | 13.56MHz & 125kHz |
| Relays Out | 3 |
| Inputs | 3 |
| Microphone | 2, -42dB |
| Speaker | 2, 8Ω / 2W |
| Reset Button | 1 |
| Ethernet port | 1xRJ45, 10/100Mbps adaptive |
| IEEE 802.3at PoE+ | |
| 12~24V DC connector (if not using PoE+) | |
| IP & IK Level | IP65 & IK10 |
| Installation | Flush-mounted & Wall-mounted |
| Flush-mounted DIM | 350x130x53.9mm |
| Wall-mounted DIM | 350x130x41.6mm |
| Working Humidity | 10~90% |
| Working Temperature | -30°C ~ +60°C |
| Storage Temperature | -30°C ~ +70°C |
| Audio | |
| SIP v1 (RFC2543), SIP v2 (RFC3261) | |
| Narrowband audio codec | G.711a, G.711μ, G.729 |
| Broadband audio codec | G.722 |
| DTMF | In-band, out-of-band DTMF (RFC2833), SIP Info |
| Echo Cancellation | |
| Voice Activation Detection | |
| Comfort Noise Generator | |
| Video | |
| Sensor | 1/2.8”, CMOS for main camera |
| Pixels | CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video codec | H.264 |
| Video technology | HDR |
| Video resolution | up to 1920x1080p |
| Max. image transfer rate | 1080p – 30fps |
| Viewing angle | 115°(H) / 63°(V) |
| Compatible to 3rd-Party-Video components, e.g. NVRs | |
| Networking & Protocol | |
| Protocols support | IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Door Entry Feature | |
| Android OS for any 3rd party software or customization | |
| Relays controlled individually by DTMF tones | |
| Multi-way Unlock | Face, Card, PIN, BLE & QR code |
| Camera permanently operational | |
| Auto-night mode with LED illumination | |
| White balance | auto |
| Minimum illumination | 0.1LUX |
| Deployment & Maintenance | |
| Auto-Provisioning | |
| Web management portal | |
| Web-based packet dump | |
| Configuration backup / restore | |
| Entry log export | |
| Access table export / import | |
| Firmware upgrade | |
| System logs (include door access logs) | |
