Description

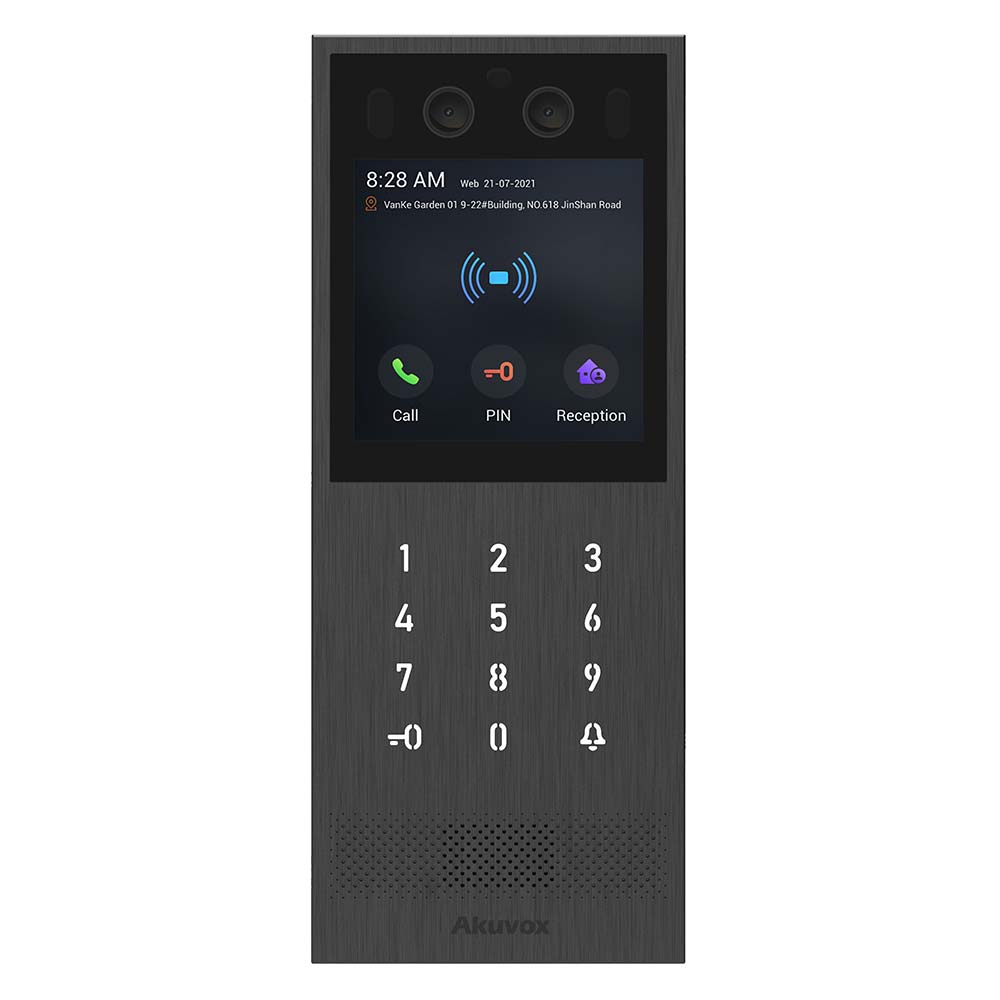

Offering top-of-the-line features, Akuvox X912 is targeted at high-end residential and commercial projects. With a compact size, it is perfect for buildings with limited installation space.
Specifications
| Physical & Power | |
| Front panel | Stainless steel |
| Display | 4 Inch, color TFT LCD, touchable |
| Camera | 2M pixels |
| Numeric button keypad | |
| Gesture detection sensor | Support |
| Wiegand port | Support |
| RS485 port | Support |
| RF card reader | 13.56MHz & 125kHz, NFC |
| Relays out | 2 |
| Inputs | 3 |
| BLE | Support |
| Line out | 1 |
| Microphone | -42dB |
| Speaker | 8Ω / 2W |
| Power out | 12V/1A（Max.） |
| Ethernet port | RJ45, 10/100Mbps adaptive |
| 802.3at Power-over-Ethernet | |
| 12V DC connector (if not using PoE+) | |
| IP & IK rate | IP65 & IK10 |
| Installation | Wall-mounted |
| Dimension | 234×94.5x34mm |
| Working Humidity | 10~90% |
| Working Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +70°C |
| Audio | |
| SIP | SIP v1 (RFC2543), SIP v2 (RFC3261) |
| Narrowband audio codec | G.711a, G.711μ, G.729 |
| Broadband audio codec | G.722 |
| DTMF | In-band, out-of-band DTMF (RFC2833), SIP Info |
| Echo Cancellation | |
| Voice Activation Detection | |
| Comfort Noise Generator | |
| Video | |
| Sensor | 1/2.8”, CMOS for main camera |
| Pixels | CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video codec | H.264 |
| Video technology | HDR |
| Video resolution | up to 1920x1080p |
| Max. image transfer rate | 1080p – 30fps |
| Viewing angle | 125°(H) / 65°(V) |
| Compatible to 3rd-Party-Video components, e.g. NVRs | |
| Networking and Protocol | |
| Protocols support | IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Door Entry Feature | |
| Relays controlled individually by DTMF tones | |
| Multi-way Unlock | Face, IC/ID Card, PIN and BLE |
| Camera permanently operational | |
| White balance | auto |
| Minimum illumination | 0.1LUX |
| Deployment & Maintenance | |
| Auto-Provisioning | |
| Web management portal | |
| Web-based packet dump | |
| Configuration backup / restore | |
| Entry log export | |
| Access table export / import | |
| Firmware upgrade | |
| System logs (include door access logs) | |
| Application Scenario | |
| Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings | |
