Description

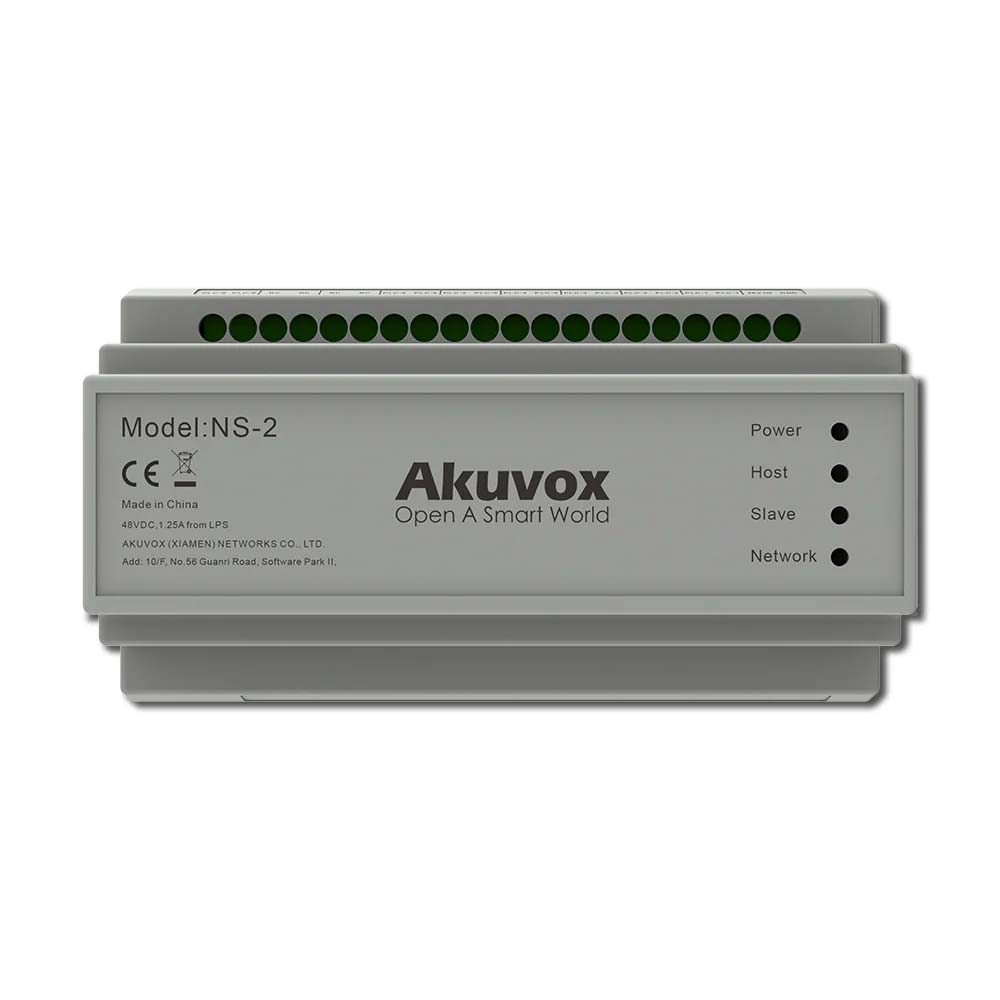

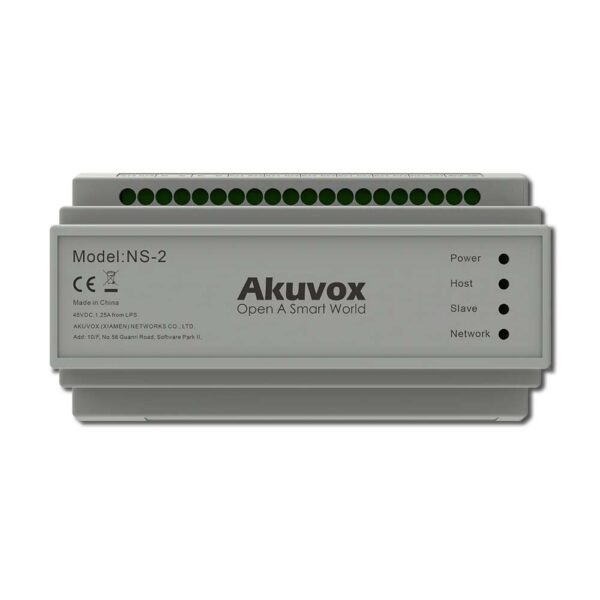

The AKU-NS-2 is Akuvox 2-wire IP network switch which provides a convenient way to upgrade analogue intercom systems, no need for rewiring. Its super long transmission distance & good compatibility with existing lines makes it fit for most of old buildings.
Features
- Support network and power supply for R20A-2 or C313W-2 through 2-wire cable
- Support multi-level cascade through 2-wire cable
- Connects up to 6 Akuvox 2-wire IP intercom devices
- Super long transmission distance via 2-wire cable
- Powerd by 48 or 24 VDC power supply unit
- Rail mounting installation
Specifications
- Communication: TCP/IP
- RJ45 port: 1 x RJ45 port, 10/100Mbps adapter
- 2-wire ports: 6 pair
- Working voltage: 48 or 24 VDC
- Status Indicator: 4
- Installation: Rail mounting
- Working temperature: -20 ~ +50 °C
- Storage temperature: -20 ~ +70 °C
- Working humidity: 10 ~ 90 %
- Dimension: 161 x 90 x 65 mm
