Description

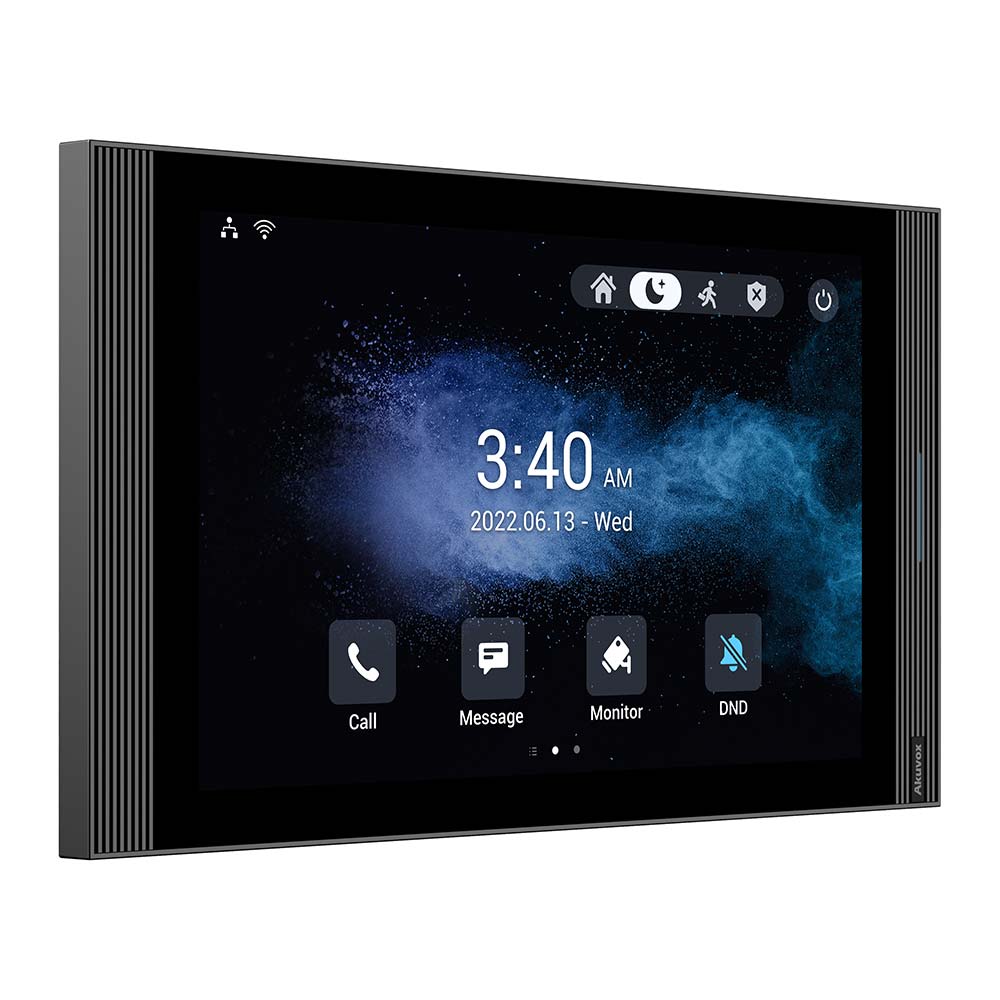

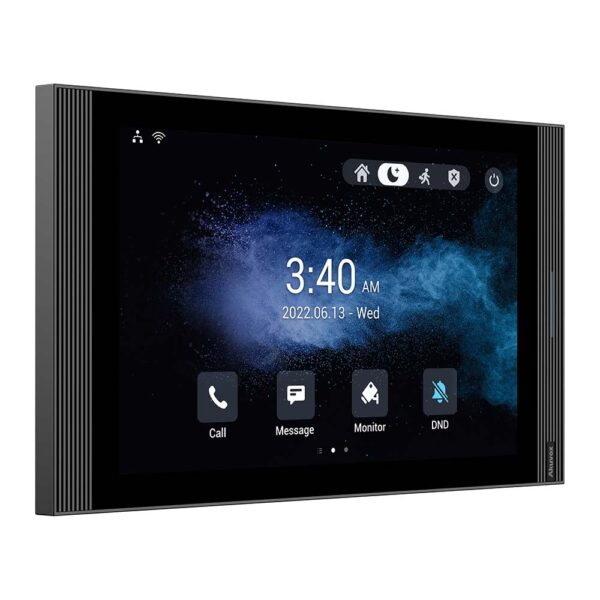

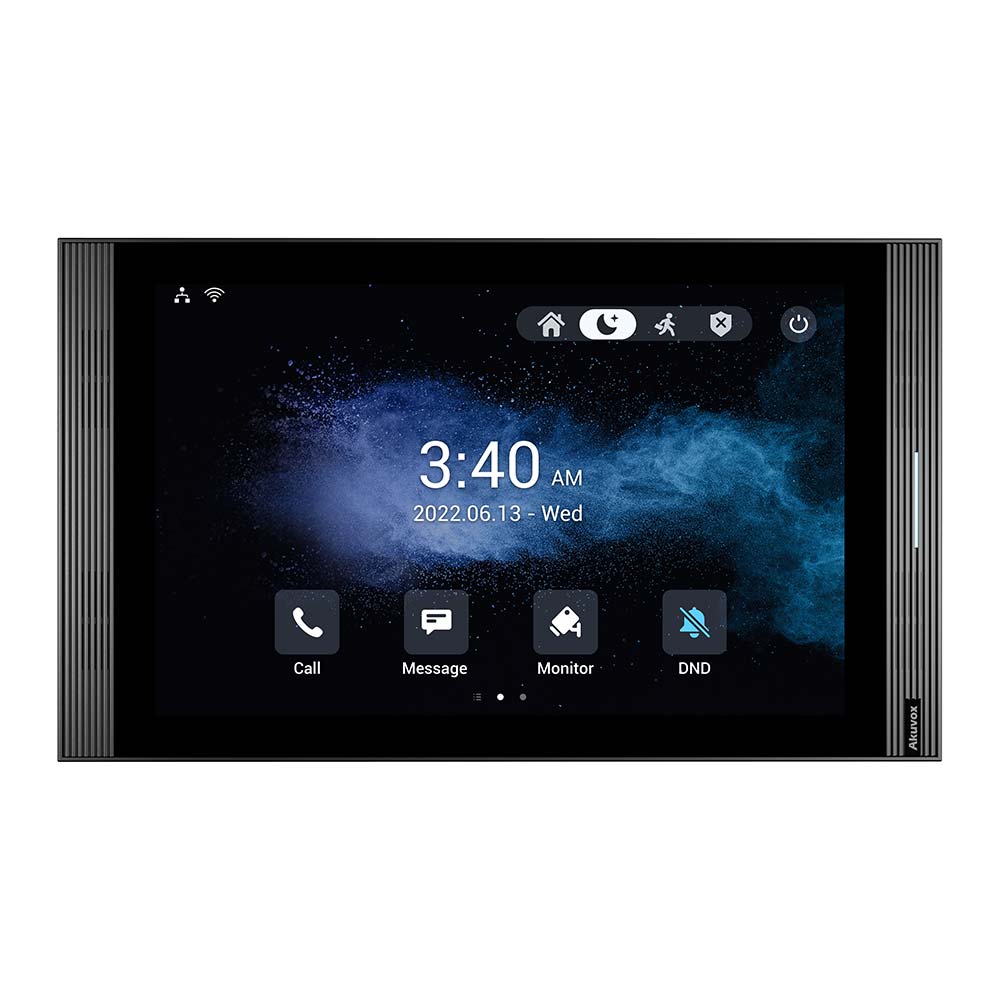

Akuvox S567 10” indoor monitor runs on the industry-leading Android 12 OS, and is equipped with Wi-Fi 6 communication technology. The dual mics and quad speakers together provides superior audio quality. With the minimalist design, S567 blends well into any modern interior design.
Specifications
| Physical & Power | |
| Front panel | Plastic |
| RAM / ROM | 4GB / 16GB |
| Display | 10-inch IPS LCD |
| Screen | 10-inch capacitive touchscreen |
| RS485 Port | 1 |
| Relays Out | 1 |
| Bell in | 1 |
| Alarm Input | 8 |
| Microphone | Dual microphones |
| Speaker | Quad speakers |
| Ethernet Ports | 1 x RJ45 |
| POE | 802.3af Power-over-Ethernet |
| Power | 12V DC Connector |
| Tamper Resistant | Support |
| Installation | Wall-mounted & Desktop |
| Dimension | 278 x 164 x 22.8 mm |
| Working Humidity | 10 ~ 90% |
| Working Temperature | -10°C ~ +45°C |
| Storage Temperature | -20°C ~ +70°C |
| Touch Screen Display | |
| Display Mode | Normally black, Transmissive |
| LCD Size | 10-inch (Diagonal) |
| Aspect Ratio | 16 |
| Resolution | 1280×800 |
| Contrast ratio | 900 |
| Luminance | 290 cd/m² |
| Viewing Angle | 80° Left, 80° Right, 80° Upper, 80° Lower |
| Touch Screen | Projected capacitive |
| Audio | |
| SIP v1 (RFC2543), SIP v2 (RFC3261) | |
| Narrowband audio codec | G.711a, G.711μ, G.729 |
| Broadband audio codec | G.722D |
| TMF | In-band, out-of-band DTMF (RFC2833), SIP Info |
| Echo Cancellation | |
| Voice Activation Detection | |
| Comfort Noise Generator | |
| Automatic Gain Control | |
| Video | |
| Streaming formats | H.263 & H.264 |
| Networking | |
| Protocols support | IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP |
| Deployment & Maintenance | |
| Auto-Provisioning | |
| Web management portal | |
| Web-based packet dump | |
| Configuration backup / restore | |
| Firmware upgrade | |
| System logs (include door access logs) | |
| Voice Assistant | |
| Voice pickup distance up to 5 meters | |
| Voice recognition accuracy up to 95% | |
| Privacy protection with native voice data | |
| Support English | |
| Application Scenario | |
| Villas and apartment complexes | |
| Home automation systems | |
| Modern interiors | |
