Description

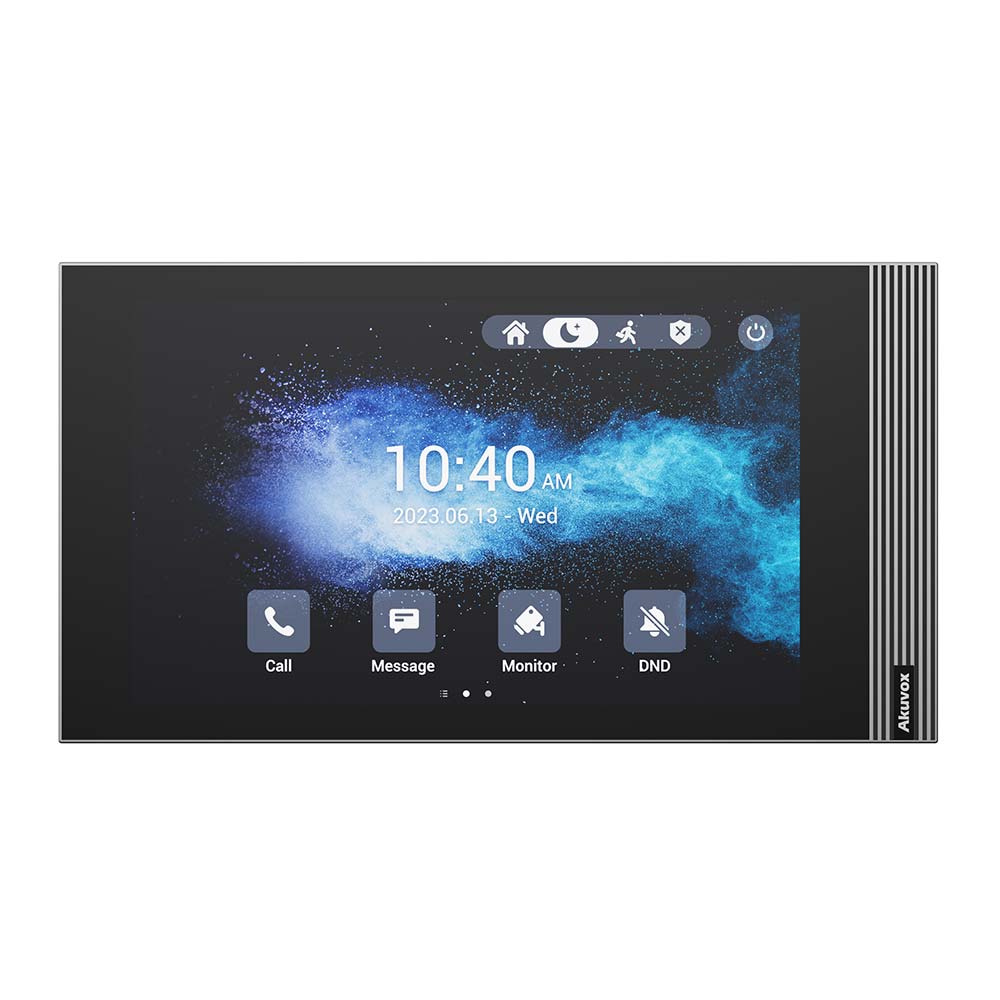

Akuvox S562 is a 7″ Linux indoor monitor featuring a stack of smart intercom features. With a compact body and stylish design, it is perfect for limited space and blends well into modern homes.
Specifications
| Physical & Power | |
| Front panel | Plastic |
| RAM/ ROM | 128MB / 128MB |
| Display | 7 Inch TFT LCD 1024×600 resolution |
| Screen | 7-inch capacitive touch screen |
| RS485 port | Support |
| Relay out | 1 |
| Bell in | 1 |
| l/0 | 8 |
| Microphone | -42dB |
| Speaker | 4Ω /2w |
| Ethernet ports | 2xRJ45, 10/10OMbps adaptive |
| 802.3af Power-over-Ethernet | |
| 12V DC connector (if not using PoE) | |
| Installation | Wall-mounted & Desktop |
| Dimension | 216.4×118.8×21 . 7mm |
| Working Humidity | 10~90% |
| Working Temperature | -10°C~ +45°C |
| Storage Temperature | -20°C~ +70°C |
| Touch Screen Display | |
| Display Mode | Normally white, Transmissive |
| LCD Size | 7 inch (Diagonal) |
| Resolution | 1024×600 |
| Contrast ratio | 600 |
| Luminance | 250 cd/㎡ |
| Viewing Angle | 50° Left, 50° Right, 40° Upper, 50° Lower |
| Touch Screen | Projected capacitive |
| Audio | |
| SIP | SIP v1 (RFC2543), SIP v2 (RFC3261) |
| Narrowband audio codec | G.711a, G.711 u, G.729 |
| Broadband audio codec | G.722 |
| DTMF | Out-of-band DTMF (RFC2833), SIP lnfo |
| Echo Cancellation | |
| Video | |
| Streaming formats | H.264 |
| Networking | |
| Protocols support | IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Deployment & Maintenance | |
| Auto-Provisioning | |
| Web management portal | |
| Web-based packet dump | |
| Configuration backup / restore | |
| Firmware upgrade | |
| System logs (include door access logs) | |
| Application Scenario | |
| Villas | |
| Apartment complexes | |
| Home automation systems | |
| Modern interiors | |
