Description

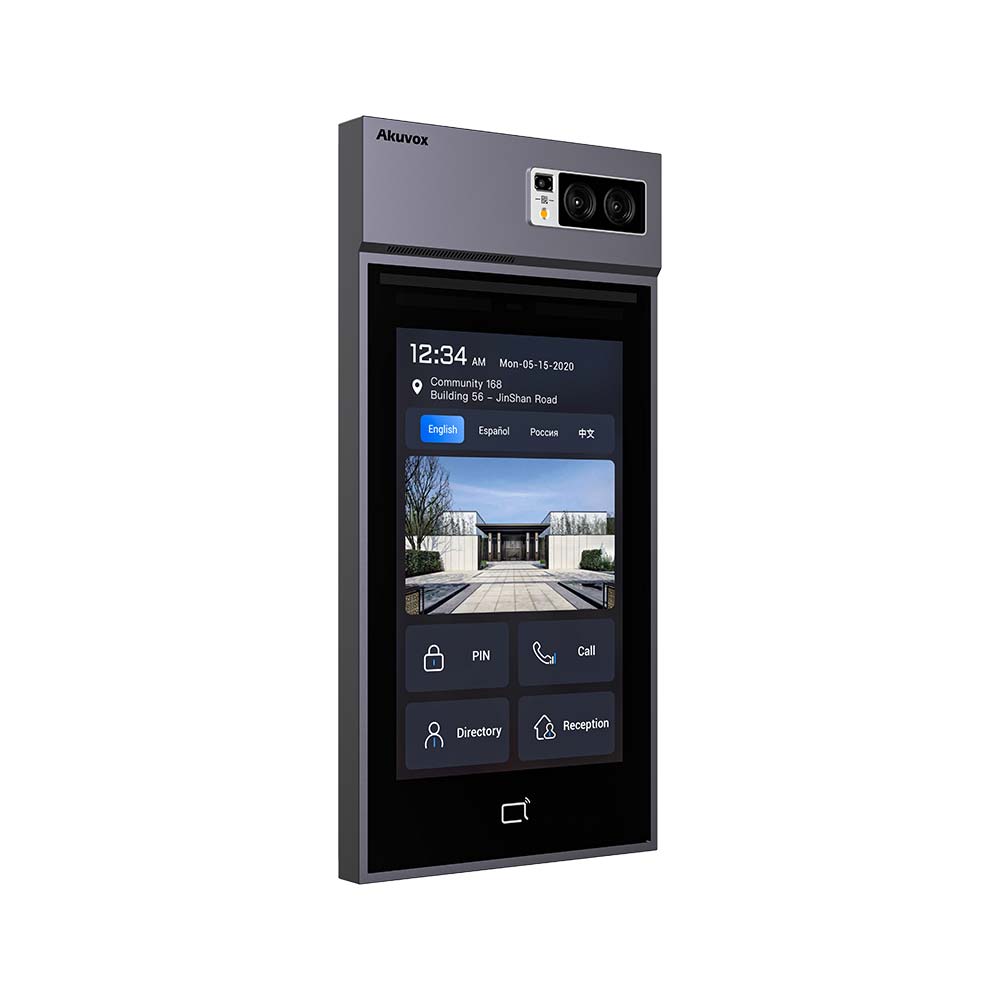

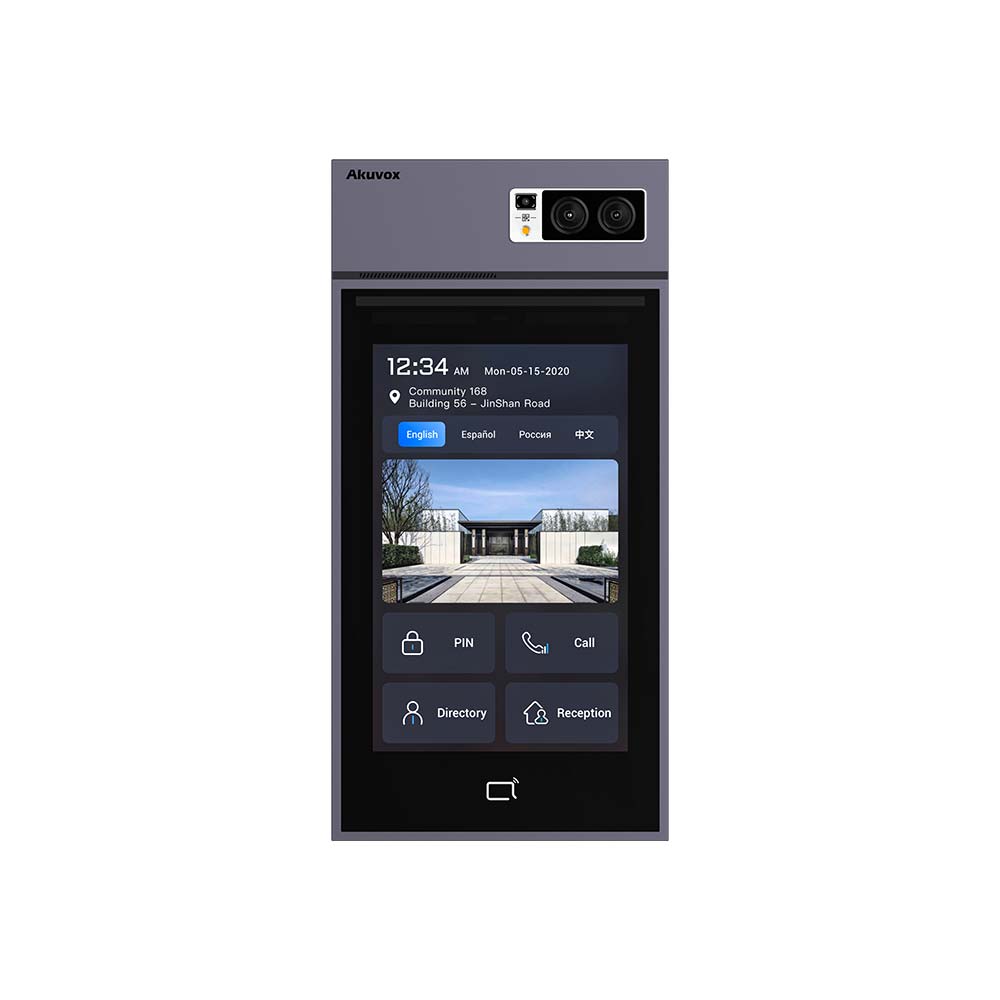

Akuvox S539 video door phone, featuring a terraced surface, a multi-functional camera module, and over 15 access control methods, is innovatively built in with an avatar. More convenient, more secure, and more interactive. The Metaverse-Intercom era is coming with S539.
Specifications
| Physical & Power | |
| Front Panel | AluminumDisplay |
| Display | 10 Inch IPS LCD |
| Main Camera | 5M pixels, with starlight |
| Light Sensor | Support |
| Motion Sensor | Support |
| ToF Sensor | Support |
| Wiegand Port | Support |
| RS485 Port | Support |
| Line Out | Support |
| RF Card Reader | 13.56MHz & 125kHz |
| Relays Out | 3 |
| Inputs | 3 |
| Microphone | 2 |
| Speaker | 2 |
| Reset Button | 1 |
| BLE | Support |
| Ethernet port | 1xRJ45, 10/100Mbps adaptiveIEEE 802.3at |
| PoE+Power | DC12V / 3A or DC24V / 1.5AIP |
| Protection | IP66 & IK08 |
| Installation | Flush-mounted & Wall-mounted |
| Flush-mounted DIM | 363.5×179.8x64mm |
| Wall-mounted DIM | 367.5x183x35.5mm |
| Working Humidity | 10~90% |
| Working Temperature | -30°C ~ +55°C |
| Storage Temperature | -30°C ~ +70°C |
| Audio | |
| SIP v1 (RFC2543), SIP v2 (RFC3261) | |
| Narrowband audio codec | G.711a, G.711μ, G.729 |
| Wideband audio codec | G.722 |
| DTMF | In-band, out-of-band DTMF (RFC2833) |
| SIP Info | |
| Echo Cancellation | |
| Voice Activation | |
| Video | |
| Sensor | 1/2.7”, CMOS for main camera |
| Pixels | CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video codec | H.264 |
| Video technology | HDR |
| Video resolution | up to 1920x1080p |
| Max. image transfer rate | 1080p – 30fps |
| Viewing angle | 120°(H) / 72°(V) |
| Compatible to 3rd-Party-Video components, e.g. NVRs | |
| Networking & Protocol | |
| Protocols support | IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Door Entry Feature | |
| Android OS for any 3rd party software or customization | |
| Relays controlled individually by DTMF tones | |
| Multi-way Unlock | Face, Card, PIN, BLE & QR code |
| Camera permanently operational | |
| Auto-night mode with LED illumination | |
| White balance | auto |
| Minimum illumination | 0.1LUX |
| Deployment & Maintenance | |
| Auto-Provisioning | |
| Web management portal | |
| Web-based packet dump | |
| Configuration backup / restore | |
| Entry log export | |
| Access table export / import | |
| Firmware upgrade | |
| System logs (include door access logs) | |
| Application Scenario | |
| Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings | |
