Description

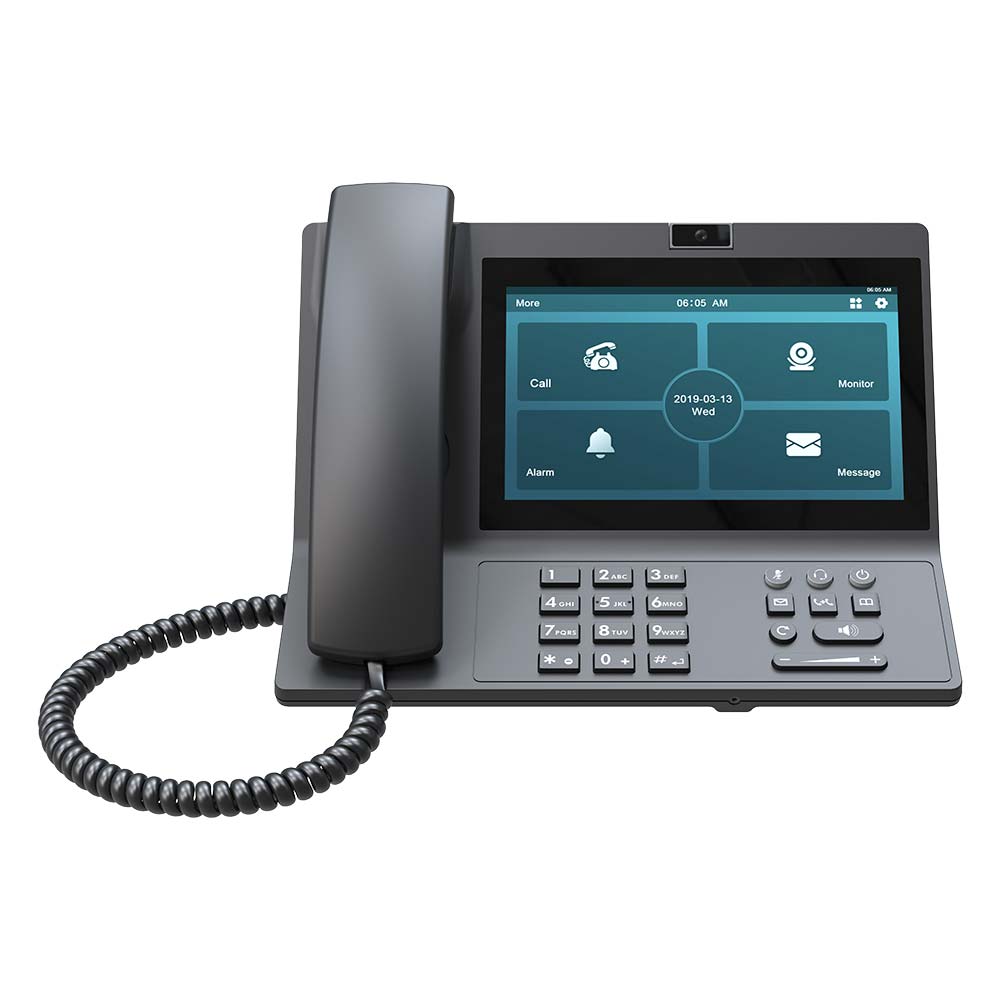

Akuvox R49G is a SIP-based Android video phone featuring a 7-inch touch screen. With two sets of UI respectively designed for commercial and residential applications, it can work as a productivity-enhancing business phone or a feature-rich intercom guard unit.
Specifications
| Video Features | |
| Video Codec | H.263, H.264, H.265, VP8 |
| Video Solution | QCIF, CIF, VGA, 4CIF, 720P |
| Video Bitrate | 64kbps-2Mbps |
| Adaptive Bandwidth Adjustment | |
| Video Character | PIP, Full Screen, Local Video ON/OFF Control, Color Enhancement |
| Image Codec | JPEG, GIF, PNG, BMP |
| Hardware Encode/Decode Acceleration | |
| Variable Bit-Rate | |
| Audio Features | |
| Wideband Audio Codec | G.722 |
| Narrowband Audio Codec | PCMA, PCMU, OPUS, iLBC, G.729 |
| Noise Suppression, VAD, CNG, AGC, | |
| Audio Accelerator | |
| Echo Cancelation | AEC, AES, NLP |
| Full-Duplex Speakerphone | |
| 4 DTMF modes | RFC2833, In-Band, SIP INFO, Auto |
| Network and Security | |
| SIP V1(RFC2543), SIP V2(RFC3261) | |
| Network Type | IPv4 & IPv6 |
| UDP Keep Alive | |
| NAT traversal | STUN |
| IP Assignment | DHCP, Static IP, PPPoE, VPN, VLAN |
| QoS | Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ) |
| Protocols | HTTP/HTTPS/FTP/TFTP/SNMP/DNS/SNTP/RTSP/SRTP/RTP/TCP/UDP/TLS/ICMP/DHCP/ARP/DNS-SRV/PNP/ZRTP |
| Digest Authentication Using MD5/MD5-sess | |
| AES encryption for configuration file | |
| Access for Administration | |
| Wireless | |
| Wideband Audio Codec | G.722 |
| Frequency | 2.400 GHz ~ 2.497 GHz |
| Channels | No |
| Bandwidth | 20MHz |
| E.I.R.P | 802.11b /11Mbps |
| E.I.R.P | 802.11g /54Mbps |
| E.I.R.P | 802.11n /65Mbps |
| Modulation mode | 802.11b |
| Modulation mode | 802.11g/n |
| Bluetooth | E.I.R.P 11dBm |
| Antenna type | Monopole Antenna |
| Phone Features | |
| Android 9.0 Operation System | |
| Support 2 SIP accounts | |
| Call Waiting | |
| Call Transfer | |
| Call Hold | |
| Mute | |
| Auto Redial, Call Return | |
| Speed Dial | |
| Direct IP call | |
| Dial Plan | |
| Hotline | |
| Multicast Paging | |
| Action URL/URI | |
| Local Audio/Video Call Recording | |
| Conference | |
| DND (Do Not Disturb) | |
| Volume Adjustable | |
| Ring Tones Selectable | |
| Multi-Languages Support | |
| Daylight Saving Time | |
| Default Apps | Browser, Calculator, Calendar, Camera, Clock, Contacts, Dial, Downloads, Explorer, Gallery, Message, Music, Phone Settings, Reboot Setting, Search, Settings, Sound Recorder, Surveillance, Video. |
| 3rd Party Android Applications | |
| Directory | |
| Local Phonebook up to 3000 Groups | |
| Phonebook with Contact Picture | |
| Call Logs | 600 Entries (200 Missed Calls; 200 Dialed Calls; 200 Received Calls.) |
| Intelligent Search Method | |
| Favorites | |
| Blacklist | |
| LDAP | |
| Management | |
| Firmware Local Update | USB Flash Disk |
| Firmware Remote Update | HTTP/HTTPS method on Web |
| Auto Provisioning Using FTP/TFTP/HTTP/HTTPS, PNP/DHCP Option/Manual/Automatic methods | |
| System Log Export | |
| Restore to Factory Default | |
| Configuration Managements Via LCD | |
| Physical Features | |
| 7 Inch Capacitive Touch Screen, Resolution 1024*600, 16 | 9 Wide Screen Aspect Ratio |
| 3 LED Lights (1 Power Light, 1 Network Light, and 1 Message Light) | |
| Flash Memory 8GB | |
| 2GB DDR3 Memory | |
| Foot Stand | |
| 2 Mega Pixels CMOS Camera | |
| RJ9 Handset | |
| 3.5mm Headset jack | |
| 2 RJ45 10/100/1000M Ethernet Jacks | |
| Energy Efficient Ethernet | IEEE802.3az |
| Power over Ethernet | IEEE802.3af |
| Bluetooth | |
| Wireless Access | 802.11b/g/n |
| 1 Type C | |
| 1 HDMI Video Out Port | |
| Power Adapter | AC 100~240V Input, DC 12V/1A Output |
| Dimensions | 250x210x98 (mm) |
| Operating Temperature | 0 ~ 40 °C |
| Storage Temperature | -20 ~ 70 °C |
| Operating Humidity | 10% to 90% Noncondensing |
| Storage Humidity | 10% to 90% Noncondensing |
| Power consumption (approx.) | 12W |
| Weight (approx.) | 1.72kg |
| Giftbox Size | 498x254x148(mm) |
