Description

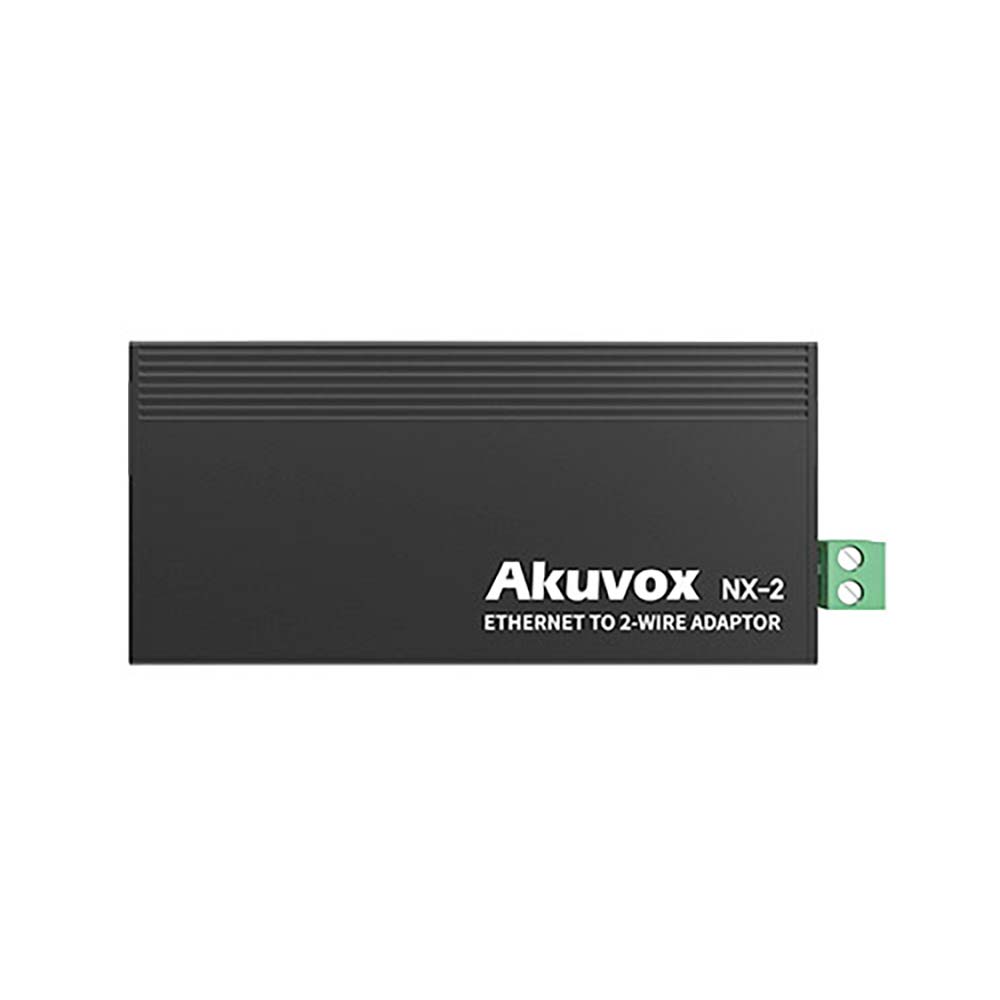

The AKU-NX-2 is an Akuvox 2-wire IP network adaptor that provides a convenient way to upgrade analog intercom systems, with no need for rewiring. Its super long transmission distance & good compatibility with existing lines make it fit for most of the old buildings.
The Akuvox NX-2 provides both network and power supply to Akuvox’s 2-wire IP intercom products and can work with Akuvox’s NC-2 to link Akuvox’s non-2-wire door phones to the 2-wire IP intercom network, streamlining the upgrade process.
Includes
- 1 × NX-2 Adaptor
- 1 × NC-2 Adaptor
Features
- Supports PoE input
- Long transmission distance via 2-wire cable
- Supports paired use with Akuvox NC-2
- Powered by PoE
NX-2 Specifications
- Communication: TCP/IP
- RJ45 port: 1 x RJ45 port, 10/100Mbps adapter
- 2-wire ports: 1 pair
- PoE：Input
- Working temperature: -10℃~+50℃
- Storage temperature: -20℃~+70℃
- Working humidity: 10%~90%
- Dimension: 113 x 48 x 25 (mm)
NC-2 Specifications
- Communication: TCP/IP
- RJ45 port: 1 x RJ45 port, 10/100Mbps adapter
- 2-wire ports: 1 pair
- PoE：Output
- Working temperature: -10℃~+50℃
- Storage temperature: -20℃~+70℃
- Working humidity: 10%~90%
- Dimension: 113 x 48 x 25 (mm)
