Description

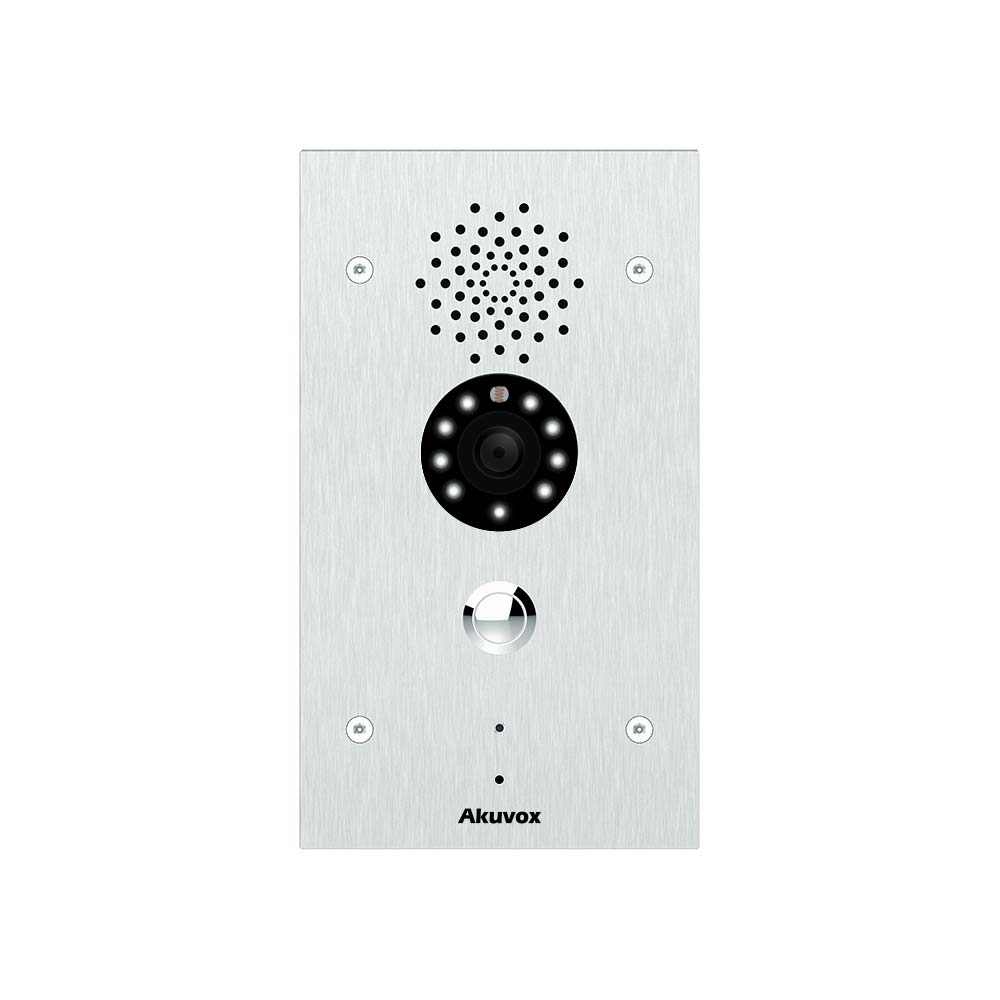

Akuvox E21 is a SIP emergency intercom with or without a camera. It is typically used in public space like parking lots.
Features
- Vandal resistant body, with a panic button
- Wide-angle camera: 116° (H), 60° (V)
- PoE (IEEE802.3af, Power-over-Ethernet)
- Two-way audio communication over IP networks with Echo Cancel feature
- Complies with SIP standard for easy integration in every SIP capable PBXes
- Complies with ONVIF standard for easy integration with any network surveillance system
Specifications
| Physical & Power | |
| Front panel | 316 grade stainless steel |
| Camera | 2M pixels, automatic lighting |
| Button | 1 panic button |
| Reset | 1 reset button (on board) |
| Light sensor | Support |
| Infrared sensor | Support |
| Relays out | 2 |
| Inputs | 2 |
| Microphone | -40dB |
| Speaker | 8Ω / 1.5W |
| Ethernet port | RJ45, 10/100Mbps adaptive |
| Power | 802.3af Power-over-Ethernet 12 ~ 48V DC input (if not using PoE) |
| Water-proof & Dust-proof | IP65 |
| Installation | Flush-mounted |
| Flush-mounted DIM | 210x120x61mm |
| Working Humidity | 10~90% |
| Working Temperature | -20°C ~ +55°C |
| Storage Temperature | -40°C ~ +70°C |
| Audio | |
| SIP | SIP v1 (RFC2543), SIP v2 (RFC3261) |
| Narrowband audio codec | G.711a, G.711μ, G.729 |
| Broadband audio codec | G.722 |
| DTMF | In-band, out-of-band DTMF (RFC2833),SIP Info |
| Echo Cancellation | |
| Voice Activation Detection | |
| Comfort Noise Generator | |
| Video | |
| Sensor | 1/2.7”, CMOS |
| Pixels | CIF, QCIF, VGA, 4CIF, 720p |
| Video codec | H.264, H.265 |
| Video resolution | up to 1920x1080p |
| Max. image transfer rate | 1080p – 30fps |
| Viewing angle | 116°(H) / 60°(V) |
| High intensity IR LEDs for picture lighting during dark hours with internal light sensor | |
| Compatible to 3rd-Party-Video components,e.g. NVRs | |
| Door Entry Feature | |
| Relays controlled individually by DTMF tones | |
| Camera permanently operational | |
| Auto-night mode with LED illumination | |
| White balance | auto |
| Minimum illumination | 0.1LUX |
| Networking & Protocol | |
| Protocols support | IPv4, HTTP, HTTPS, FTP,SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP,DHCP, ARP |
| Deployment & Maintenance | |
| Auto-Provisioning | |
| Web management portal | |
| Web-based packet dump | |
| Configuration backup / restore | |
| Entry log export | |
| Access table export / import | |
| Firmware upgrade | |
| System logs (include door access logs) | |
| Target Groups | |
| Education | universities, campuses, schools |
| Logistics & Transportation | airports, parking lots |
| Healthcare | hospitals, laboratories |
