Description

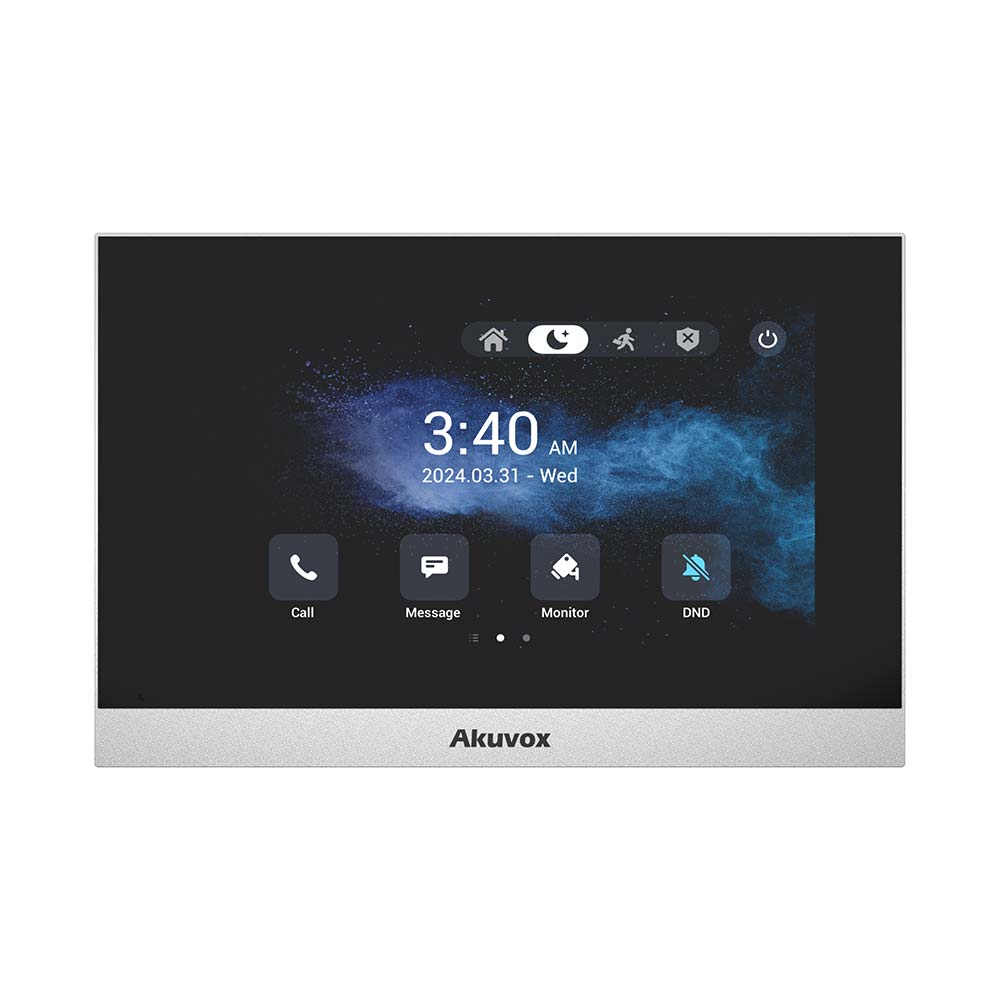

Akuvox C316 is a 7-inch SIP indoor monitor powered by Android 12 OS. Designed for the mid-range multi-residential housing market, it offers a host of smart living features.
Specifications
| Physical & Power | |
| Front panel | Plastic |
| OS | Android 12 |
| RAM / ROM | 2GB / 8GB |
| Display | 7 Inch TFT LCD |
| Screen | 7 Inch capacitive touch screen |
| RS485 port | Support |
| Relay out | 1 |
| Bell in | 1 |
| I/O | 8 |
| Microphone | -58dB |
| Speaker | 4Ω / 2W |
| Ethernet ports | 2xRJ45, 10/100Mbps adaptive |
| 802.3af Power-over-Ethernet | |
| 12V DC connector (if not using PoE) | |
| Installation | Wall-mounted & Desktop |
| Dimension | 200.2×132.2×27.2mm |
| Working Humidity | 10~90% |
| Working Temperature | -10°C ~ +45°C |
| Storage Temperature | -20°C ~ +70°C |
| Touch Screen Display | |
| Display Mode | Normally white, Transmissive |
| LCD Size | 7inch (Diagonal) |
| Resolution | 1024×600 |
| Contrast ratio | 800 |
| Luminance | 270 cd/m² |
| Viewing Angle | 75° Left, 75° Right, 70° Upper, 75° Lower |
| Touch Screen | Projected capacitive |
| Audio | |
| SIP v1 (RFC2543), SIP v2 (RFC3261) | |
| Narrowband audio codec | G.711a, G.711μ, G.729 |
| Broadband audio codec | G.722 |
| DTMF | In-band, out-of-band DTMF (RFC2833), SIP Info |
| Echo Cancellation | |
| Voice Activation Detection | |
| Comfort Noise Generator | |
| Automatic Gain Control | |
| Video | |
| Streaming formats | H.263 & H.264 |
| Networking | |
| Protocols support | IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP |
| Deployment & Maintenance | |
| Auto-Provisioning | |
| Web management portal | |
| Web-based packet dump | |
| Configuration backup / restore | |
| Firmware upgrade | |
| System logs (include door access logs) | |
| Application Scenario | |
| Villas | |
| Apartment complexes | |
| Home automation systems | |
| Modern interiors | |
