Description

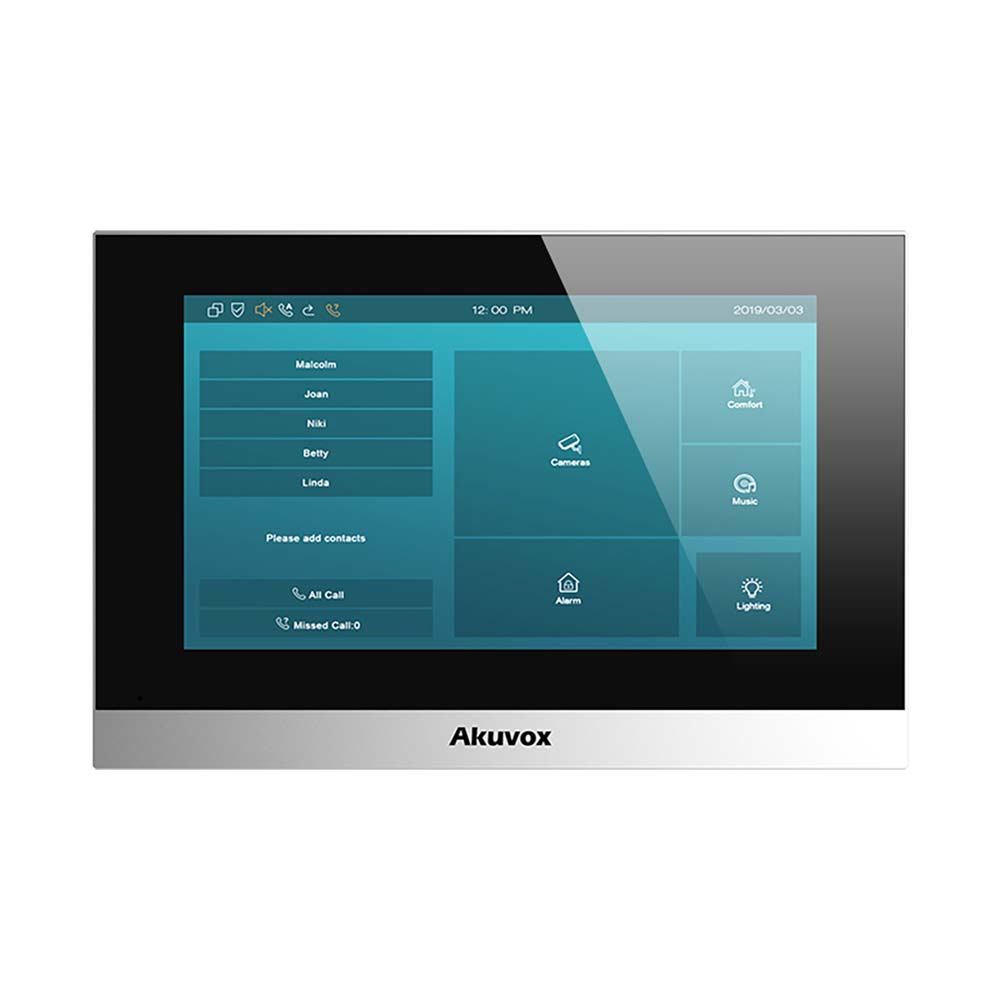

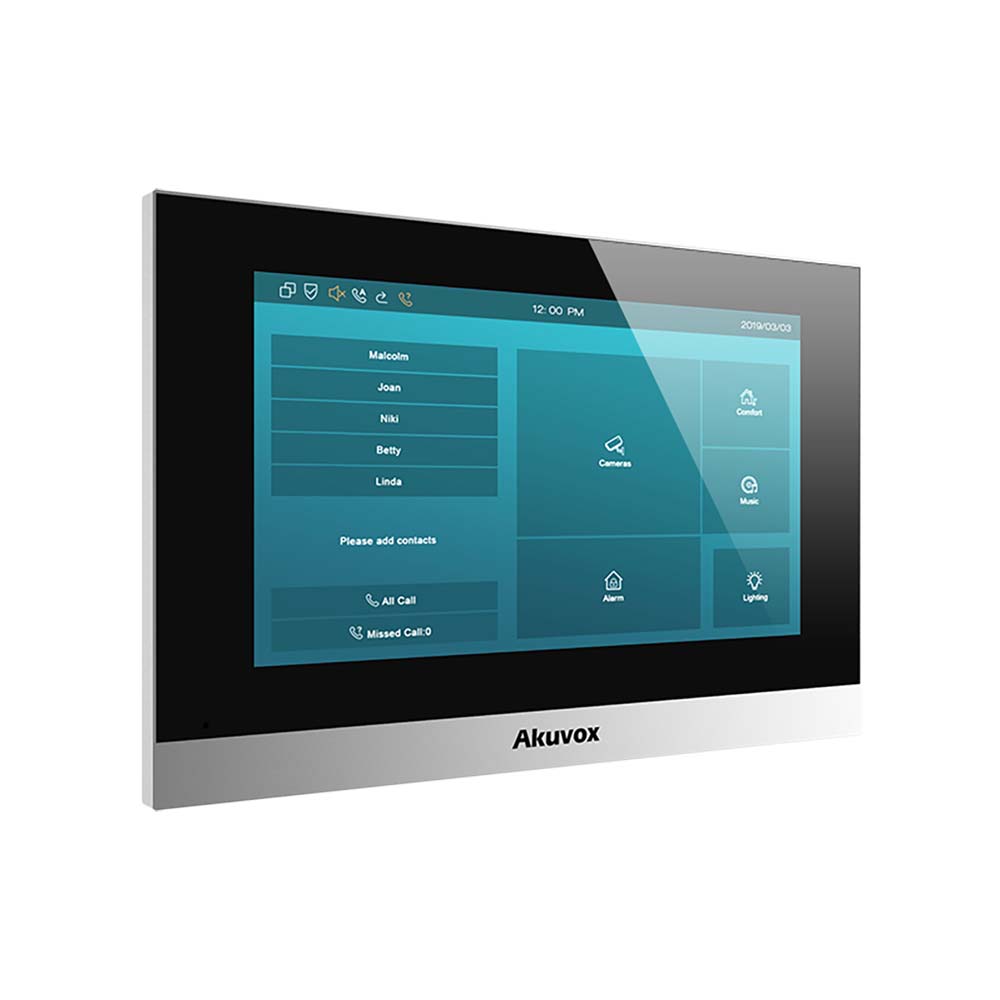

Akuvox C313 is a 7″ indoor monitor. Its slim body fits into limited space and offers a fat stack of features. It is typically used in apartments.
Specifications
| At a Glance | |
| Ultra-clear, stylish appearance | |
| Thin profile and small footprint | |
| 7-inch capacitive touch screen with energy saving mode | |
| Two-way audio communication with other units in the network | |
| Complies with SIP standard for easy integration in every SIP capable PBXes | |
| Powered by PoE or external source | |
| Support US or European electrical wall box mounting | |
| Physical & Power | |
| Front panel | Plastic |
| RAM / ROM | 64MB / 128MB |
| Display | 7 Inch TFT LCD |
| Screen | 7 Inch capacitive touch screen |
| Wi-Fi | IEEE802.11 b/g/n, @2.4GHz |
| RS485 port | Support |
| Relay out | 1 |
| Bell in | 1 |
| I/O | 8 |
| Microphone | -58dB |
| Speaker | 4Ω / 2W |
| Ethernet ports | 2xRJ45, 10/100Mbps adaptive |
| 802.3af Power-over-Ethernet | |
| 12V DC connector (if not using PoE) | |
| Installation | Wall-mounted & Desktop |
| Dimension | 200.2 × 132.2 × 27.2 mm |
| Working Humidity | 10~90% |
| Working Temperature | -10°C ~ +45°C |
| Storage Temperature | -20°C ~ +70°C |
| Touch Screen Display | |
| Display Mode | Normally white, Transmissive |
| LCD Size | 7inch (Diagonal) |
| Resolution | 800×480 |
| Contrast ratio | 500 |
| Luminance | 220 cd/m2 |
| Viewing Angle | 50° Left, 50° Right, 40° Upper, 50° Lower |
| Touch Screen | Projected capacitive |
| Audio | |
| SIP v1 (RFC2543), SIP v2 (RFC3261) | |
| Narrowband audio codec | G.711a, G.711μ, G.729 |
| Broadband audio codec | G.722 |
| DTMF | Out-of-band DTMF (RFC2833), SIP Info |
| Echo Cancellation | |
| Video | |
| Streaming formats | H.264 |
| Networking | |
| Protocols support | IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Deployment & Maintenance | |
| Auto-Provisioning | |
| Web management portal | |
| Web-based packet dump | |
| Configuration backup / restore | |
| Firmware upgrade | |
| System logs (include door access logs) | |
| Application Scenario | |
| Villas | |
| Apartment complexes | |
| Home automation systems | |
| Modern interiors | |
