Description

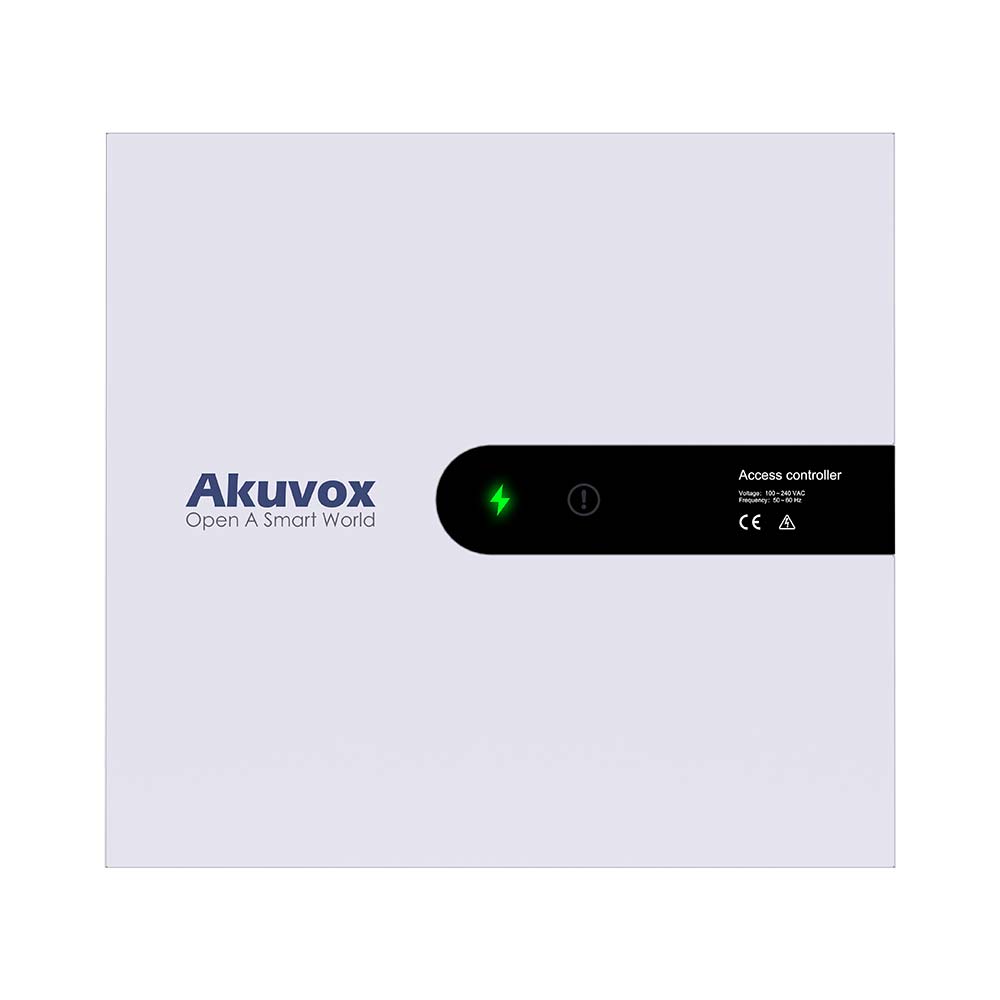

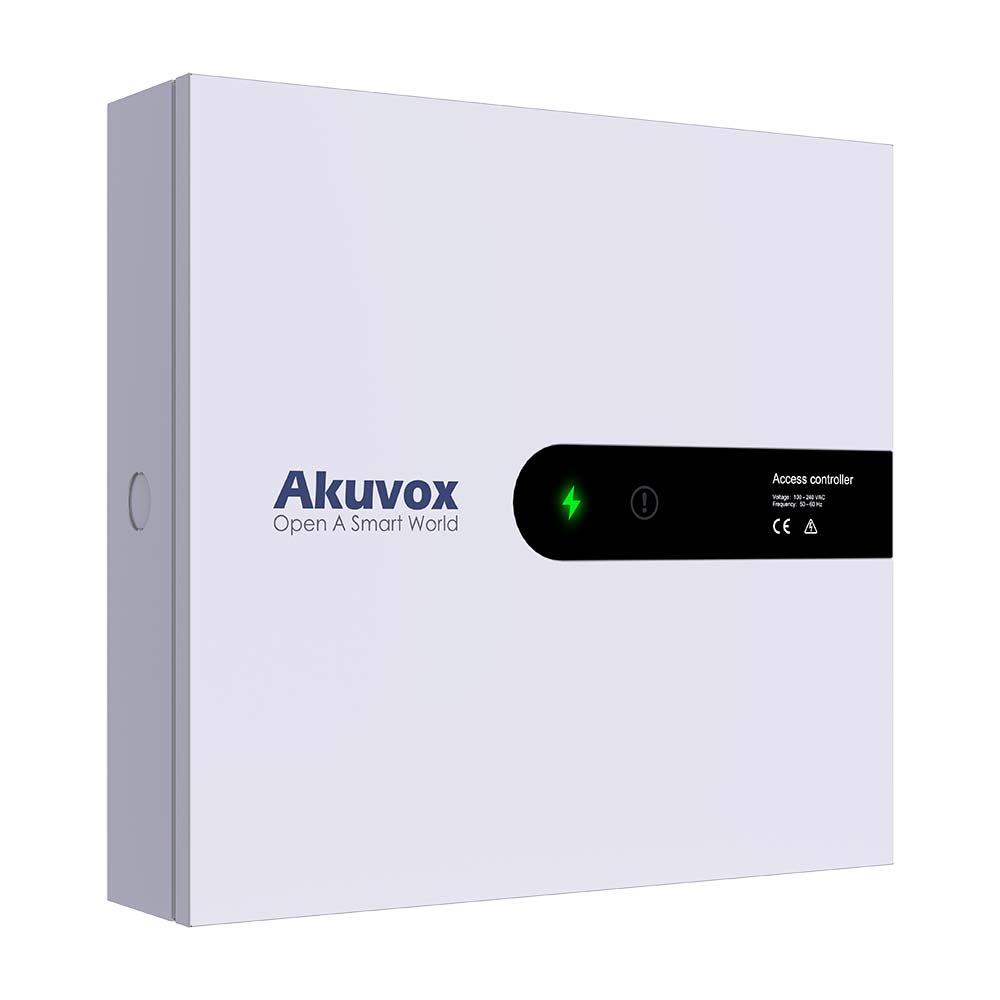

Akuvox A094 is an intelligent access controller housed in a stylish SGCC cabinet. It provides the advantages of access control of four doors over a centralized system. Supporting standalone and networked deployment, it can be applied to projects of various scales.
Features
- Supports up to 50,000 users
- Supports RS485 and Wiegand protocols
- Tamper-proof sensor
- Supports up to 4 readers and 4 doors access control
- Access scheduling
- Emergency door release
Specifications
| Physical & Power | |
| Front panel | SGCC |
| Power input | 100 ~ 240 VAC / 1.5 A 50 / 60 Hz |
| Wiegand port | 4 |
| Relays out | 8 |
| Input | 13 |
| RS485 port | 4 |
| Power output | 4 |
| Ethernet port | RJ45, 10/100 Mbps, adaptive |
| Tamper proof alarm | Support |
| Status lights | Support |
| Backup battery | Support |
| Installation | Wall-mounted |
| Dimension | 365 x 340 x 85 (mm) |
| Working Humidity | 10%~90% |
| Working Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Door Entry Feature | |
| 50,000 user storage | |
| Anti-pass back function | |
| Multi-door interlock function | |
| Access table export & import | |
| Access level management | |
| Door access logs query and export | |
| Card Readers | |
| Support Wiegand 26/34/58 readers | |
| Support RS485 readers | |
| Networking | |
| Protocols support | IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, TCP, UDP, TLS, ICMP, DHCP, ARP |
| Deployment & Maintenance | |
| Auto-Provisioning | |
| Web management portal | |
| Web-based packet dump | |
| Configuration backup / restore | |
| Firmware upgrade | |
| System logs | |
