Description

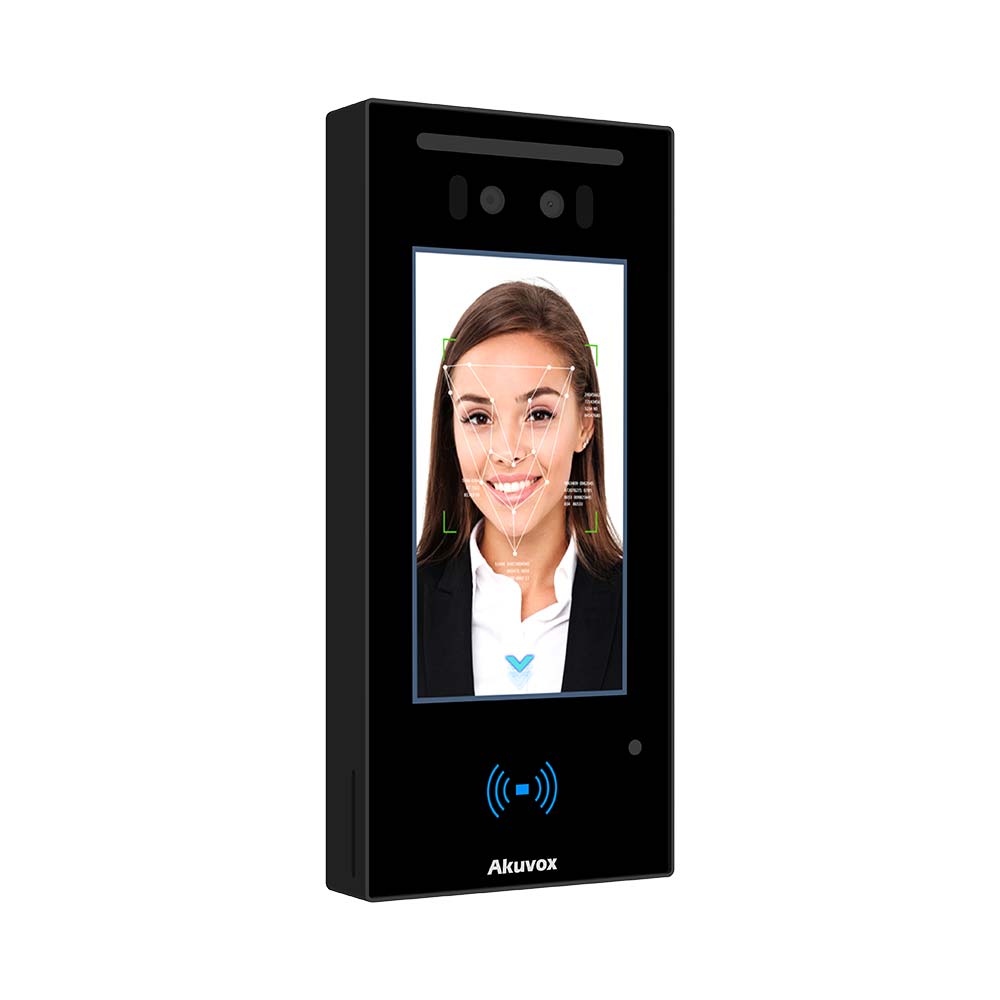

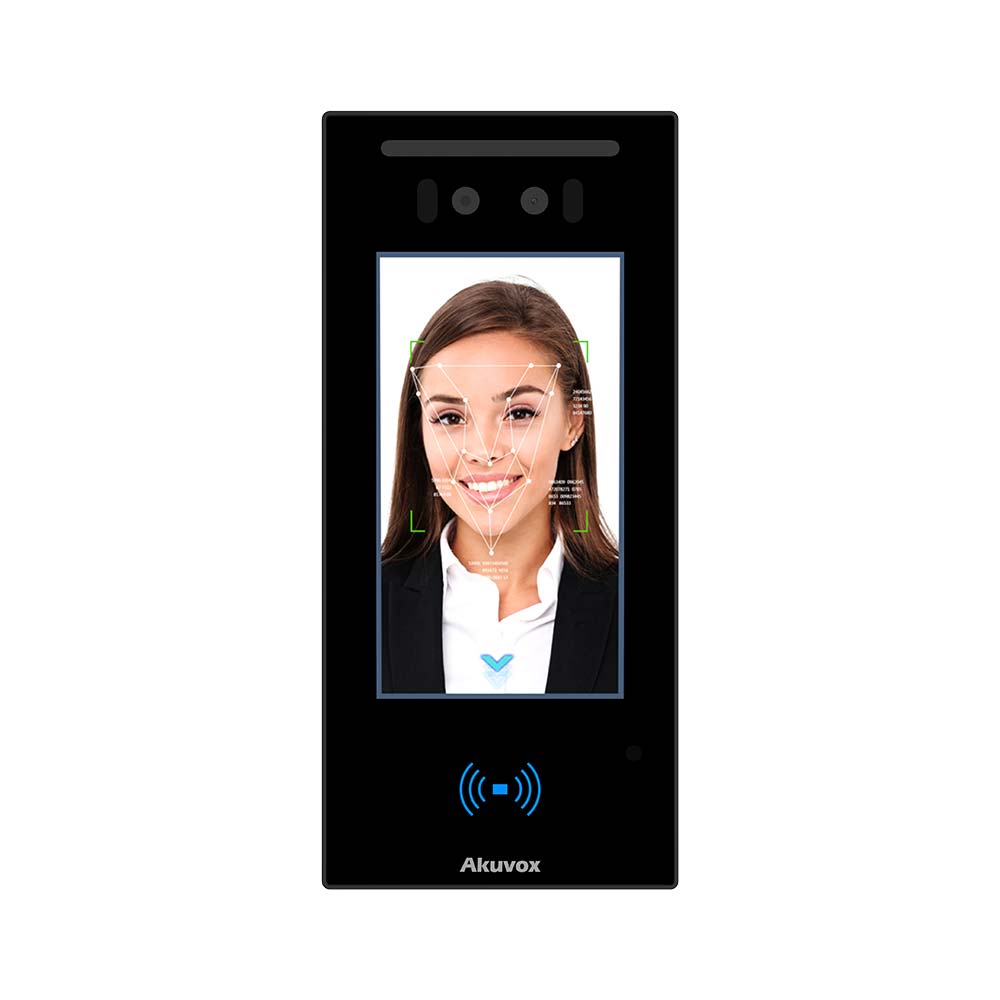

A05 is a commercial-grade access control terminal, which offers fast, safe and convenient access control via AI-powered face recognition, mobile app, NFC, or QR codes. It is typically used in commercial and residential applications.
Features
- 1 x Output Relay for Door Opener
- Wiegand & RS485
- Supports up to 20,000 Faces, and up to 20,000 Cards
- Card Reader: 13.56 MHz and NFC
Specifications
| At a Glance | |
| Visible light facial recognition; | |
| Better hygiene with touchless biometric authentication, fever and mask detection; | |
| Anti-spoofing algorithm against photo and video attack; | |
| 20,000 face capacity & 20,000 card capacity; | |
| Face recognition duration less than 0.2s/user, face recognition accuracy rate greater than 99.7%; | |
| Multiple verification methods including | Face, 13.56 MHz Cards, NFC, Bluetooth, and QR codes |
| Stand-alone operation | |
| Configuration via web browser | |
| Physical & Power | |
| Housing Material | Plastic |
| Display | 5 Inch IPS LCD, 1280×720 |
| Camera | 2M pixels, WDR |
| Wiegand Port | Support |
| RS485 Port | Support |
| RF Card Reader | 13.56MHz, NFC |
| Relay In / Out | 1 / 1 |
| Ethernet Port | RJ45, 10/100Mbps adaptive |
| 802.3af Power-over-Ethernet | |
| 12V DC Connector (if not using PoE) | |
| Tamper | Support |
| Installation | Wall-mounted |
| IP Level | IP65 |
| Working Humidity | 10~90%, no condensing |
| Working Temperature | -20℃~+60℃ |
| Identification | |
| Identification Mode | Face, RFID Card, QR code |
| Identification Speed | ＜200ms |
| Capacity | |
| Face Capacity | 20,000 |
| Card Capacity | 20,000 |
| Event Log | 50,000 |
