Description

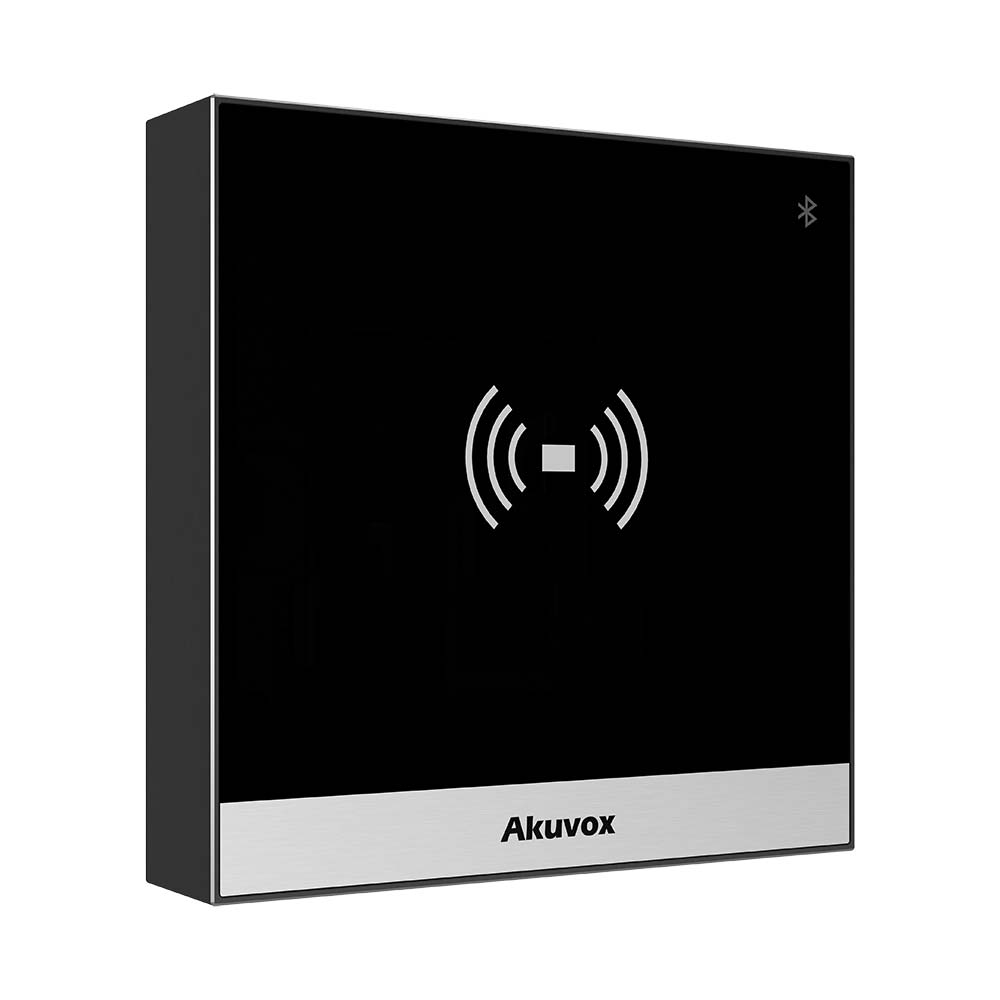

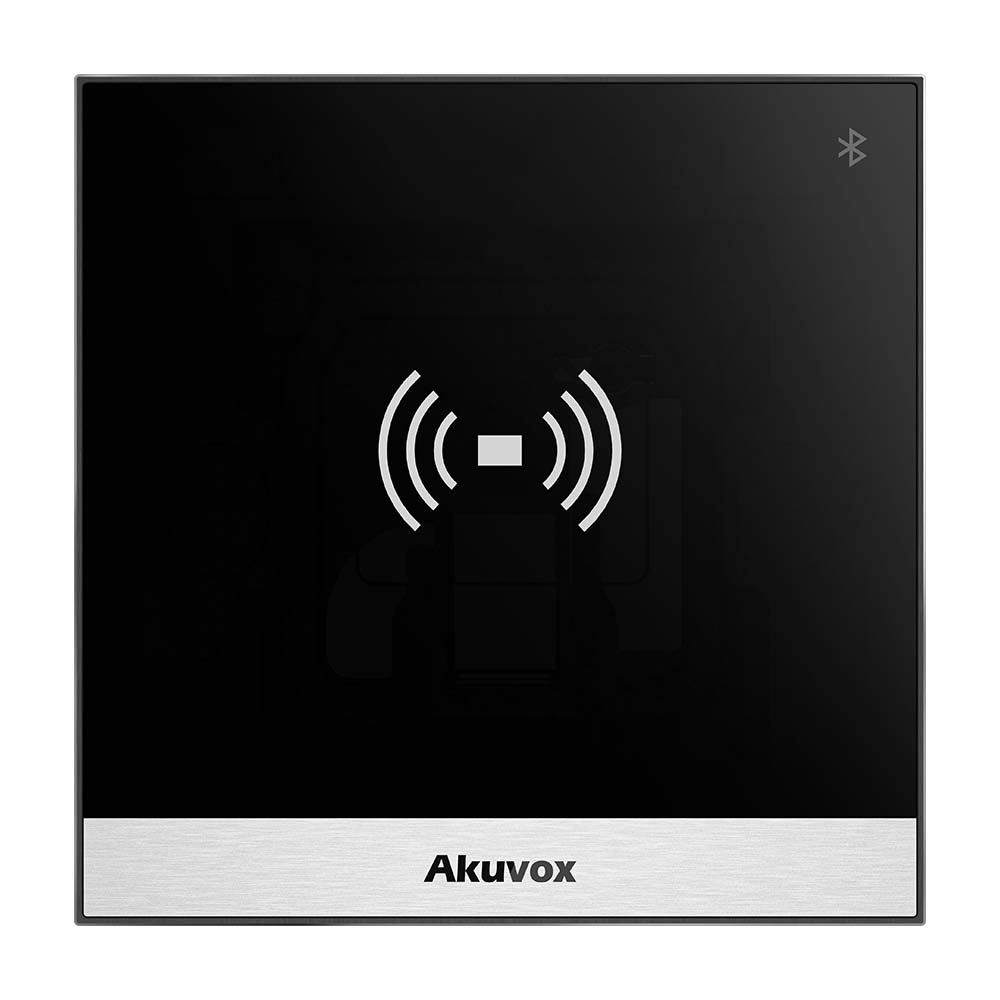

A03S is an IP-based access control terminal combining a reader and a door controller. It offers flexible credentials, including wave-to-unlock via Bluetooth, mobile access via NFC, and RFID cards.
Features
- Card Reader: BLE 5.0, NFC, and 125 kHz and 13.5 MHz Cards
- Output Relay for Door Opener
- Interface: Wiegand x 1, Input Port x 2
- Supports up to 20,000 Cards
- 802.3af PoE
- Tamper-proof Alarm
- IP65 Ingress Protection
Specifications
| Physical & Power | |
| Front panel | Toughened Glass |
| Frame | Aluminum Alloy |
| RFID card reader | 13.56MHz & 125kHz |
| Bluetooth | BLE5.0 |
| Relay out | 1 |
| Inputs | 2 |
| Wiegand | Support |
| Speaker | 8Ω / 0.5W |
| Tamper proof alarm | Support |
| Ethernet port | RJ45, 10/100Mbps adaptive |
| 802.3af Power-over-Ethernet | |
| 12V DC connector (if not using PoE) | |
| Power output | 12V 600mA |
| IP Level | IP65 |
| Installation | Flush-mounted or Wall-mounted |
| Dimension | 86 x 86 x 33 mm |
| Working Humidity | 10~90%，no condensing |
| Working Temperature | -20°C ~ +55°C |
| Storage Temperature | -30°C ~ +70°C |
| Capacity | |
| User Capacity | 20,000 |
| Card Capacity | 20,000 |
| Event Log | 100,000 |
| Deployment & Maintenance | |
| Auto-Provisioning | |
| Web management portal | |
| Web-based packet dump | |
| Configuration backup / restore | |
| Firmware upgrade | |
| System logs | |
| Networking | |
| Protocols support | IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Door Entry Feature | |
| Access schedule export/import | |
| Access level management | |
| Support switch to reader mode | |
| Door access logs query and export | |
| Flexible shift scheduling and attendance | |
| management | |
