Description

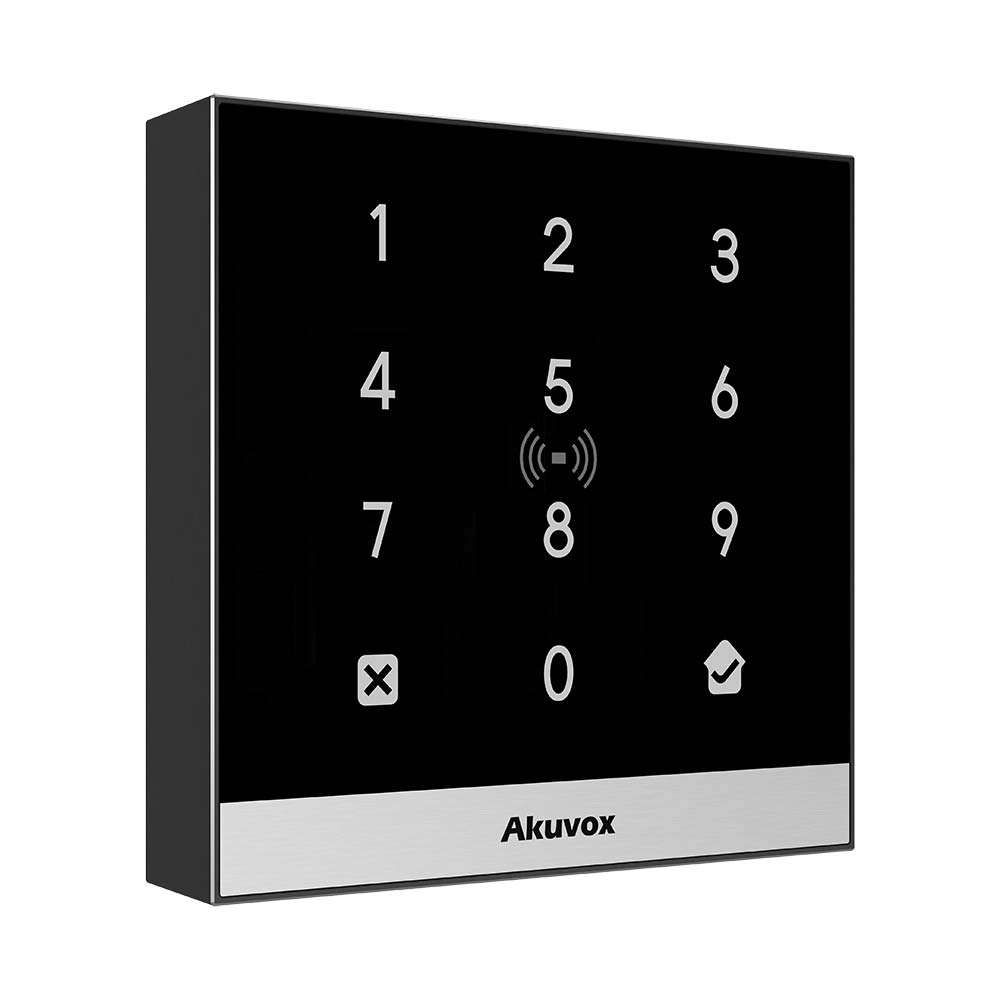

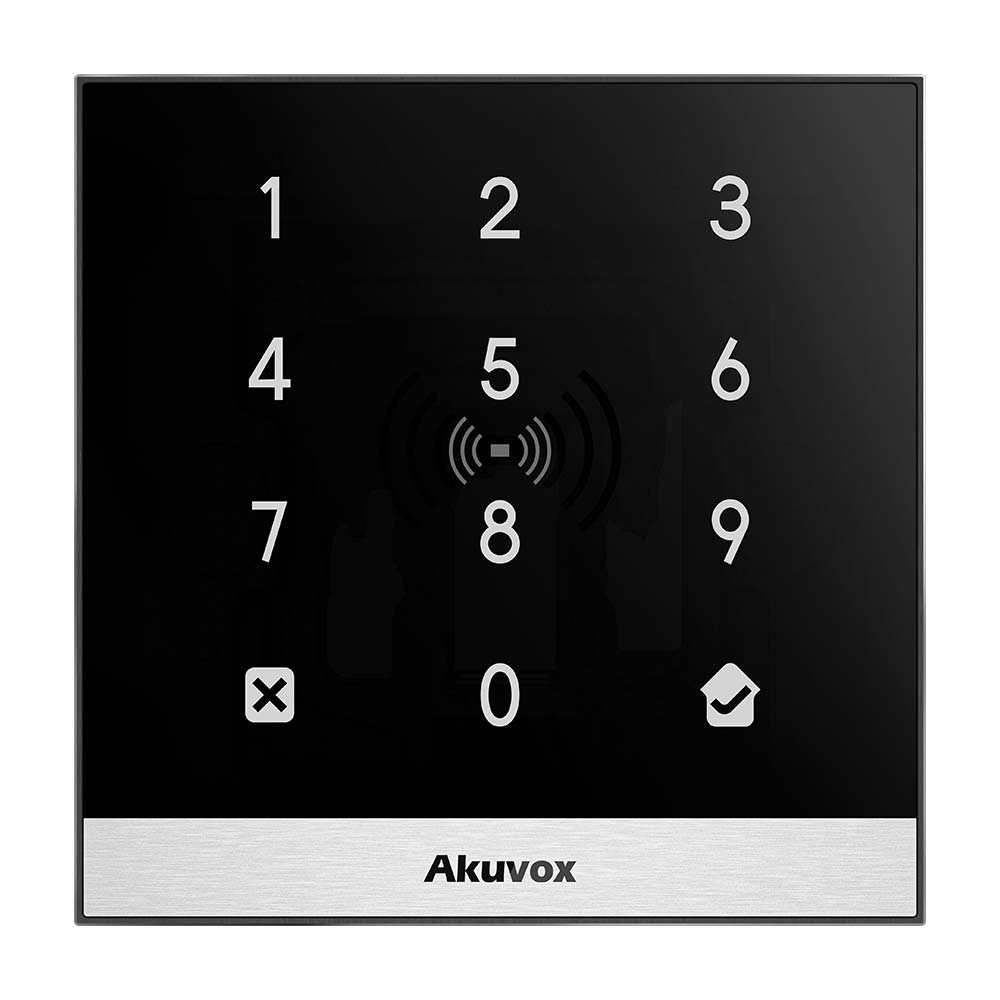

A02 is an IP-based access control terminal that combines door controller and card reader in one device. It supports PIN codes, RFID cards, and mobile access via NFC, offering users flexibility in credentials options.
Features
- Touch Keypad
- Card reader: 125 kHz and 13.5 MHz RFID cards and NFC
- TCP/IP
- Supports up to 20,000 Cards
- 802.3af PoE
- Tamper-proof Sensor
- IP65 Ingress Protection
Specifications
| Physical & Power | |
| Front panel | Touch Keypad |
| Frame | Aluminum Alloy |
| RFID card reader | 13.56MHz & 125kHz |
| Relay out | 1 |
| Inputs | 2 |
| Wiegand | Support |
| Speaker | 8Ω / 0.5W |
| Tamper proof alarm | Support |
| Ethernet port | RJ45, 10/100Mbps adaptive |
| 802.3af Power-over-Ethernet | |
| 12V DC connector (if not using PoE) | |
| Power output | 12V 600mA |
| IP Level | IP65 |
| Installation | Flush-mounted or Wall-mounted |
| Dimension | 86 x 86 x 33 mm |
| Working Humidity | 10~90%，no condensing |
| Working Temperature | -20°C ~ +55°C |
| Storage Temperature | -30°C ~ +70°C |
| Capacity | |
| User Capacity | 20,000 |
| Card Capacity | 20,000 |
| Event Log | 100,000 |
| Deployment & Maintenance | |
| Auto-Provisioning | |
| Web management portal | |
| Web-based packet dump | |
| Configuration backup / restore | |
| Firmware upgrade | |
| System logs | |
| Networking | |
| Protocols support | IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Door Entry Feature | |
| Access schedule export/import | |
| Access level management | |
| Supports switch to reader mode | |
| Door access logs query and export | |
| Flexible scheduling and attendance management | |
