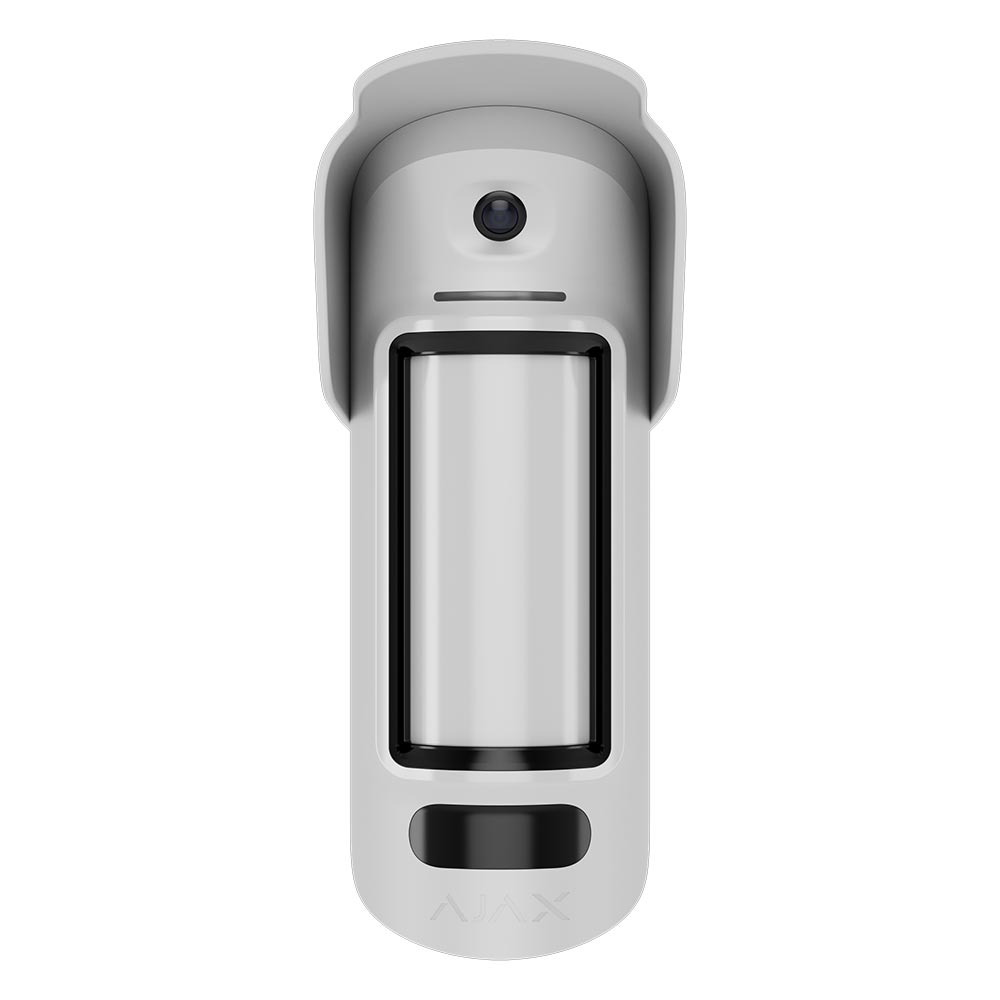

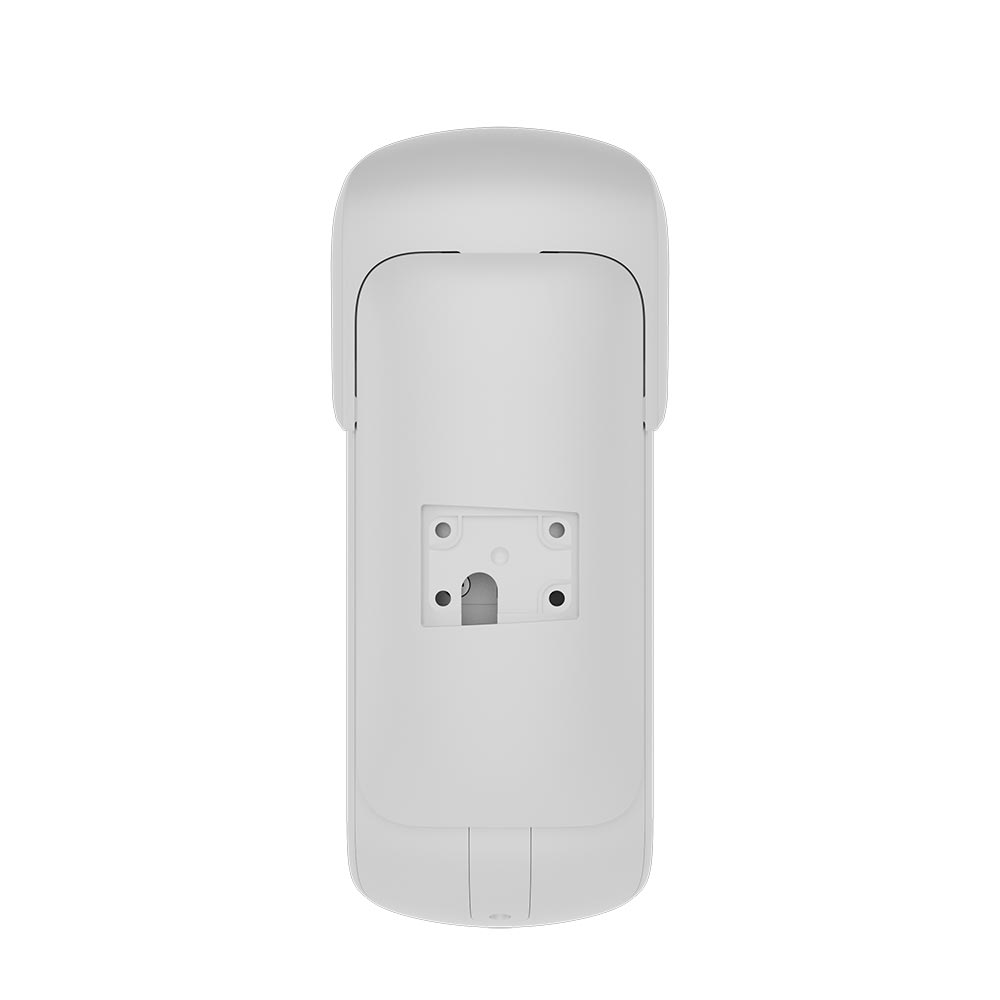

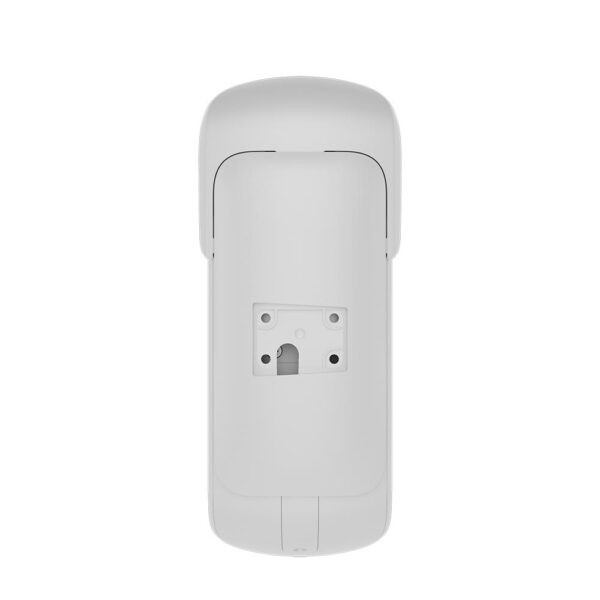

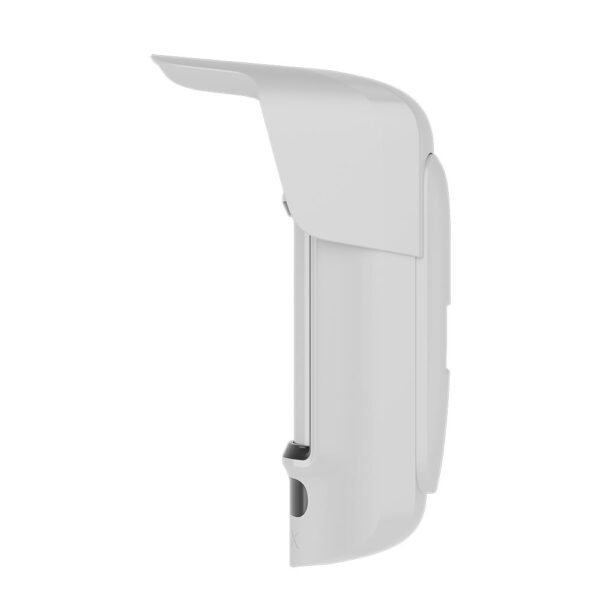

Ajax MotionCam Outdoor HighMount PhOD

Sensitive elements

2 × PIR sensor

1 × K-band microwave sensor

Operating frequency: 24 GHz.

Motion detection distance

Up to 15 m when installed at a height of 2–4 m.

Depends on the sensitivity level adjusted in the device settings.

Motion detection angle

horizontal: 90°

Motion detection speed

from 0.3 to 2.0 m/s

The direction of the detector sensors should be perpendicular to an alleged intrusion path into the facility.

Sensitivity

3 levels

Adjusted by a PRO or a user with admin rights in Ajax apps.

False alarm prevention

SmartDetect Software algorithm.

Temperature compensation

Effective movement detection in temperatures from −25 °C to +60 °C.

Photo by Alarm

The built-in camera is activated if the detector is armed and movement is detected.

Photo on Demand

A user takes pictures at any time or when the detector is armed (depending on settings). The feature is disabled by default.

Photo by Scenario

The detector takes pictures automatically when other Ajax detectors are triggered. The feature is not configured by default.

Photo by Schedule

The detector automatically takes photos at the specified time. The feature is not configured by default.

Photo by arming/disarming

The detector automatically takes photos when the security state is changed.

Adjustable photo resolution

640 × 480 px

320 × 240 px (default)

Adjusted by a PRO or a user with admin rights in Ajax apps.

Camera viewing angles

horizontal: 115° vertical: 84°

IR backlight

For night photography and low light conditions.

Series of pictures

from 1 to 5 images with a resolution of 320 × 240 px

from 1 to 3 images with a resolution of 640 × 480 px

Adjusted by a PRO or a user with admin rights in Ajax apps.

Photo delivery time

up to 9 s for 320 × 240 px resolution

up to 20 s for 640 × 480 px resolution

Photo delivery time depends on the image resolution selected in the device settings.

It is recommended to install the detector at a height of 2–4 m.

The pet immunity feature is not available for this device.

The device is designed for outdoor and indoor use.

Tamper alarm

Notifications of attempts to remove the detector from the mounting panel.

Magnetometer

detects attempts to tilt or shift the detector or detach it from the surface

Anti-masking system

detects attempts to block the detector view

Holding screw

secures the device on SmartBracket

Protection against spoofing

device authentication

Communication loss detection

after 36 s Detection time depends on the Jeweller/Fibra settings.

Battery

6 × CR123A

Pre-installed.

Type

type C

Calculated battery life

up to 3 years

Detector operating voltage range

3.8−6.5 V⎓

Detector nominal operating voltage

6 V⎓

Quiescent detector current consumption at nominal voltage

45 μA

Maximum detector current consumption at nominal voltage

1,200 mA

Full battery capacity

4,800 mAh

Low battery voltage

4.2 V⎓

Low battery recovery voltage

5.0 V⎓

End-of-life battery voltage

3.8 V⎓

The device is switched off.

End-of-life battery capacity

300 mAh

Dimensions with the swivel mount

234 × 98 × 230 mm

Dimensions without the swivel mount

234 × 98 × 137 mm

Weight with the swivel mount

1,010 g

Weight without the swivel mount

620 g

Operating temperature range

from −25 °C to +60 °C

Operating humidity

up to 95%

Protection class

IP55
