Description
Protecting facilities lacking electricity
With an alternative 12-24 V⎓ power supply unit, an Ajax hub or a range extender can operate on a low-voltage power source instead of a normal power grid. This setup is ideal for protecting properties with unstable or no mains power.
Typical use cases
In warehouses: To protect premises with unstable or no electricity, connect the hub or range extender to a low-voltage or uninterruptible power supply using 12-24V PSU.
In a truck or trailer: Connect the Ajax hub to a portable or car battery, and the system will keep the driver, property, and cargo safe.
On a yacht: Insert a SIM card and connect the hub to the onboard network or battery, and the Ajax system will guard your yacht at the pier.
Compatibility
The lack of electricity ceases to be a problem since the 12-24V PSU allows connecting the Ajax hub or radio signal range extender to a low-voltage power source instead of a normal power grid. This ensures the object’s protection for years and opens up numerous opportunities to use Ajax systems everywhere professional security is required.
12-24V PSU (type A) is compatible with:Â
- Hub (4G) Jeweller
- Hub 2 (2G) Jeweller
- Hub 2 (4G) Jeweller
- Hub 2 Plus Jeweller
- ReX 2 Jeweller
Installation

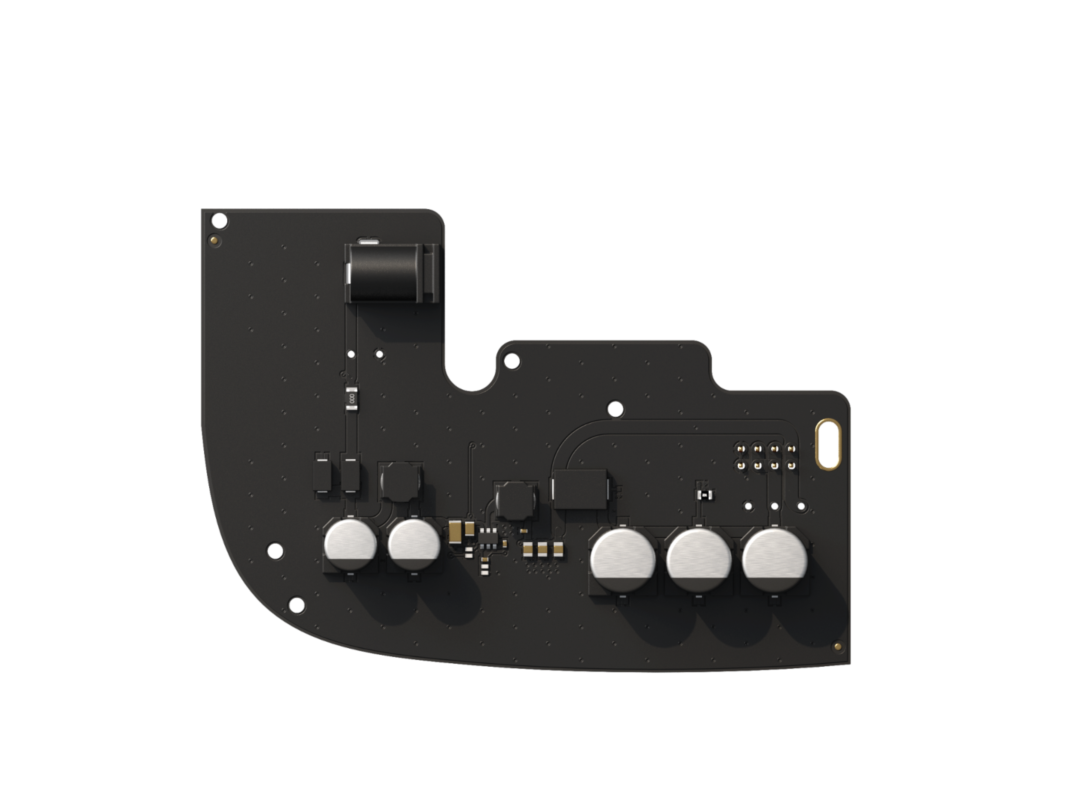

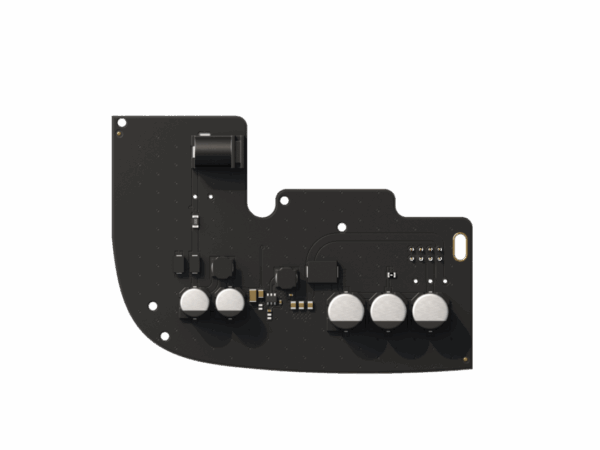

12-24V PSU is installed inside the device enclosure instead of the standard 110/230 V~ power supply unit. It has a standard jack plug to connect the power cable and includes a terminal adapter in the complete set. An installer only needs a screwdriver and a few minutes to switch the pre-installed power supply unit to 12-24V PSU.
