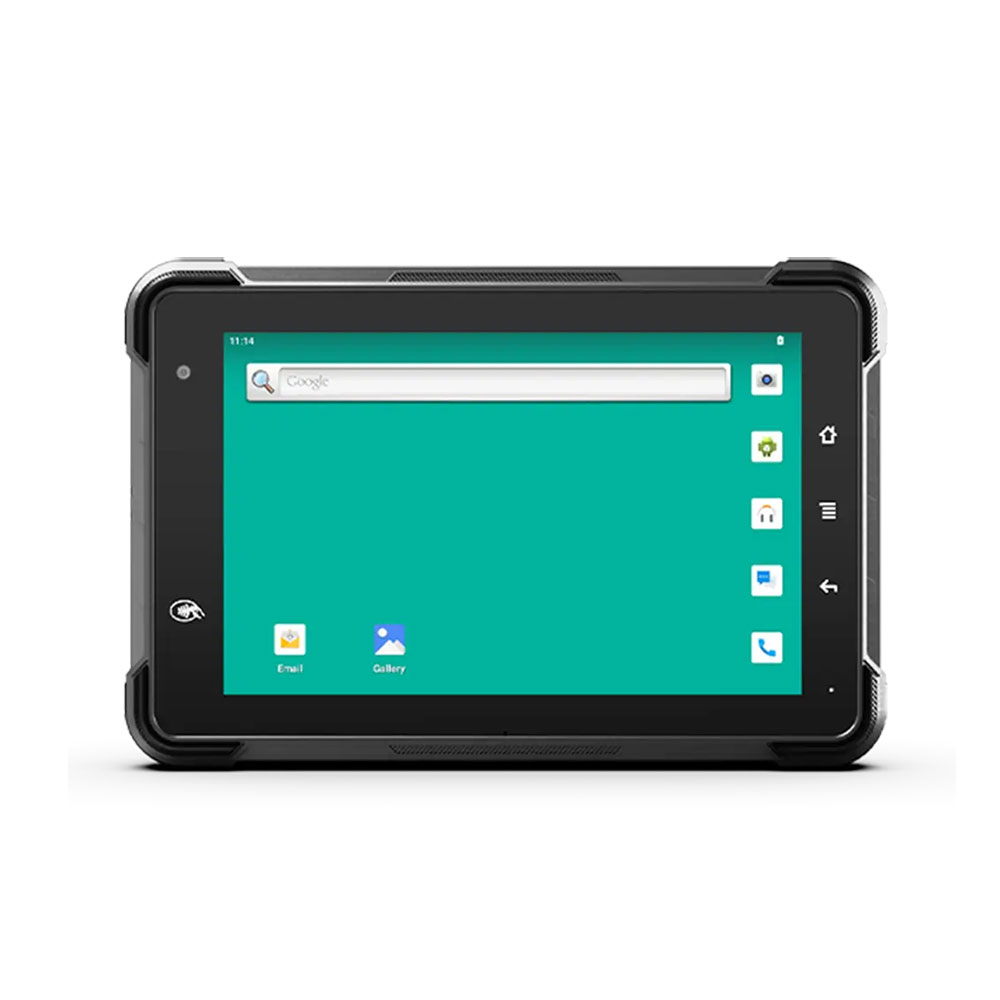

7-Inch Rugged Android Monitor
VT7RAM

7-Inch Rugged Android Monitor

7 Inch Rugged Android Tablet with Multi-channels AHD Camera Inputs

Categories: , , Brand:
Viewtech

Description

Features
  • Operating System: Powered by Android 13 for stable performance and broad application compatibility.
  • Connectivity & Navigation: Features built-in LTE CAT4, Wi-Fi, Bluetooth, NFC, and 4-system satellite tracking (GPS, GLONASS, BDS, Galileo).
  • High-Brightness Display: 7-inch, 1000-nit screen designed for clear visibility in direct sunlight.
  • Rugged Build: Rated IP67 and certified to MIL-STD-810H standards for dust, water, and harsh environment resistance.
  • Video Surveillance (Optional): Supports AHD 720P/1080P video inputs with real-time preview, recording, configurable GPIO display switching, and micro SD expansion up to 1TB. Requires software development.
  • Power Efficiency: Includes a fast-wake sleep mode to minimize battery consumption when idle.
  • Wide Operating Temperature: Operates in temperatures from -20°C to 65°C.
  • Rich Functional Interfaces: Includes RS232, USB, ACC, LAN, and CANBUS ports, alongside two customizable function buttons.
  • Vehicle Power Protection: Accepts DC 8–36V wide voltage input and complies with ISO 7637-II standards to withstand vehicle surges up to 174V (350ms).
System
CPU Qualcomm Octa-core, 4×A73, 2.0GHz and 4×A53, 1.8GHz
GPU Adreno 610
OS Android 13
RAM LPDDR4 4GB (default)/8GB (optional)
Storage eMMC 64G (default)/128GB (optional)
Functional Module
LCD 7 Inch, 1280× 800, 1000 nits
Screen Multi-point Capacitive Touch Screen
Audio Integrated microphone
Integrated speaker 2W
Sensor Acceleration, Gyro sensor, Compass, Ambient light sensor
Button Power button×1; Customizable buttons×2
Camera Front: 5.0 megapixel camera
On Tablet Interface
USB Type-C Type-C3.1, USB-charge not supported.
Micro SD Slot Micro SD card slot×1, support up to 1TB
SIM Slot Nano SIM card slot×1
Earphone Jack 3.5mm headphone jack compliant with CTIA standard
Extended Cable
Serial Port ×2
RS485 ×1
CANBUS CANBUS_1 ×1
GPIO GPIO Input ×3, GPIO Output ×3
ACC ×1 (0-36V)
RJ45 ×1 (100 Mbps)
Power Input ×1 (8-36V), the system can read the power input voltage.
Power Output ×1 (8-36V), power input loops out power output, max-current 1A, controlled by system
USB TYPE-A USB-A 2.0×1 (Type-A and Type-C can not be used simultaneously)
Video Input ×4, AHD 720P/1080P, PAL/NTSC, with 12V 500mA output for AHD camera power.
GPIO Input ×6
Communication
GNSS GPS/GLONASS/BDS/Galileo/QZSS, Internal Antenna
2G/3G/4G US Version: LTE FDD: B2/B4/B5/B7/B12/B13/B14/
B17/B25/B26/B66/B71
LTE-TDD: B41, Internal Antenna; SMA Antenna (optional)
EM Version: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE TDD: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B8
GSM: 850/900/1800/1900 MHz, Internal Antenna.
WLAN 802.11a/b/g/n/ac; 2402~2482 MHz, 5180~5825 MHz, Internal Antenna.
Bluetooth 2.1 + EDR/ 3.0/ 4.1 LE/ 4.2 BLE/ 5.0 LE, Internal Antenna;

NFC

 Operates at 13.56MHz (HF)
ISO/IEC 14443A, ISO/IEC 14443B PICC mode
ISO/IEC 14443A, ISO/IEC 14443B PCD mode
designed according to NFC Forum
digital protocol T4T platform and ISO-DEP
FeliCa PCD mode
MIFARE PCD encryption mechanism (MIFARE 1K/4K)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
NFCIP-1, NFCIP-2 protocol
NFC Forum certification for P2P, reader and card mode
FeliCa PICC mode
ISO/IEC 15693/ICODE VCD mode
NFC Forum-compliant embedded T4T for NDEF short record
Physical Characteristics
Power DC8-36V (ISO 7637-II compliant)
Battery 3.7V, 2800mAH removable battery
Dimensions 210.2×140.2×42.3mm (W×H×D)
Weight 885g
Environmental Reliability
IP Rating IP67 (IEC 60529)
Vibration Test MIL-STD-810H
Operating Temperature -20 ~ 65°C
Storage Temperature -30 ~ 75°C
