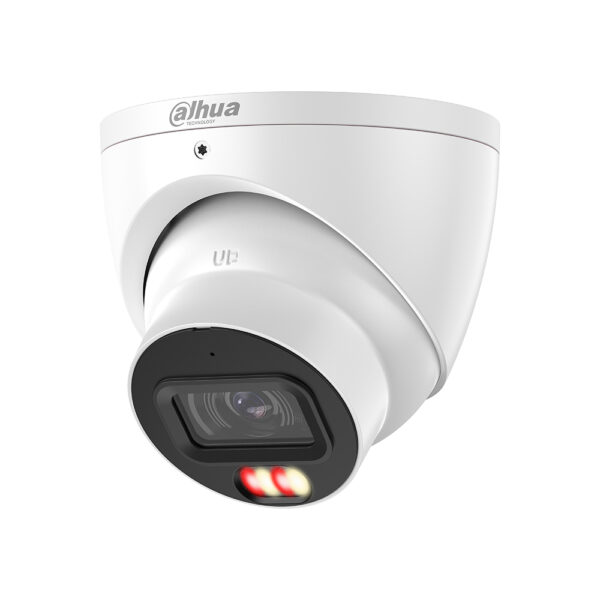

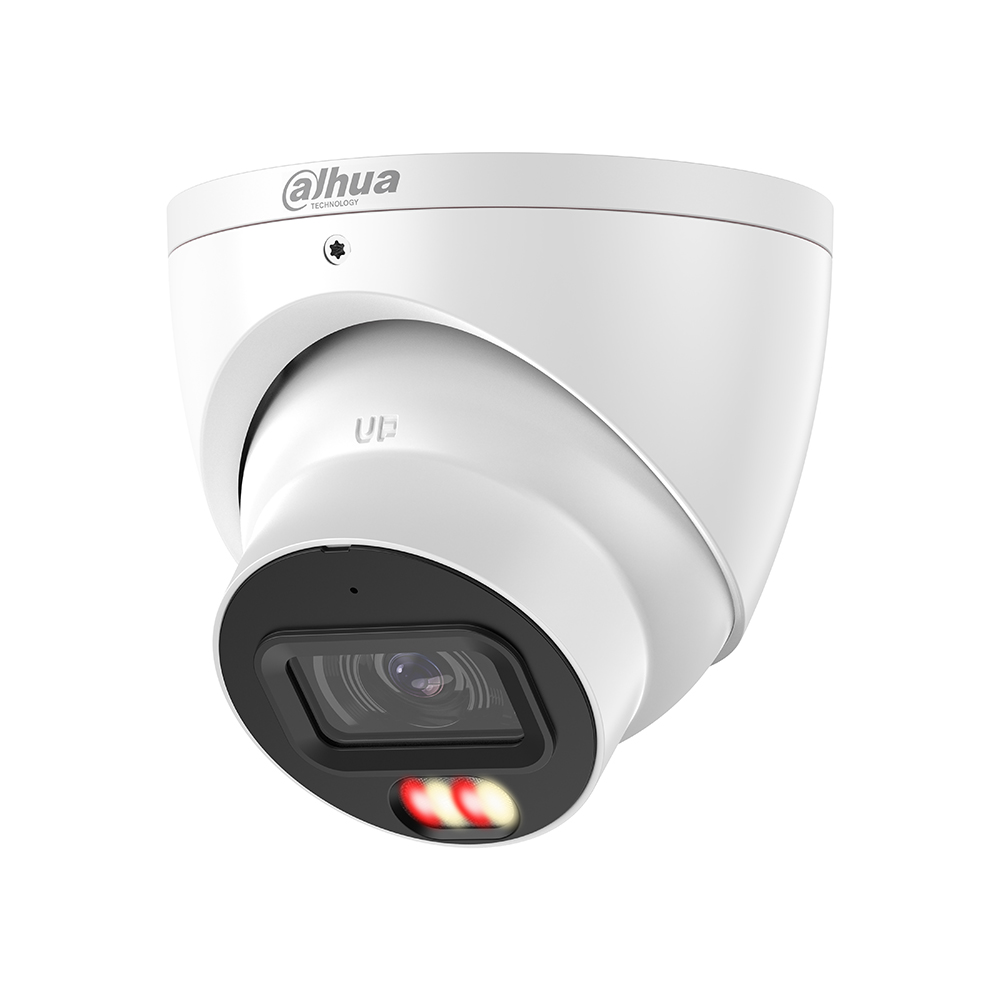

6-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
Outputs max. 6 MP (3288 ×1850)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 512 G Micro SD card; built-in Mic.
12 VDC/PoE power supply.
IP67 protection.
SMD 4.0.
Supports AI SSA.
SMD area can be set in warm light areas that support triggering alarms.
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection)
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD
SMD 4.0
AcuPick
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
AI SSA
Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Smart Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
AI Coding
AI H.265; AI H.264
*includes SmartCodec Technology，Smart H.264+ /H.265+
Video Frame Rate
Main stream: 3288 × 1850@(1–25/30 fps)
Sub stream: 1920 × 1080@(1–25/30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
